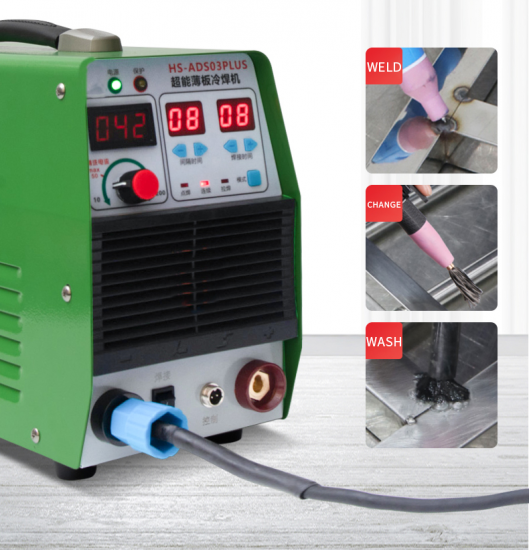

Metal Short Circuit Protection Spot Cold Welding Machine

HS-ADS03 can release the electrical energy stored in the capacitor between the tungsten electrode and the workpiece in the form of a pulsed arc in an instant. The arc with a higher temperature causes the workpiece composed of metal materials and the welding wire to quickly melt and fuse together to achieve the purpose of welding repair .
  • Item NO.:

    HS-ADS03
  • Lead Time:

    7days
  • Shipping Port:

    XiaMen
  • Product Details



Welding Repair materials:

In addition to materials with very low melting points such as zinc and tin and cemented carbide, various metal materials (including copper and aluminum) Pieces can be repaired.


Weldable items:

1. Local wear and tear caused by equipment and mold during use. 2. Processing defects in the manufacturing process, such as trachoma pores, excessive size, corner damage, insufficient argon welding, etc. 3. The rust spots and other depressions in the cavity.






Welding Skills:Welding can be directly without gaps, if there is gaps need to add rod

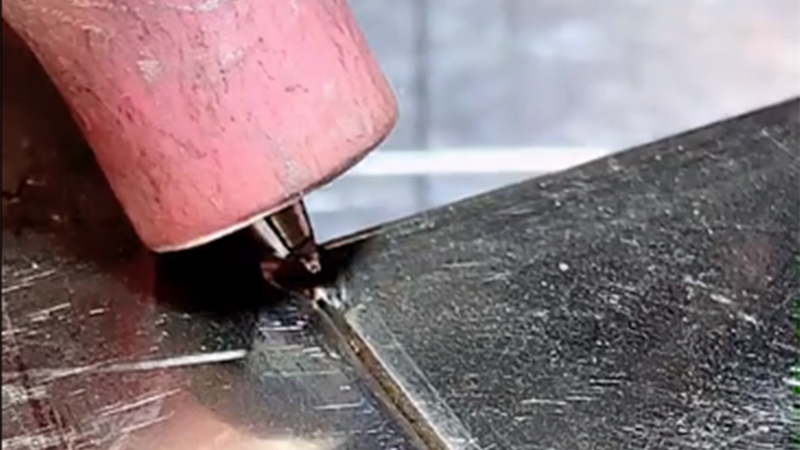

The key to self-melting

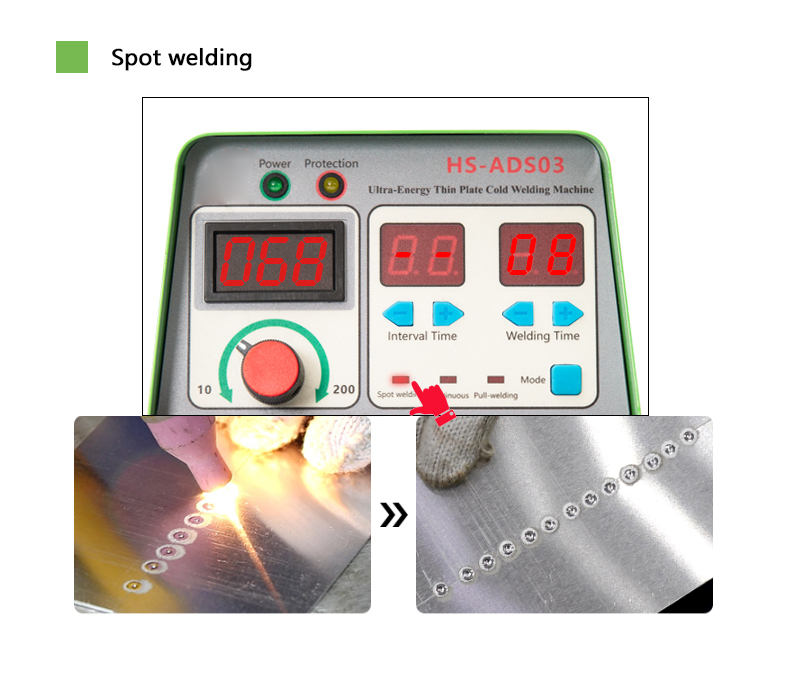

The tungsten is aimed at the gap, and the arc is aligned with the gap. If the welding point is not formed, it means that the tungsten needle is far away from the workpiece. You can put the tungsten needle closer.Don't be afraid of the tungsten needle sticking to the workpiece

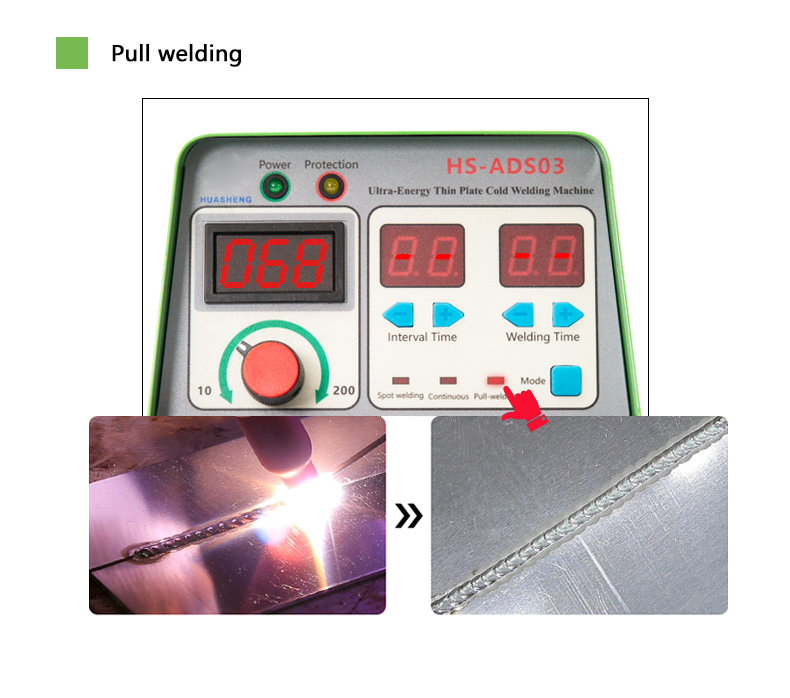

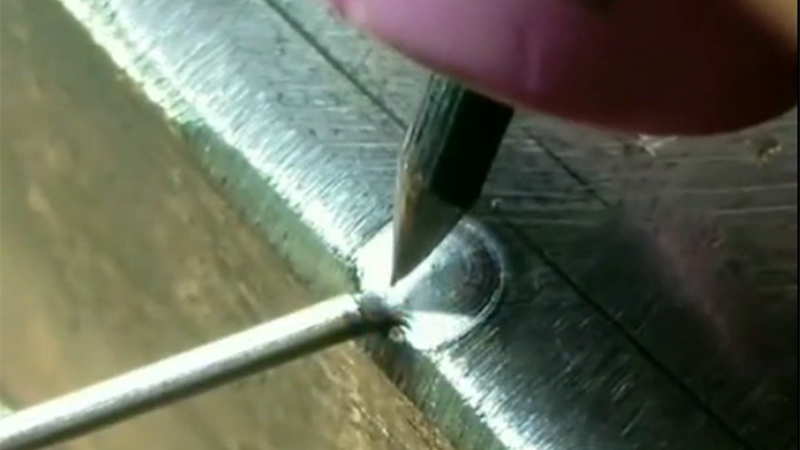

Tips for adding welding wire

The tungsten pin is placed in front of the welding wire. After the first point is set, each subsequent point is placed at the tail of the previous point (in front of the tungsten )

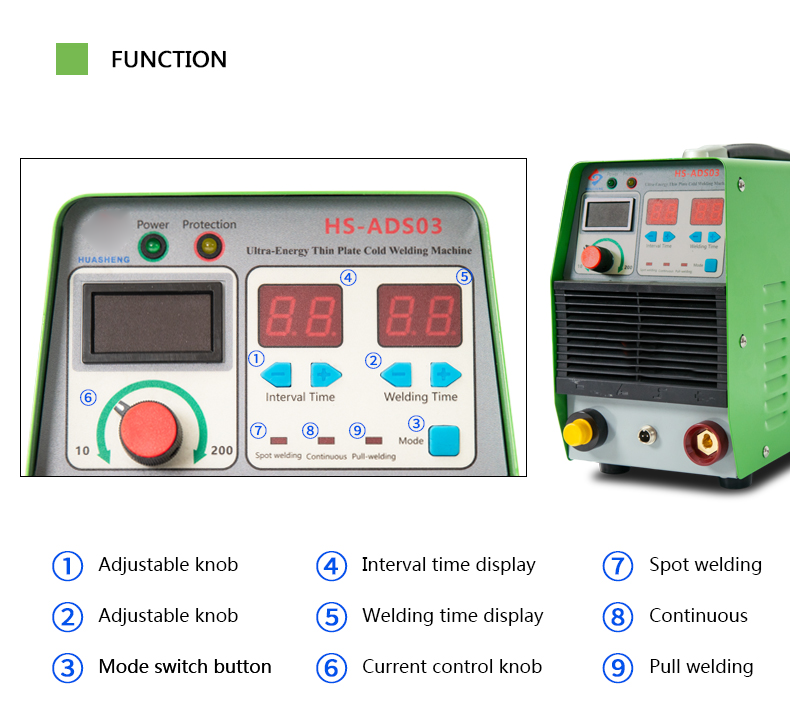

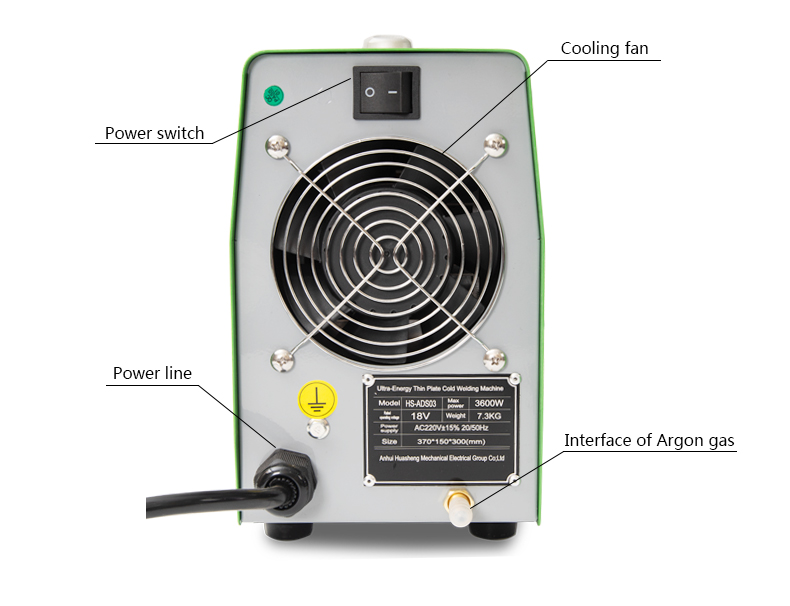

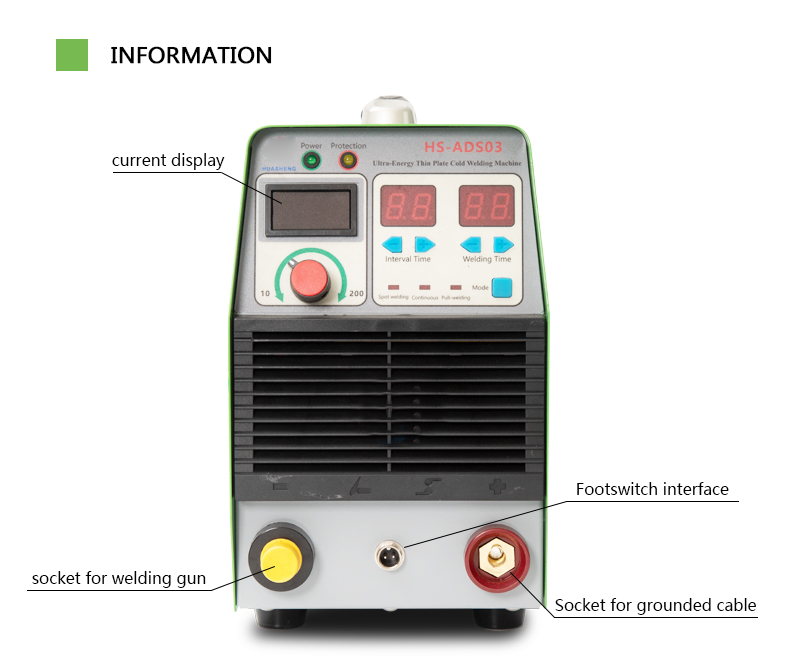

Model
HS-ADS03
Output Power
3600W
Output Current
10-200A
Input Voltage
AC 220V 50/60HZ

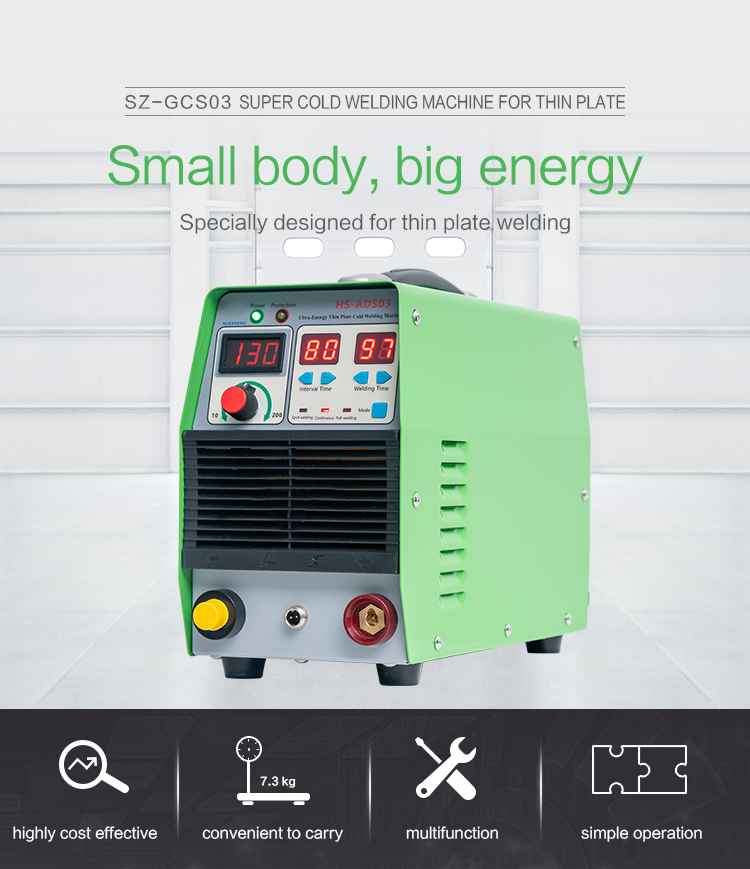

Suggest welding thickness of pulse welding
0.5-3mm

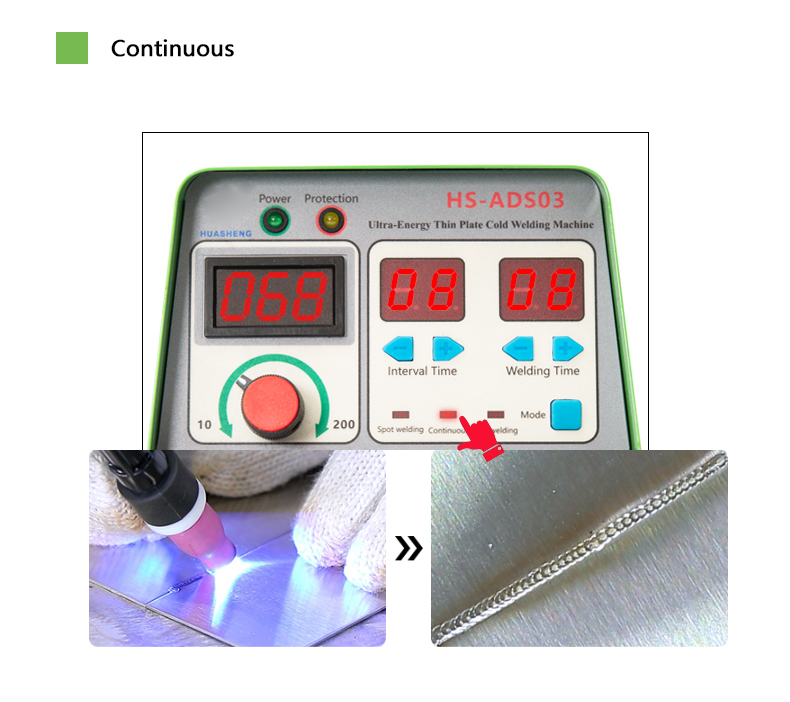

Suggest welding thickness of continuous welding
1-8mm
Machine size
370x150x250MM
Machine Weight
7.3KG

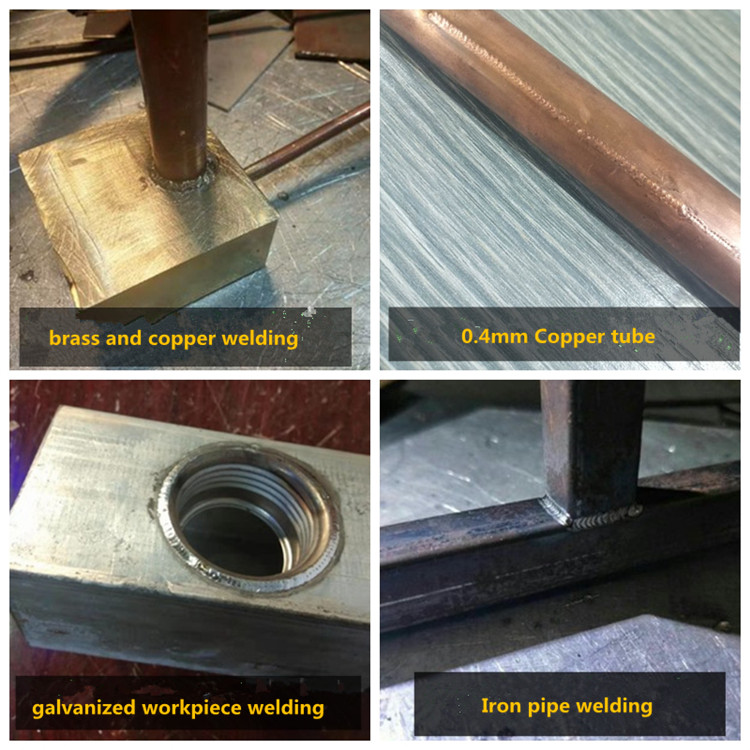

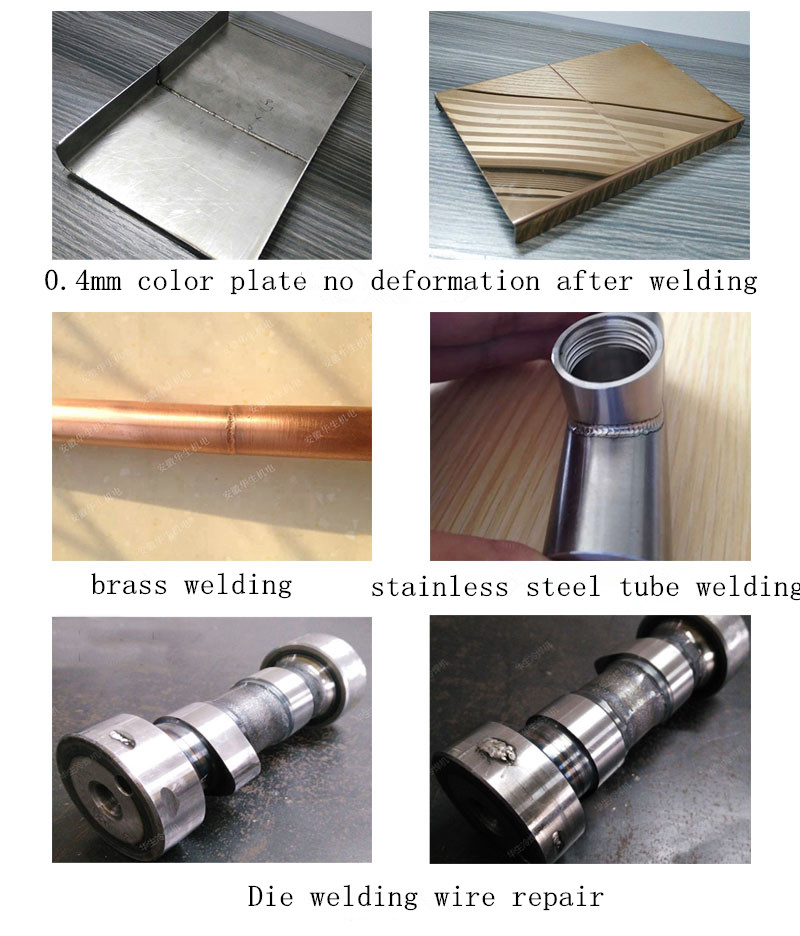

Welding Case
