Small laboratory ultrasonic atomization spray equipment

The desktop small ultrasonic spray equipment is a compact spray equipment
  • Item NO.:

    JH-PTT45K
  • Lead Time:

    7-15 day
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Power:

    10-100W customize
  • Product Details

Desktop small ultrasonic spray equipment is a compact spray equipment that uses ultrasonic technology to atomize liquid materials and spray them precisely onto the target surface. Due to its small size and easy operation, the equipment is very suitable for use in laboratories, small production lines, and R&D environments. Desktop small ultrasonic spray equipment is often used for high-precision coating applications, such as electronic components, medical device coatings, and other fields that require precise coating.

Working principle

  1. The equipment breaks liquid materials into micron-sized droplets through ultrasonic atomization technology to form a uniform spray. These atomized particles are then accurately sprayed onto the target surface with the help of airflow or electric field. The high-frequency vibration of ultrasound ensures excellent atomization of the paint, resulting in high-quality coating.
  2. Ultrasonic atomization: The ultrasonic vibrator inside the equipment generates high-frequency vibrations to atomize the liquid material into tiny particles.
  3. Airflow spraying: The atomized particles are precisely guided to the target surface through an airflow or pressure system to ensure uniform coverage.

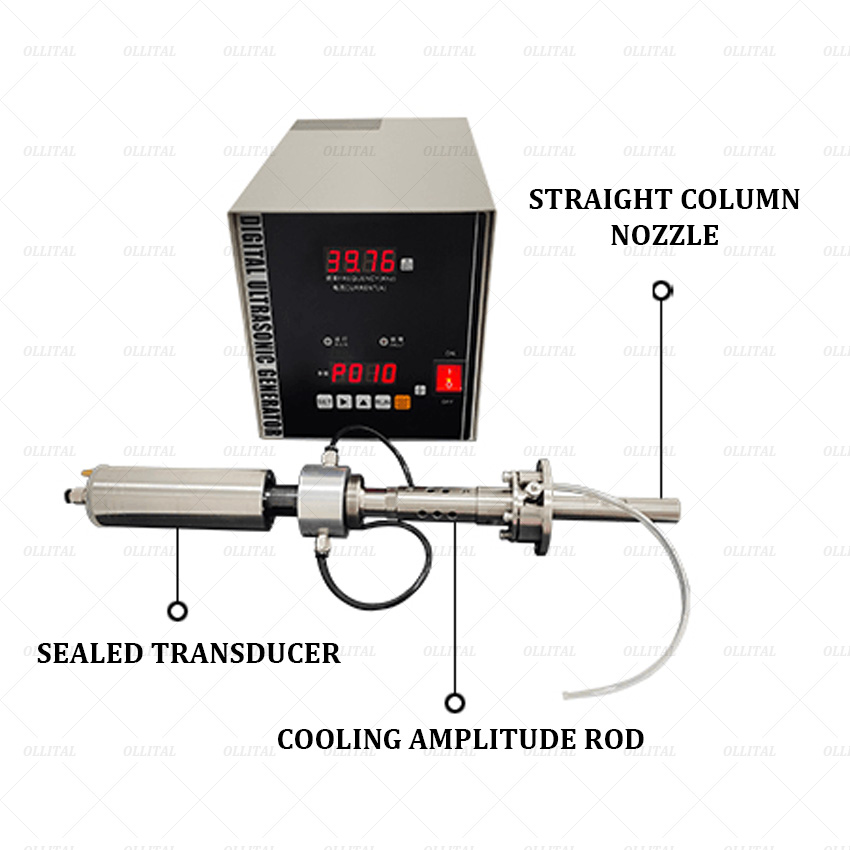

Equipment composition
  1. Ultrasonic atomizer: Generates ultrasonic vibrations to atomize liquid into tiny particles.
  2. Spraying system: sprays the atomized liquid onto the target surface to ensure uniformity and precision of the coating.
  3. Liquid delivery system: controls the flow rate and spraying intensity of the coating, and adjusts the flow rate of the liquid as needed.
  4. Benchtop design: The equipment is compactly designed and occupies a small area, suitable for benchtop use, easy to operate and laboratory or small-scale production applications.



Model JH-PTT40K
Power 800W
Frequency 39.8±0.8kHz,Automatic frequency tracking
Power 800W
Atomization particle size About 30 microns
(pure water at normal temperature and pressure)
Atomization volume 1200ML/H
Atomization method Continuous
Material viscosity ≤140CPS
Liquid temperature ≤200℃,Customizable

Application areas

  • Electronic component coating: suitable for precision coating requirements such as circuit boards, conductive films and insulating films.
  • Medical devices: used for spraying drug coatings or antibacterial coatings on the surface of medical equipment to ensure uniform distribution of the coating.
  • New energy materials: used for coating processes in the fields of thin-film batteries, photosensitive materials, etc. during the development of new energy materials.
  • Laboratory research and development: The compactness of the desktop equipment makes it very suitable for scientific researchers to conduct research and development and testing of new materials and processes.

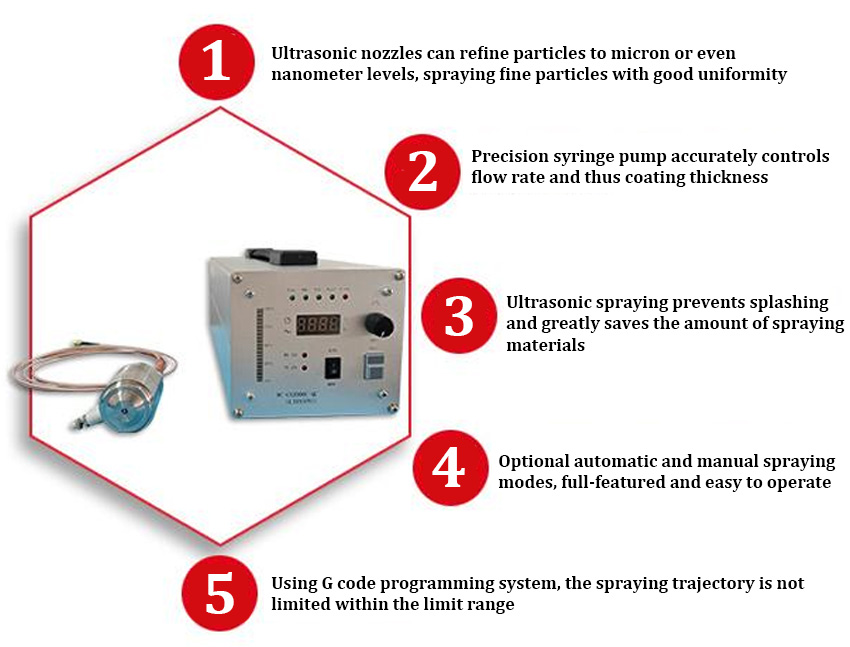

Advantages
  1. Small and flexible: The equipment is small in size and occupies a small area, suitable for use in laboratories or small production environments.
  2. High-precision coating: Ultrasonic spraying technology can accurately control the coating thickness and uniformity, suitable for coating applications with high precision requirements.
  3. Easy operation: The equipment has a simple structure and is easy to operate, which is convenient for quick start-up and adjustment of spraying parameters.
  4. Material saving: Due to the good atomization effect and high material utilization rate, the waste of coating is reduced.
