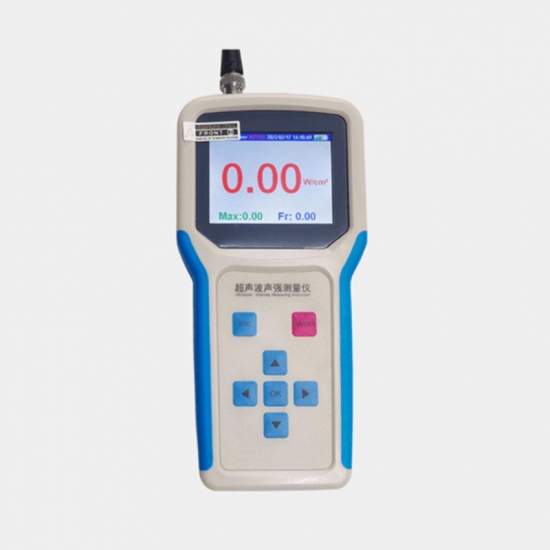

Sound intensity detector Ultrasonic sound pressure measuring instrument

Ultrasonic sound pressure meter is a professional instrument used to measure the sound pressure level in ultrasonic sound field.
  • Item NO.:

    JH-3001
  • Lead Time:

    7-15 day
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Product Details

Ultrasonic sound pressure meter is a professional instrument used to measure the sound pressure level in the ultrasonic sound field. It can accurately capture and analyze the sound pressure value of ultrasonic waves in different media. This equipment is usually used in the fields of industry, medical treatment, scientific research, etc., especially in the debugging and testing process of ultrasonic equipment. Ultrasonic sound pressure meter can ensure the working efficiency of ultrasonic equipment, evaluate the sound field distribution and energy transmission, and thus ensure the stability and safety of the equipment.

Working principle
The ultrasonic sound pressure meter captures the sound pressure changes in the ultrasonic sound field through the built-in sensor and converts it into a measurable electrical signal. Subsequently, these signals are amplified, filtered and analyzed by the data processing module to display the numerical or graphical information of the sound pressure. The sound pressure meter can usually measure the sound pressure level and sound power density within the ultrasonic frequency range.

  1. Sensor: The core component is the ultrasonic sensor, which can sensitively capture the sound pressure changes in the sound field.
  2. Signal processor: Amplify and filter the raw data collected by the sensor, and process the data to convert it into a visual value.
  3. Display unit: Display the sound pressure level in numerical or graphical form to help users intuitively understand the sound field distribution.

Equipment composition
  1. Ultrasonic sensor: specially used to sense the sound pressure changes within the ultrasonic frequency band.
  2. Signal processing module: used to amplify and filter the sensor signal to improve the accuracy and sensitivity of the measurement.
  3. Data processing unit: converts the original signal into quantifiable data to display the size and distribution of the sound pressure.
  4. Display module: numerically or graphically displays the sound pressure measurement results, which is convenient for real-time monitoring of the sound field status.

Instrument model JH3001 JH3501 JH5001 JH5501
Measurement range (w/cm2) 0-25.4 0-25.4 0-25.4 0-25.4
Resolution (w/cm2) 0.01  0.01  0.001  0.001
Frequency range (KHz) / 10.0-99.9 10.0-200.0 10.0-200.0
Storage interval fixed fixed fixed Optional(1-600s)
Data display Instantaneous value, maximum value, instantaneous frequency, sound intensity curve, recorded value
Number of storage groups 9  9  13  200
Data export method No No No Connectable PC/PLC
Frequency display No Yes Yes Yes
Power display Yes Yes Yes Yes
Display method 3.2inch TFT(320*240)
Power supply method 3.7V*2Rechargeable lithium battery
Probe length (customizable) 0.5mStainless steel probe + 0.5m cable
