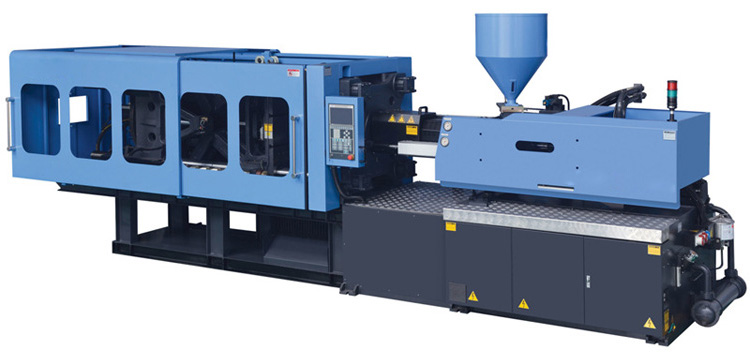

Hot Selling Used Plastic Making Blowing Mould Manufacturers Injection Molding Machines for making plastic products

Injection Molding Machines for making plastic products
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen/Shanghai
  • Speed:

    1 - 200 rpm
  • Power:

    19.3 kW
  • Weight:

    3800
  • Product Details

Product Description


SOPHISTICATED AND RELIABLE STABILITY
Accumulated decades of experience in design and

manufacturing, Injection molding machine has advantages such as platen

with high strength, high rigidity, impact resistance, uniform stress distribution and less transformation, etc.

Toggle with oiling bush, equipped with centralized

automatic lubrication system to have better lubricating

effect and extend service life of joints. Adopt new frame

type structure to have more reasonable stress on

machine body, and strengthened column has improved

rigidity of wall effectively.


Specification


ITEM

UNIT

DATA

Injection Unit

Screw Diameter

mm

38

40

45



Screw L/D Ratio

L/D

22.1

21

18.7



Injection Volume

cm3

199

220

278



Shot Weight

g

181

200

253



Injection Pressure

Mpa

201

182

143

Clamping Unit

Clamping Force

kN

1300



Opening Stroke

mm

380



Mould Thickness(Min-Max)

mm

150-450



Space Between Tie-Bars

mm

420×420



Ejector Force

kN

45



Ejector Stroke

mm

130

General

Motor Power

kW

13



Heater

kW

9.5



Pump Pressure

Mpa

16



Machine Dimension

m

4.78×1.19×1.98



Machine Weight

T

3.8



Mould Orientation Ring Diameter

mm

Φ125



Nozzle Radius

mm

SR10


Details
