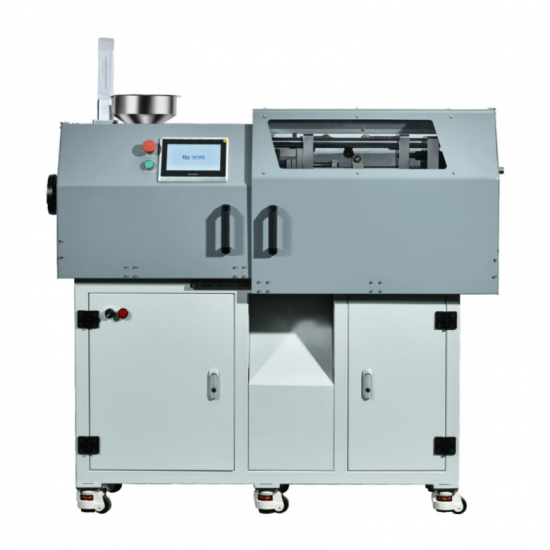

Lens Medical Device Parts Plastic Injection Molding Machine

  • Model Number:

    XPM-12-X
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1

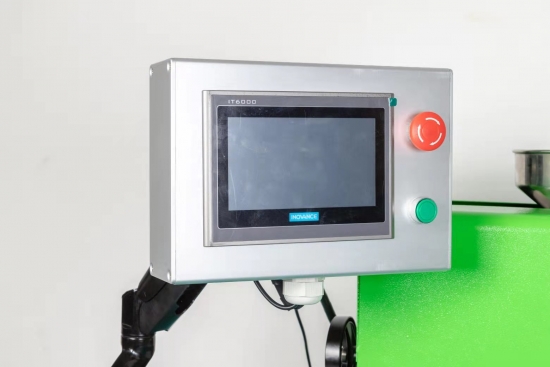

  • Screen:

    Touch Screen
  • Voltage:

    220V
  • Warranty:

    1 year
  • Product Details

High Precise Control The servo system can control the machine's pressure, speed & location precisely, make sure that the error of  accurate repeatability precision for the shot measurement is <0.3%


Technical Parameters

Model

XPM-12-X

XPM-12

XPM-17

Product Name

Small desktop injection molding machine

Clamping force

12T

15T

Voltage

Single phase, 220V 60Hz

Machine Size

1400*475*1200mm

1300*400*450mm

1400*475*550mm

Machine weight

180kg

145kg

225kg

Screw diameter

18mm

18mm

22mm

Nozzle diameter

2mm

2mm

2mm

Mold opening stroke

85mm

75mm

125mm

Max. production weight

30g

30g

40g

Maximum mold installation size

200*120*150mm

200*120*150mm

175*250*170mm

Temperature range

0-400C

Applicable materials

PP, PE, PVC, ABS, PC, PA6, PS, PEI, PIMMA, TPU, PTE etc.

Features
Detailed Images


Packing&Delivery
