Sulfur Hexafluoride Gas Reclaimer Recovery System Tester

This device is applied to the extraction, filling, backfilling, purification and recovery of sulfur hexafluoride gas in SF6 electrical equipment.
  • Item NO.:

    HYLH-V
  • Lead Time:

    7days
  • Shipping Port:

    XiaMen
  • Product Details

Introduction

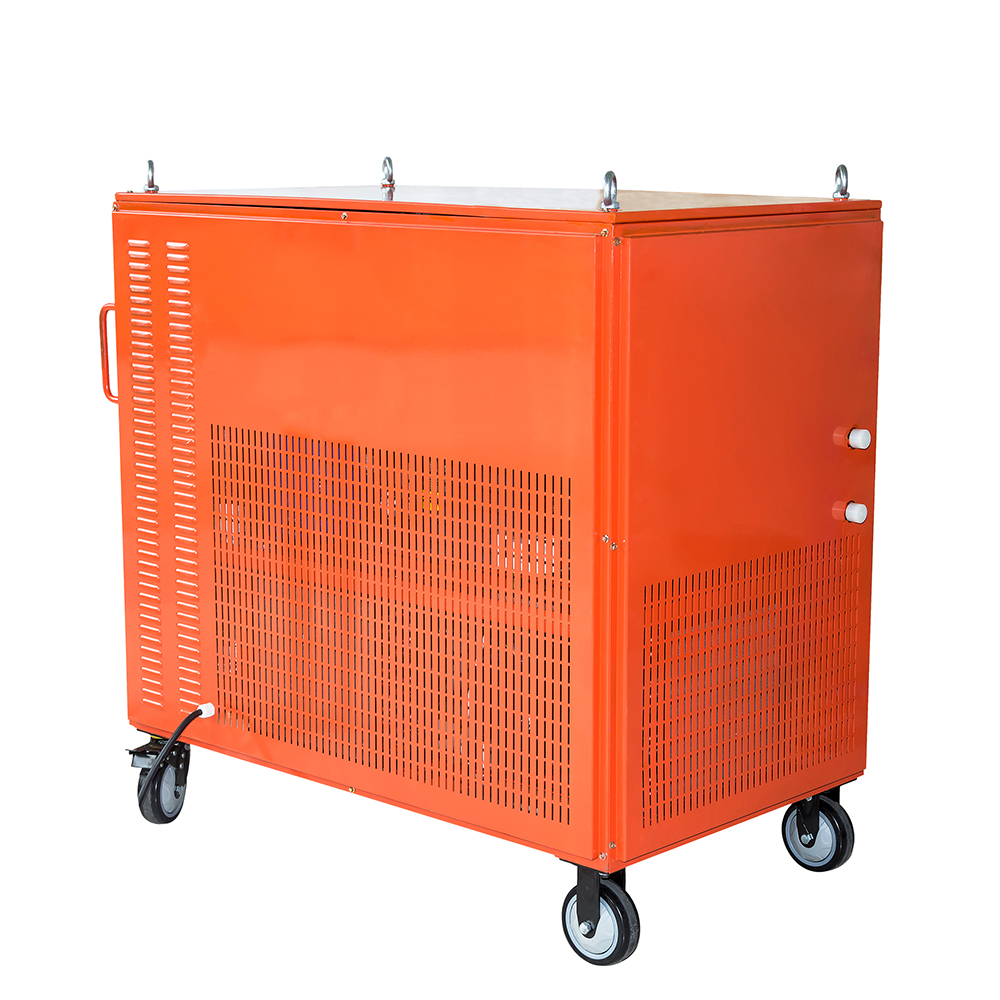

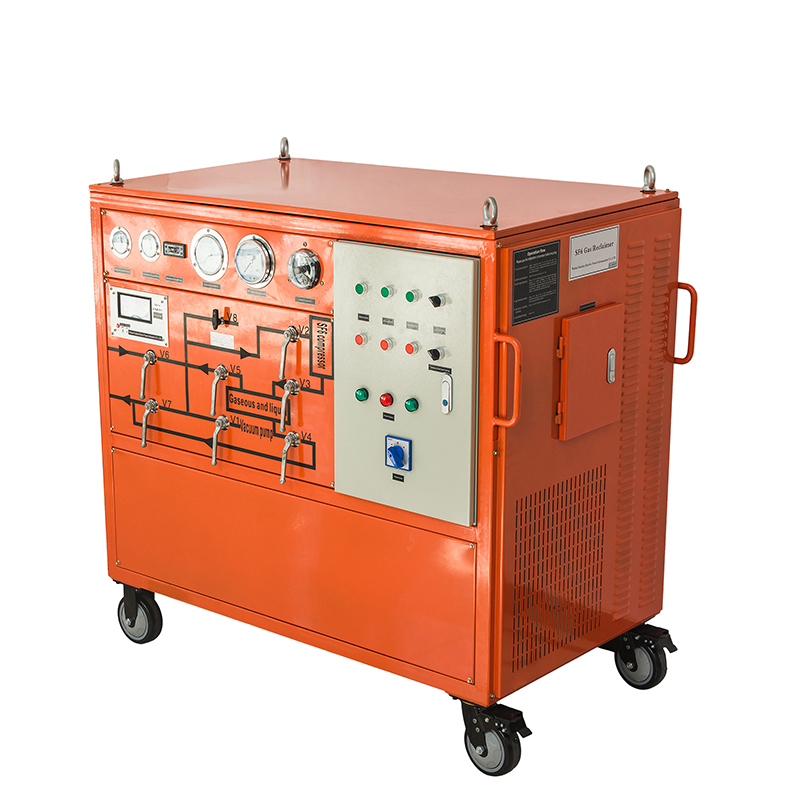

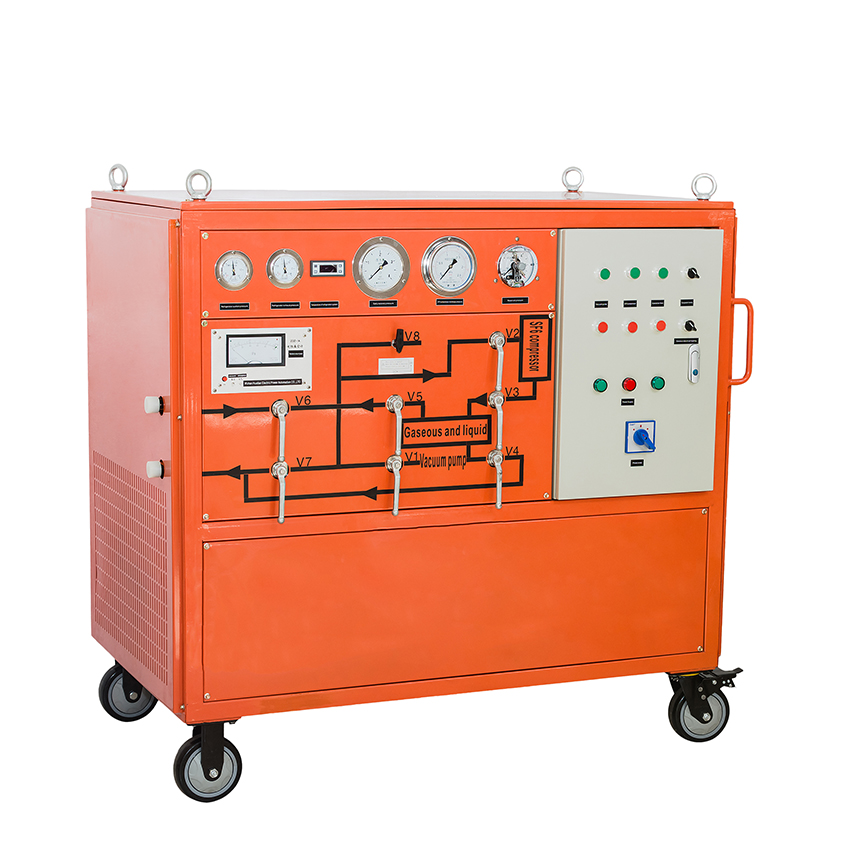

This device is applied to the extraction, filling, backfilling, purification and recovery of sulfur hexafluoride gas in SF6 electrical equipment. The built-in filtration and adsorption system can absorb impurities, water, decomposition products and oil content in SF6 gas. The integrated design and small size are easy to move and use. The efficient maintenance - free filtration system greatly guarantees the quality of SF6 gas recovery. SF6 gas should be recycled when the SF6 electrical equipment is applied, therefore, SF6 gas recovery equipment is a special designed to recover and fill SF6 gas when making and maintaining sf6 electrical equipment. SF6 gas recovery device is suitable for the extraction, filling,
backfilling, purification and recovery of sulfur hexafluoride gas in sf6 electrical equipment. The recycled SF6 gas can be directly stored into the container in a liquid form, and can recover residual pressure in GIS to 53Kpa (absolute pressure), small volume, easy to move, fast vacuum extraction speed, the recovered SF6 gas can be dried and filtered. It can also be backfilled with SF6 gas to SF6 electrical equipment.

Features

1. With internal phase sequence protector, at any time can be eliminated the worry of inversion of the host due to phase sequence errors.
2. All electrical systems are used with quality brands.
3. High quality casters will greatly protect the floor paint and reduce the amount of labor required to drive.
4. The whole machine is air-cooled, without external water source.
5. The internal temperature protection system works well even at -20 degrees Celsius
6. The internal drying and heating system can ensure that the desiccant can be heated and regenerated by the equipment after saturation, so there is no need to replace the desiccant




Technology Parameters

Product Name
HYLH-V SF6 Filling equipment
recycle
Recovery initial pressure≤0.8MPa
Final recovery pressure≤50KPa
Recovery time:for initial pressure 0.8MPa of 1 m 3 SF6 gas capacity,recovery to final pressure 50KPa, Recovery time is less than
2.5 hours
Gas filling
for initial pressure 133Pa of 1 m 3 SF6 gas capacity filled to 0.8MPa, Inflation time is less than 0.8 hour
vacuumize
The ultimate vacuum degree of the device is less than or equal to 10 Pa, for initial pressure 0.1MPa of 1 m 3 SF6 gas is
evacuated
to 133Pa . Required time less than 1.0 hour
storage
Storage capacity 0.05m
Nominal liquid storage 50kg

Maximum storage pressure 3.8 MPa
purification
For water content under 1000PPM(volume ratio)of SF6 gas, after one time recovery and purification of the device:water less than
60PPM(weight ratio), oil less than10PPM(weight ratio)
Leakage rate per year
Leakage rate per year
Noise
≤75dB(A)SPL
temperature
-10℃- 40℃
Power supply
Ac three phase five wire system 50Hz 400V±10%
Power
≤5KW
Weight
545 kg
dimension
1450×810×1200mm
Note: 1mA-5mA, ±3°.

Products Show
