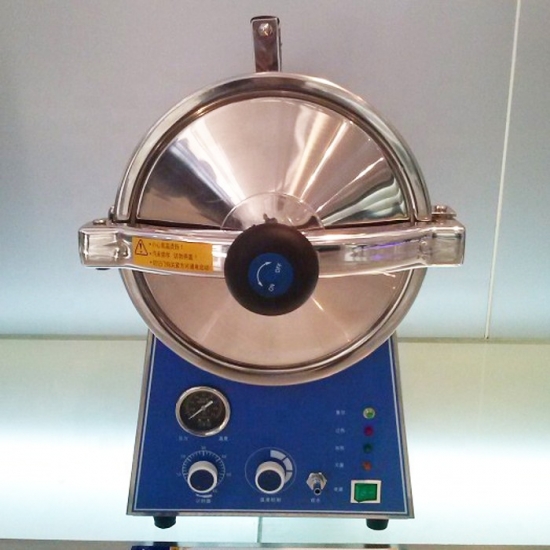

TM-T24J Autoclave Machine 24L Small Desktop Autoclave Sterilizer

Model

JH-T16J

JH-T24J

Sterilizing chamber volume

16L(φ250×360 mm)

24L( φ270 x 410 mm)

Maximum working pressure

0.22Mpa

Maximum working temperature

134℃

Adjustment of temperature

105-134℃

Timer

0-60 min

Chamber temperature equal

≤ ± 1℃

Source power

1.5KW/AC 220V 50Hz

1.5KW/AC 220V 50Hz

Sterilizing plate

340x200x30mm (3 piece)

340x200×30 mm (3 piece)

Dimension

545x328x423mm

560x350x500 mm

Package Dimension

605x390x480mm

620x410x570mm

G. W/N.W

17/15 kg

20/18 kg

TM-XA24J

 Features:

 1.Indicator light indicates working state.
 2.For 4~6 minutes rapidly sterilizing.
 3.Sterilizing temperature and time can be   preset.
 4.Steam-water inner circulation system:no   steam discharge,and the environment for   sterilizing will be clean and dry.
 5.Over temperature and over pressure auto-   protection.
 6.Safe protection of water lacking.
 7.Exhaust the cool air automatically.
 8.Door safety lock system.
 9.With three stainless steel sterilizing plates.
 10.Fully stainless steel structure.
 11.Automatically shut off with beep reminding   after sterilization.

TM-XD35D

 Features:

 1.For 4~6 minutes rapidly sterilizing.
 2.Digital display of working status,touch type   key.
 3.With 3 fixed cycles of water   adding,temperature rising,sterilizing,drying   steam discharging controlled automatically.
 4.The whole process of water   adding,temperature rising,sterilizing,drying   steam discharging controlled automatically.
 5.Steam-water inner circulation system:no   steam discharge,and the environment for   sterilizing will be clean and dry.
 6.Exhaust the cool air automatically.
 7.Safe protection of water lacking.
 8.Door safety lock system.
 9.With four stainless steel sterilizing plates.
 10.The chamber of the sterilizer is made of   stainless steel.
 11.Automatically shut off with beep reminding   after sterilization.
 12.With drying function.

TM-XA24DV

 Features:

 1.Standard Class B with three times vacuum   and drying,the remaining temperature of   sterilized instrument iS less than 0.2%.
 2.LCD display working status,touch keys.
 3.The vacuum data can reach-0.8bar.
 4.Fully computer controlled LCD display bright   show.
 5.It is installed with BOWIE&DICK which   measures the penetration of water steam.
 6.It has vacuum text which can make sure the   ability of texting vacuuming.
 7.Fast and independent steam generator.
 8.Built in mini printer which can record the   sterilizer information.
 9.Safety valve,Safety lock door system,   pressure lock system,Pressure or temperature   overload protection, alarm system.
 10.Can inactivate HIV,HBV, mad COW Virus   and bacillus.
