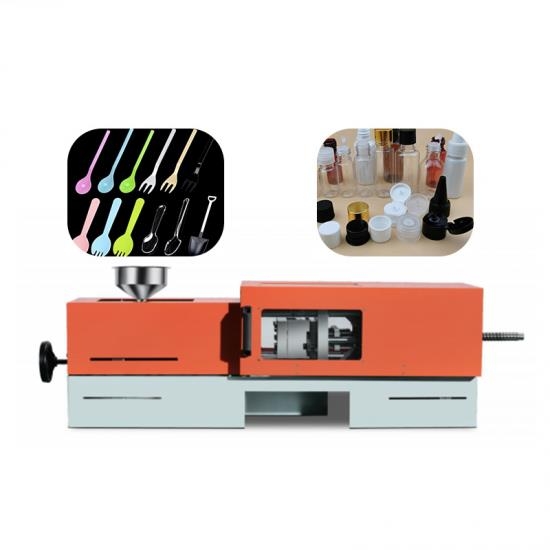

This machine is small version of production machine. It is small, Easy to move, suitable for classroom teaching and small sample making.
The product includes mold clamping parts, sol injection parts, the host body, heating system, control system and feeding charging device.
This machine has the advantages of simple structure, easy handling, electricity and raw material saving, non-noise and non-pollution, can be used at any places with 220V power supply.
This injection molding machine is a compression and transfer type injection molding machine.
|
Model |
XPM-12-X |
XPM-12 |
XPM-17 |
|
Product Name |
INJECTION COMPRESSION MOLDING MACHINE |
||
|
Clamping force |
12T |
15T |
|
|
Voltage |
Single phase, 220V 60Hz |
||
|
Machine Size |
1400*475*1200mm |
1300*400*450mm |
1400*475*550mm |
|
Machine weight |
180kg |
145kg |
225kg |
|
Screw diameter |
18mm |
18mm |
22mm |
|
Nozzle diameter |
2mm |
2mm |
2mm |
|
Mold opening stroke |
85mm |
75mm |
125mm |
|
Max. production weight |
30g |
30g |
40g |
|
Maximum mold installation size |
200*120*150mm |
200*120*150mm |
175*250*170mm |
|
Temperature range |
0-400C |
||
|
Applicable materials |
PP, PE, PVC, ABS, PC, PA6, PS, PEI, PIMMA, TPU, PTE etc. |
||
Detailed Images
Packing and shipping
