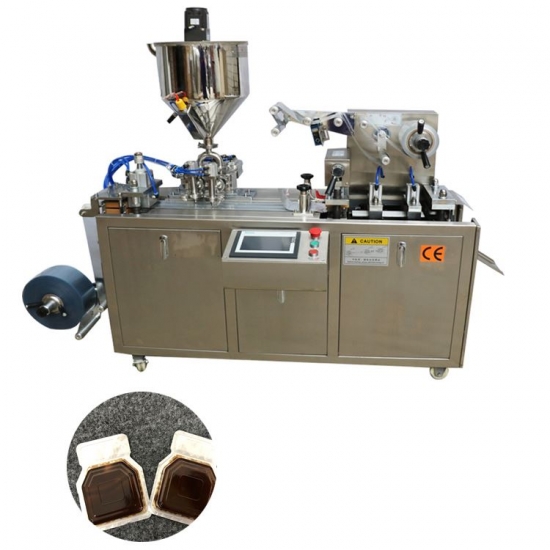

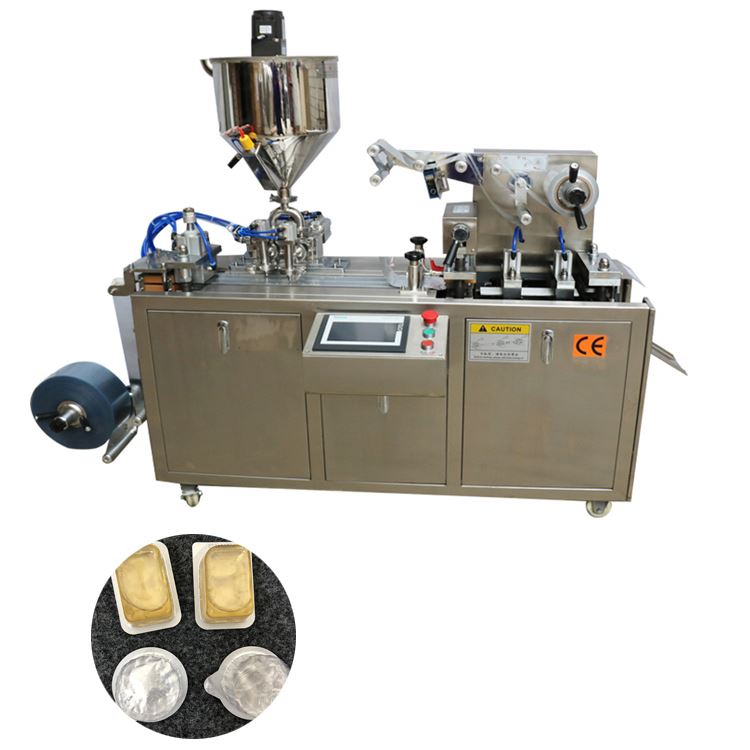

Automatic Aluminum Plastic Honey Blister Packing Machine Liquid Blister Packing Machine

  • Lead Time:

    3-5
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Minimum Order Quantity:

    1
  • Power:

    380V/220V 50Hz 2.8kw
  • Weight:

    450
  • Product Details

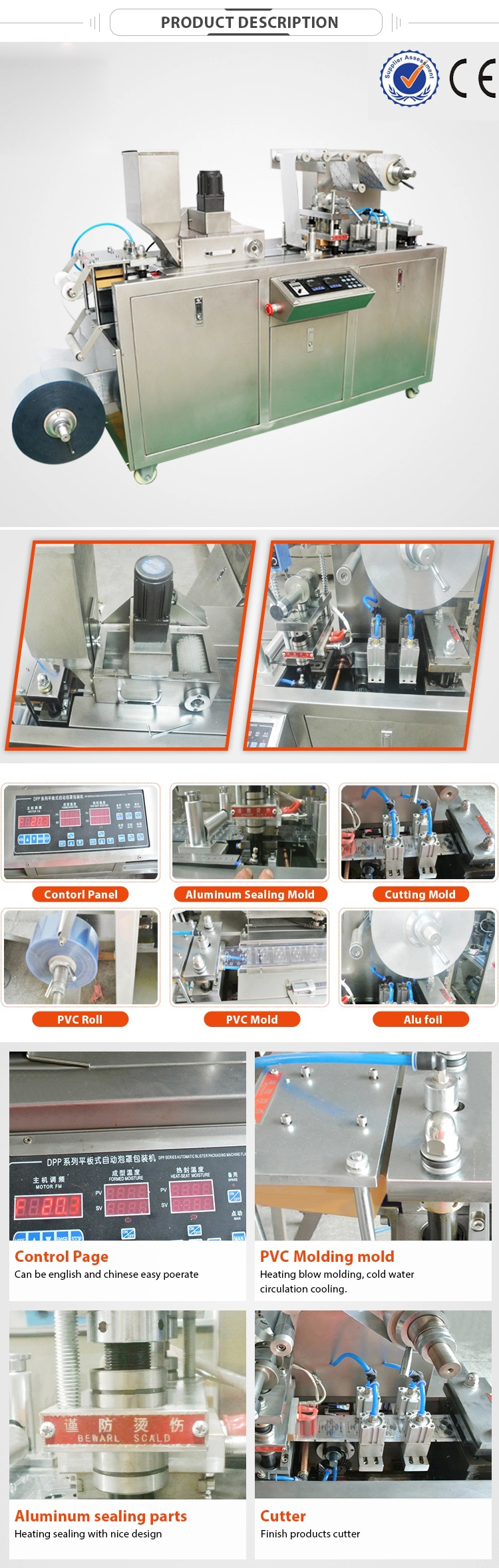

Product Description

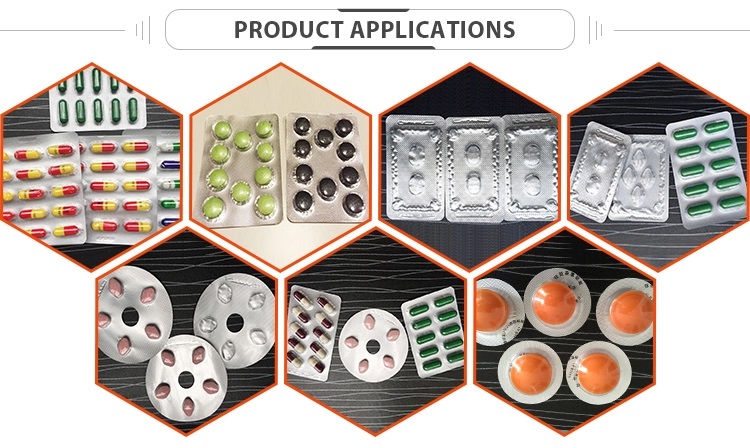

This machine is specially designed for laboratory, dosage room in hospital, mini-pharmaceutical factory, mini-motor test workshop, and medicine institute. This machine is flat plate structure, positive pressure and convenient to operate. It is small and the stroke Length is adjustable. It is suitable for AL/PL package for any shape of objects, such as capsule, tablet, pellet, sugar-coated tablet, leisure candy, milk tablet, mini metal etc.



Technical Parameter


Cutting Frequency (Times/mim)
27
Capacity ( pcs/h)
2600-4000
Stroke (mm)
40-110
Max. Forming Area and Depth(mm)
60×100×14
Air Compressor(m³/min)
≥0.3 (provided by user) oilless air compressor better
Air Pressure (Mpa)
0.4
Standard Plate(mm)
80×57 can be manufactured as user's requirements
Total Power
380V/220V 50Hz 2.8kw
PVC Hard Pieces(mm)
0.25-0.35×90
PTP Aluminum Foil(mm)
0.02-0.035×90
Mould Cooling
tap water or recycling water
Overall Dimensions(mm)
1300×400×1070(L×W×H)
Weight(kg)
450
Product Details

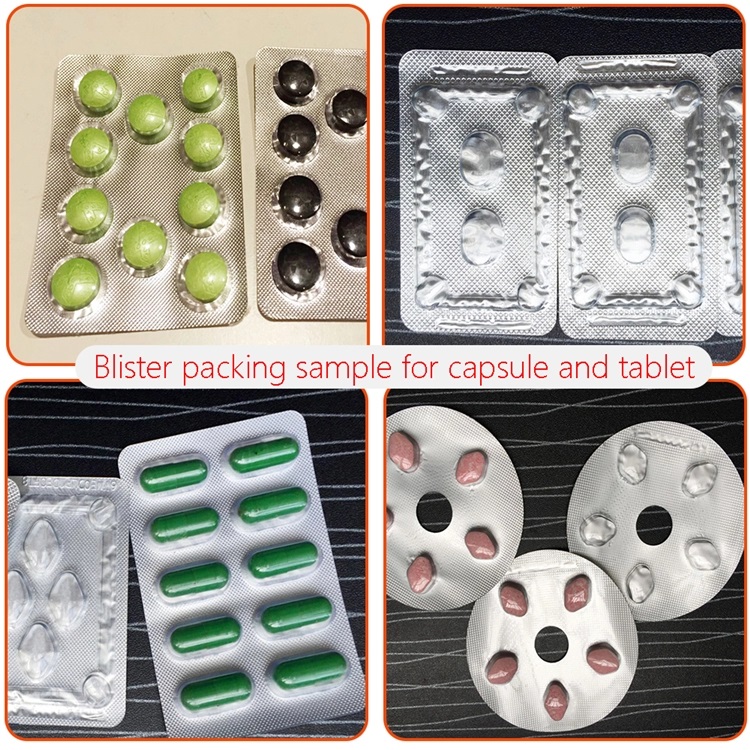

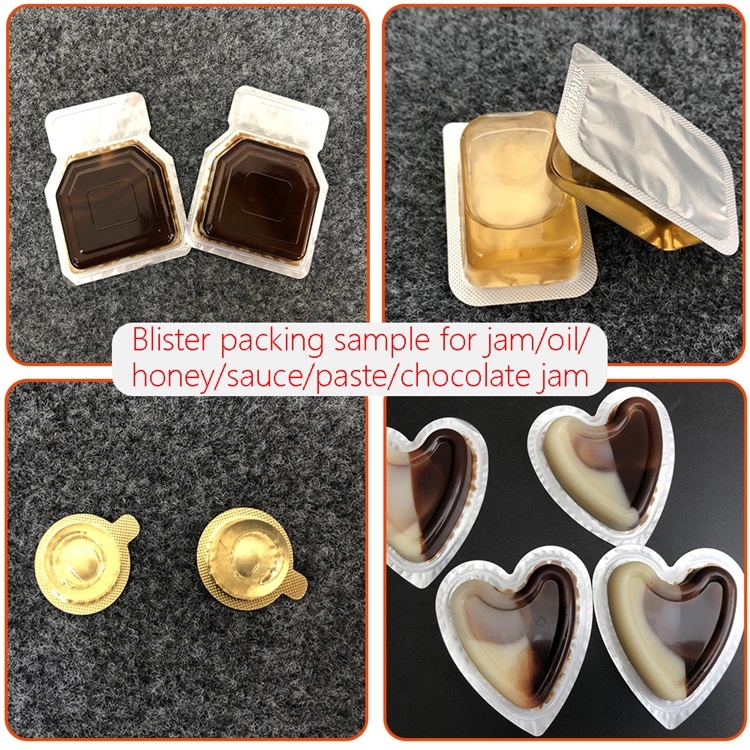

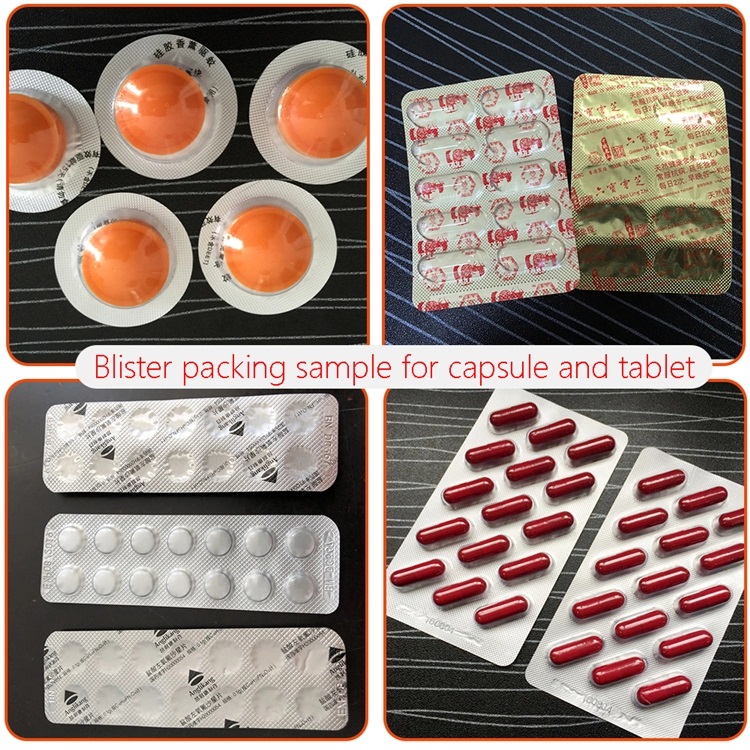

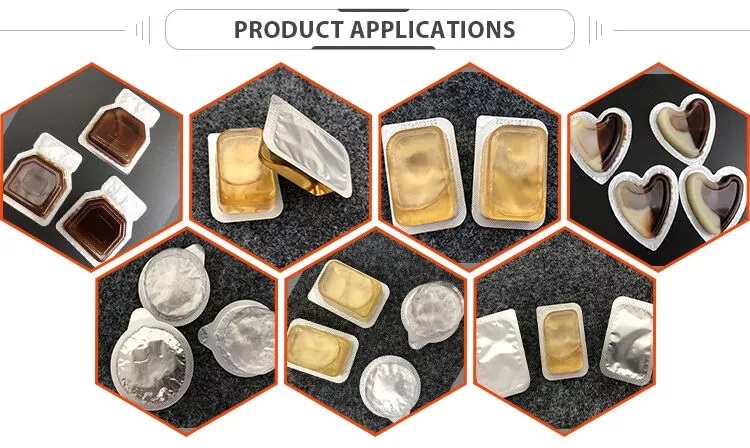

Sample Picture
