Big Forming Area High Speed Fully Automatic Capsule Tablet Pill Blister Pack Machine

  • Lead Time:

    3-5
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Power:

    220V/110V 50Hz 8kw
  • Dimension(L*W*H):

    2910×820×1600mm
  • Weight:

    2200
  • Product Details

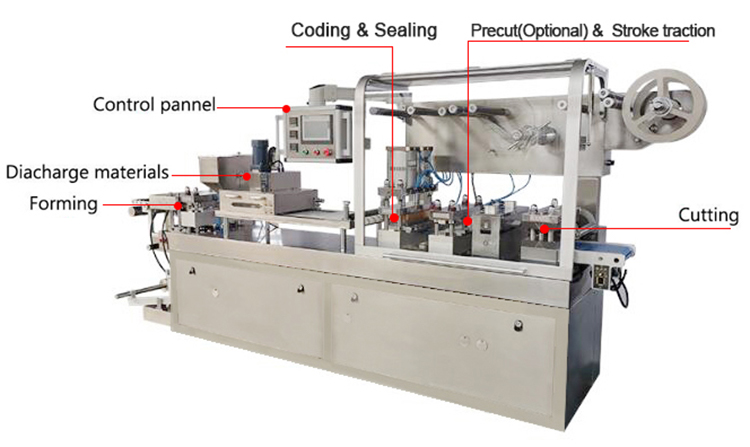

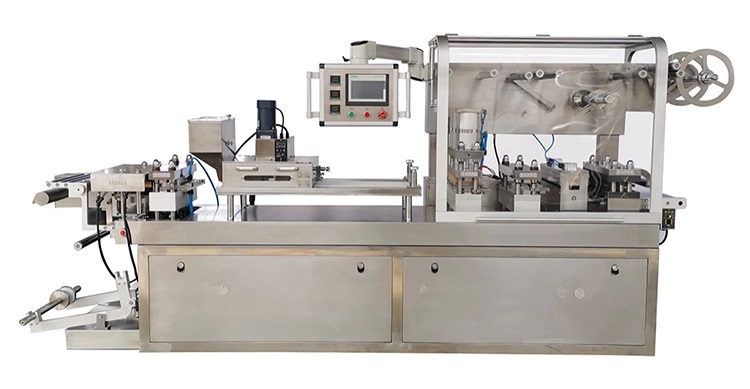

Product Description


It is a latest high-precision Capsule Packing Machine in current pharmacy industry. It is widely used for capsule, tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chocolate in food industry, for injector, syringes, pins, small component etc. in electron or hardware industry as all kind of shapes of ALU-ALU,ALU-plastic, paper-plastic combined sealing packing.
Features


1. The key electric appliance of his machine adapts PLC processor, temperature modular, touch screen to operate, high quality product, can be equipped with cursor device etc. as customer's requirement.
2. Machine-tool track type of casting machine-base, taken these processing like backfire, maturing, high benchmark and without distortion.
3. Each box of section processed through professional equipment, to assure high precision and good exchangeability.
4. Forming, sealing, slitting etc. parts are all could be adjust freely on the track with triangle string and flat string, strong applicability. small oversize, save installation space.
5. Reducer adapts parallel-axes bevel wheel, to avoid loose and smooth between chain or strap when it is driving.
6. Stroke can be adjust freely, widely used, ease of operation, stable running.
7. It adapts up and down net pattern concavo-convex to conjugate, multi-step air cylinder, double-heat sealing, Quality sealing.


Product Parameter




Model
DPB-320
Cutting Frequency
20-50 times/min
Capacity
15000 strip/h(standard blister sheet 80x57)
Max shaping areas and depth
320×160×26mm
Standard stroke range
20-120mm(can be manufactured as user`s requirements)
Standard Sheet
80×57,80×35,95×65,105×42,105×55mm
(can be manufactured as user`s requirements)
Air Pressure
0.5mpa-0.7mpa 0.2m3/min
Total power
220V/110V  50Hz 8kw
Main motor power
1.5 kw
PVC hard pieces
0.15-0.5×320 mm
PTP Aluminum Foil
0.02-0.035×320 mm
Dialysis Paper
50-100g×320 mm
Mould Cooling
tap water or recycled water
Overall Dimensions
2910×820×1600 mm
Weight
2200 kg

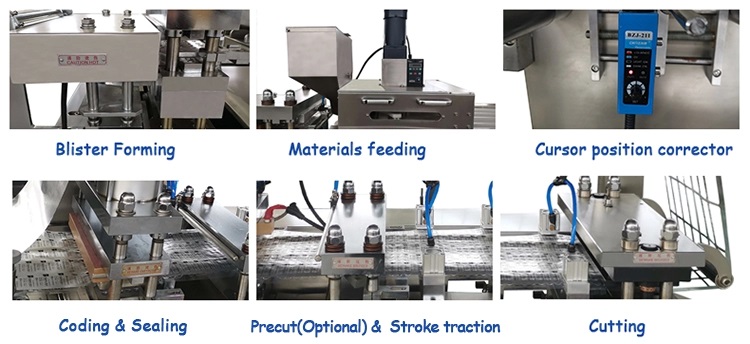

Product Details




Sample pictures



Packing & Shipping
