Item NO.:
HZ-384ALead Time:
7daysShipping Port:
XiaMen
I.Overview

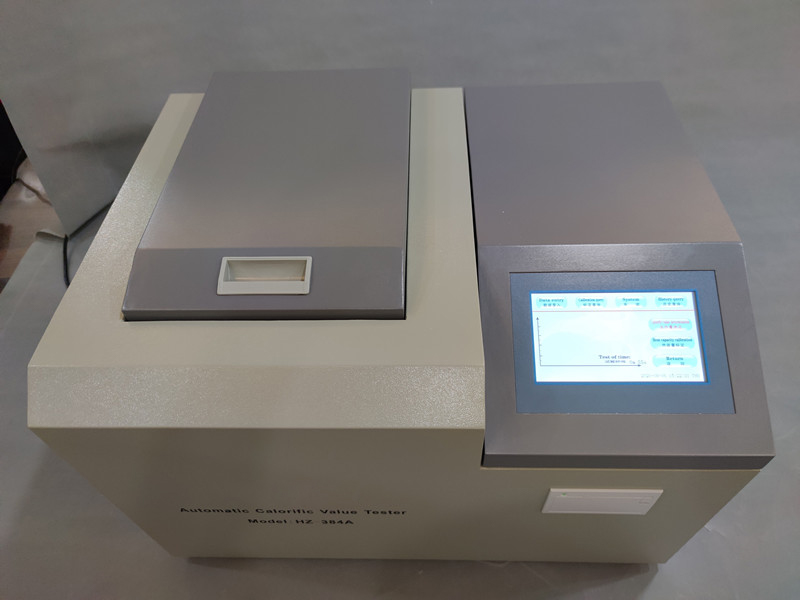

This instrument is used to measure the calorific value of solid, liquid and other combustible materials (coal, petroleum food, wood, biomass).
The instrument is a new type of energy-saving analysis instrument developed by our company. The calculation program carefully compiled improves the measurement accuracy greatly. Color and touch display, all Chinese display, good user interface. The measurement process is automatically controlled to reduce human error. Print cartridge, dry base high position
The results are clear and clear.
II.Technical features
1. It has the advantages of simple structure, reliable performance and strong anti-interference ability.
2. The test steps such as flushing, discharging, water level setting, mixing, ignition, temperature recovery, correction, calculation and printing are completed automatically to avoid human error and improve the accuracy and precision.
3. 3The unique calibration technology makes the requirements of the instrument to the environment relatively relaxed. The accuracy of the test is improved while the stability of the long-term operation is ensured.
III.Working principle
0.9-1.1g of the substance to be tested is put into a heat crucible (heat-resistant and anti-corrosion), and the crucible is placed in an oxygen bomb added with 2.8-3.2mpa oxygen, and put into the inner cylinder of the calorimeter. The inner cylinder is added with quantitative distilled water. The heat output of the combustible can be calculated according to the rise of water temperature and the heat capacity of the calorimetry system.
IV.Technical index
Heat capacity: About 10500 J / K
Oxygen bomb capacity: 300ml
Oxygen charging pressure: 2.8 ~ 3.2 MPa
Pressure resistance: water pressure 20MPa
Weight: 2.5 kg
Overall dimension: 650 * 450 * 500 mm
Temperature range: 0 ~ 40 ℃
Response time: < 4 S
Resolution: 0.0001 ℃
Linearity: < 0.08% per 5 ℃ temperature rise range
Temperature measurement error: ± 0.003 ℃ for every 5 ℃ temperature rise range
Power supply voltage: AC220V ± 10%
Humidity: ≤ 80%
Power: 30W
Ignition voltage: AC24 V
Ignition time: 5S
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
Oxygen Bomb Calorimeter is suitable for the determination of water-free oil products (gasoline, jet fuel, diesel oil and fuel oil, etc.) and combustible material such as coal, coke, paraffin wax content determination of calorific value.
It is applicable in the industry such as electrical power, coal, papermaking, petrochemical, oil, cement, farming, medical research, and instruction to measure the Calorific Value of combustible materials.
Brand-new metal furnace body structure, with better baseline and higher accuracy. The heating adopts indirect conduction method, which has high uniformity and stability, reduces pulse radiation, and is better than traditional heating mode.
Widescreen touch structure of industrial level, rich display information, including the set temperature, sample temperature, oxygen flow rate.
Function:Computerized usinf windos based software
