Item NO.:
GDY-1ALead Time:
7daysShipping Port:
XiaMen

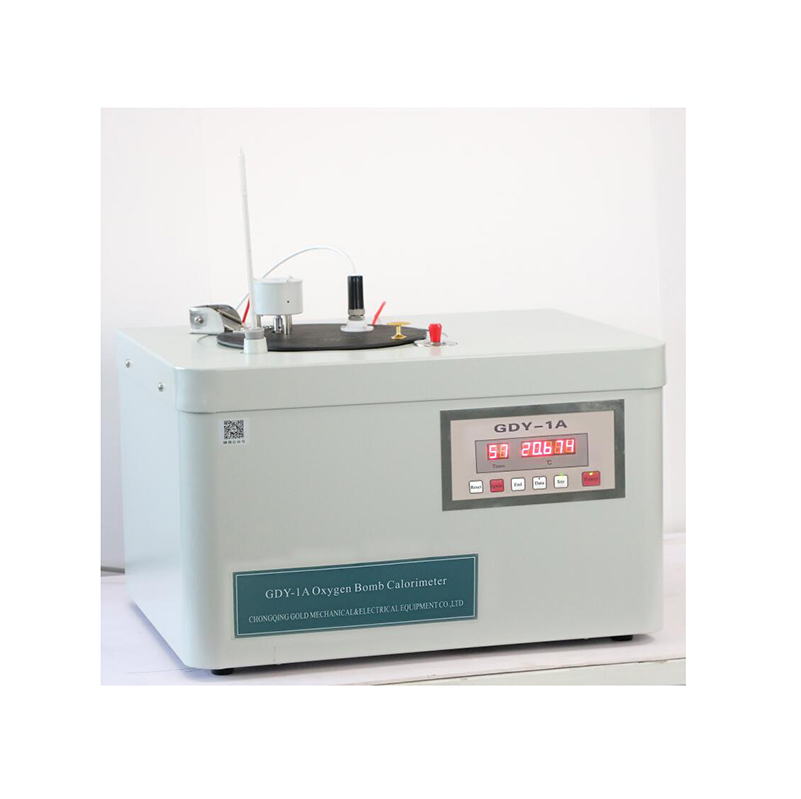

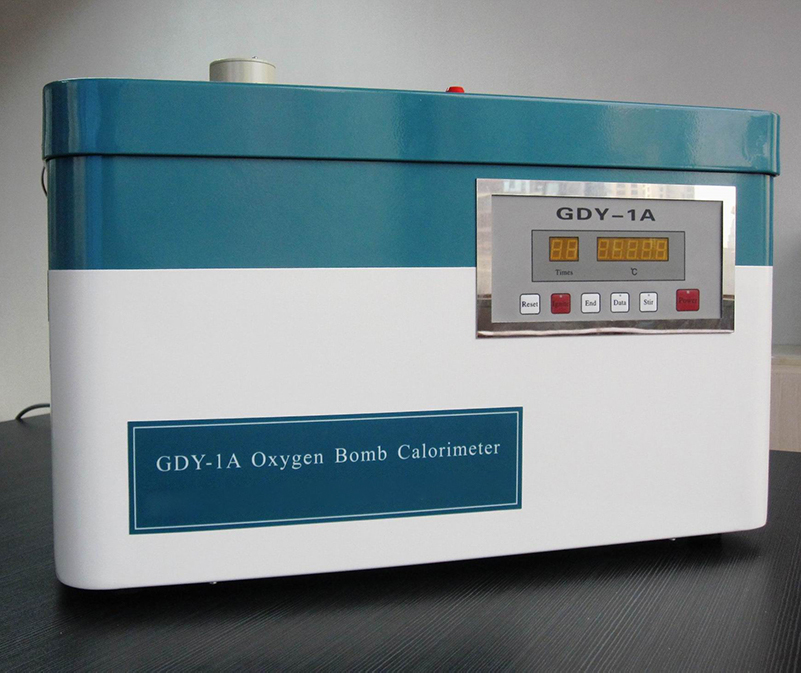

1.Oxygen Bomb Calorimeter is designed and made as per ASTM D240, ASTM D5865.
Oxygen Bomb Calorimeter is suitable for the determination of water-free oil products (gasoline, jet fuel, diesel oil and fuel oil, etc.) and combustible material such as coal, coke, paraffin wax content determination of calorific value.
The heat capacity of the instrument is 14400~14500 J/K.
Features:

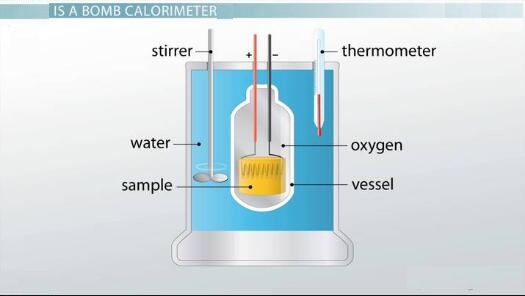

1) Oxygen Bomb Calorimeter uses a self sealed oxygen bomb, all the structure of the use of stainless steel, the strength is sufficient to withstand the maximum pressure generated by solid combustion (70 ~ 60 ATM), and can withstand the pressure of liquid fuel generated by the greater pressure.

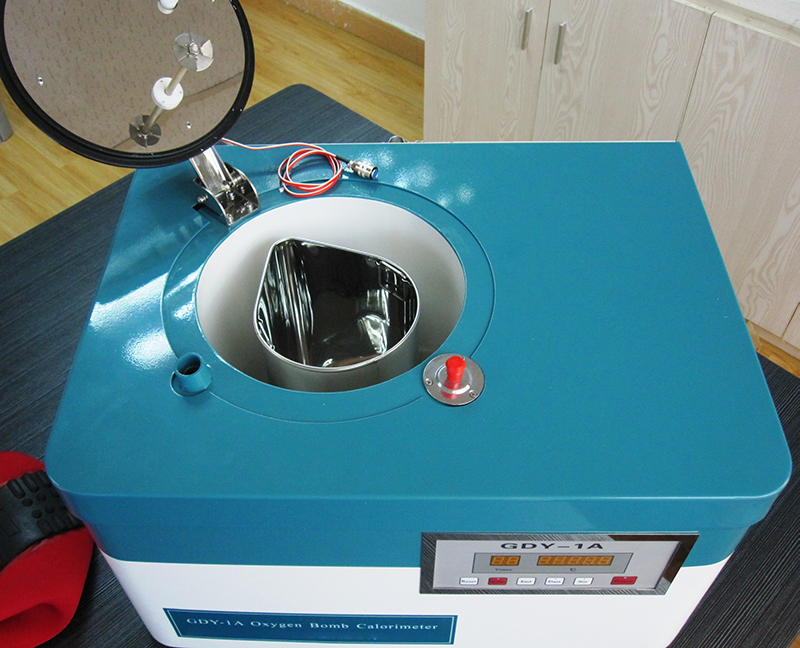

2) The inner tube of the instrument is made by stainless steel sheet, section of pears, put the barrel of water was 3000 grams, water cylinder with electric blender, to ensure that the inner tube water bath temperature uniformity.
3) Oxygen Bomb Calorimeter of the external water jacket is a double container and experiment when filled with water, through the water jacket mixer to cylinder in uniform temperature, formed to meet the test requirements of the constant temperature environment.
Specifications:
|
Product name |
GDY-1A Manual Type Oxygen Bomb Calorimeter for Coal |
|
Heat capacity |
(14000 ~ 15000)J/K |
|
Temperature resolution |
0.001 K |
|
Thermal error |
≤60J/g |
|
Temperature measurement range |
10 ℃~35 ℃ |
|
Repeatability error |
≤0.2% (Grade C) |
|
Pressure endured by Oxygen bomb |
20 MPa |
|
Ambient temperature |
15 ℃~28 ℃ (room temperature), The temperature fluctuation during each test should be not more than 1 ℃ |
|
Storage Temperature data |
31 |
|
Ambient humidity |
less than 85% |
|
Power supply |
AC(220±5%)V,50Hz |
|
Total power consumption |
less than 150W |
|
Dimensions |
600 mm × 460 mm × 430 mm (length × width × height, PC is not included) |
|
Note: If the test sample is pulverized coal samples, in order to obtain better test results, we recommend separately of the company's private press cake machine. |
|
|

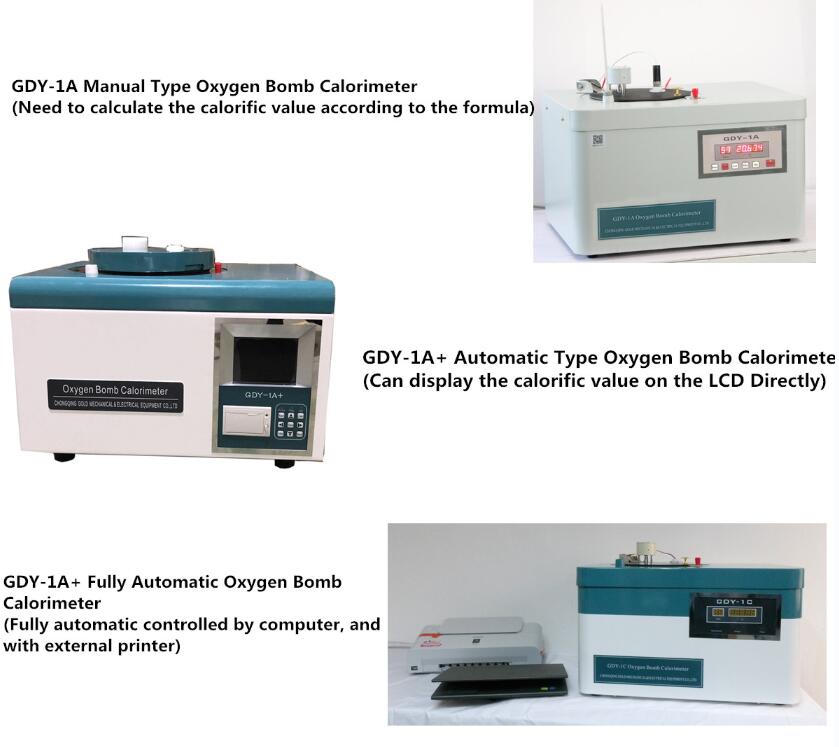

Parameter |
GDY-1A |
GDY-1A+ |
GDY-1C |
|
Feature |
Manual |
Digital with color LCD display |
Fully automated controlled by PC |
|
Heat capacity |
(14000~15000)J/K |
(14000~15000)J/K |
(14000~15000)J/K |
|
Temperature resolution |
0.001K |
0.001K |
0.001K |
|
Thermal error |
≤60J/g |
≤60J/g |
≤60J/g |
|
Repeatability error |
≤0.2%(Grade C) |
≤0.2%(Grade C) |
≤0.2%(Grade C) |
|
Pressure endured by oxygen bomb |
20MPa |
20MPa |
20MPa |
|
Computer interface |
no |
no |
yes |
|
Printing |
no |
With built-in printer |
With external printer |
|
Dimension |
600*460*430mm |
600*460*430mm |
600*460*430mm (PC is not included) |
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
It is applicable in the industry such as electrical power, coal, papermaking, petrochemical, oil, cement, farming, medical research, and instruction to measure the Calorific Value of combustible materials.
This instrument is used to measure the calorific value of solid, liquid and other combustible materials (coal, petroleum food, wood, biomass).
Brand-new metal furnace body structure, with better baseline and higher accuracy. The heating adopts indirect conduction method, which has high uniformity and stability, reduces pulse radiation, and is better than traditional heating mode.
Widescreen touch structure of industrial level, rich display information, including the set temperature, sample temperature, oxygen flow rate.
Function:Computerized usinf windos based software
