Efficient, convenient, and precise temperature control - clamp-on reactors help scientific research experiments

In modern laboratories and scientific research environments, high-temperature and high-pressure reactors have become indispensable core equipment. Clamp-type reactors are becoming the preferred equipment for more and more scientific researchers due to their efficient, convenient and safe design.

1. Product Overview

The high-end intelligent micro clamp-type reactor jointly developed by our company and major universities adopts advanced integrated precision processing technology. The reactor body is formed in one step by a large processing center, ensuring stability and sealing under high-pressure environments. This product adopts a flange fastening structure, which is evenly compressed by 6 high-temperature and high-pressure bolts. The lid of the reactor can be quickly removed by loosening the bolts, greatly shortening the experimental preparation and cleaning time.

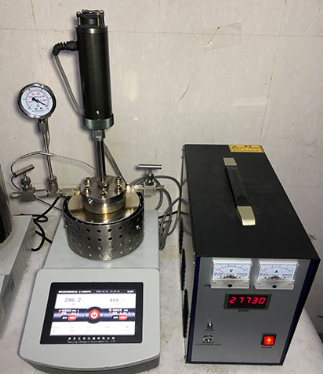

This reactor innovatively integrates ultrasonic technology, and directly acts on the material in the reactor body through the energy-gathering ultrasonic horn, so that the reaction system can obtain sufficient and efficient energy delivery under a constant temperature environment. The multiple effects of ultrasonic dispersion, crushing, activation, etc. can optimize the experimental process, improve reaction activity, and promote the smooth progress of chemical reactions.

Recommended product links:

 Clamp-type high-temperature and high-pressure reactor-Model A

 Ultrasonic high-pressure reactor-Model B

II. Product features

✅ Reactor body material: Made of Hastelloy, other corrosion-resistant materials can be customized according to different experimental requirements.

✅ Heating device: Adopts fixed module electric heater, which heats evenly and stably and has a long service life.

✅ Temperature control device: Built-in PID intelligent temperature control system imported from the United States, with automatic setting (AT) function, ensuring precise temperature control, and providing timing function.

✅ Temperature measurement system: Equipped with high-precision temperature sensor, deep into the reactor body, real-time monitoring of reaction temperature.

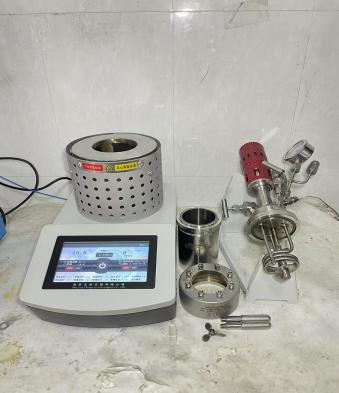

✅ Separable design of the reactor body: The reactor body and heater can be completely separated, which greatly improves the convenience of disassembly and improves experimental efficiency.

✅ Ultrasonic system:

Maximum power 2000W, efficient energy transmission

Transducer: 28KHz, optimized ultrasonic transmission

Tool head: titanium alloy, corrosion-resistant, high temperature resistant

✅ Brushless motor stirring: low noise, stable speed, ensuring experimental uniformity.

✅ High temperature and high pressure resistant valve: Φ3mm high temperature and corrosion resistant inlet and outlet valve to ensure experimental safety.

✅ High-precision stainless steel pressure gauge, real-time monitoring of the internal pressure of the reactor to prevent overpressure danger.

✅ Data export function: Support USB data export, can record furnace temperature, reactor temperature, time, speed, convenient experimental data management.

Recommended product link:

 Laboratory intelligent micro reactor-model C

 High-pressure ultrasonic reactor-model D

III. Application field

Clamp-type reactors are widely used in scientific research and experimental fields such as organic synthesis, pharmaceutical chemicals, catalytic reactions, nanomaterial preparation, and fine chemicals. It is especially suitable for micro-analysis and quantitative synthesis under high temperature and high pressure conditions, and shows excellent adaptability and efficiency in laboratory research.

Recommended product link:  Click to view more reactor products

If you are interested in this product, please contact us for details!
