Lead Time:
7-15 daysProduct Orgin:
ChinaShipping Port:
XiamenModel Number:
OLT-JT-45Compliance:
CE CertifiedPower:
AC 220±22V 50Hz 35AWarranty:
1 year

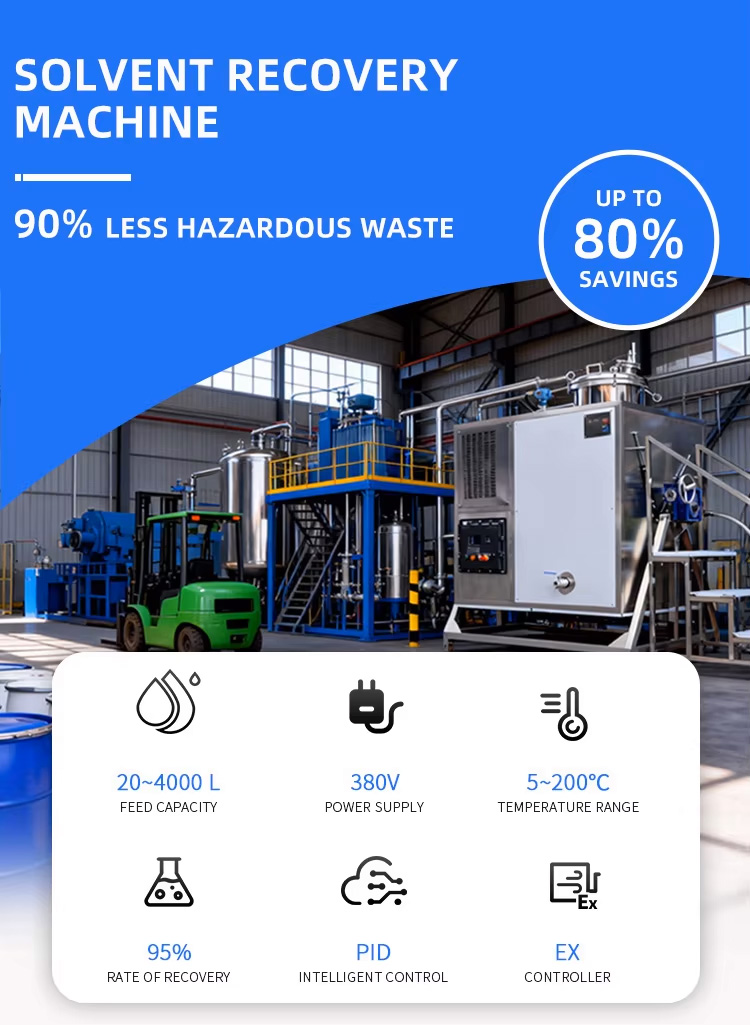

The Ollital Explosion-proof Solvent Recovery Machine is a high-recovery, safety-certified system designed to reclaim valuable solvents from contaminated waste streams. By utilizing electric heating, a sealed distillation tank, and intelligent PID control, the unit distills organic solvents such as alcohol, ethanol, toluene, gun wash (thinners), and various hydrocarbon-based fluids, separating pure solvent from sludge and particulate matter. The system is built to stringent ATEX/IECEx standards for use in hazardous areas where flammable vapors or dust may be present, making it ideal for automotive refinishing shops, printing plants, pharmaceutical manufacturing, and general industrial maintenance.
Primary Applications:
Automotive & General Refinishing: Recovery of gun wash (thinners, lacquer thinners) and cleaning solvents from spray booths.
Printing Industry: Recycling of blanket wash, press wash, and ink solvents from flexographic and gravure presses.
Pharmaceutical & Chemical Production: Recovery of alcohol (methanol, ethanol, IPA), toluene, acetone, and other organic solvents from reaction, extraction, and cleaning processes.
General Manufacturing & Parts Washing: On-site recycling of parts washer solvent and industrial degreasers.
Laboratory & R&D: Distillation of small batches of contaminated solvents for reagent-grade reuse.
The machine operates on a simple yet highly efficient batch distillation principle:
Filling & Heating: The contaminated solvent is poured into a 316L stainless steel distillation tank. An electric heating element or thermal oil jacket warms the solution.
Boiling & Evaporation: When the mixture reaches the boiling point of the target solvent, the solvent turns into vapor, leaving behind sludge, paint solids, oil, and other high-boiling residues.
Condensation: The solvent vapor passes through a high-efficiency condenser (air-cooled or water-cooled), where it returns to a liquid state.
Collection: The distilled, clean solvent flows into a separate collection container, ready for immediate reuse in your process.
The advanced PID controller ensures precise temperature control (±1–2°C), preventing degradation of heat-sensitive solvents and ensuring a high-purity end product. Explosion-proof components and sealed electrical enclosures guarantee safe operation in hazardous environments.
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
Professional Paint Thinner Recycler For Automotive Repair And 3d Printing Shops,Ensures High Purity Output
Solvent Recovery Machine Alcohol Thinner Toluene Ethanol Organic Solvent Gun Washing Water Explosion-proof Solvent Recovery - Buy Reagent Recovery Equipment recycling System Equipment
