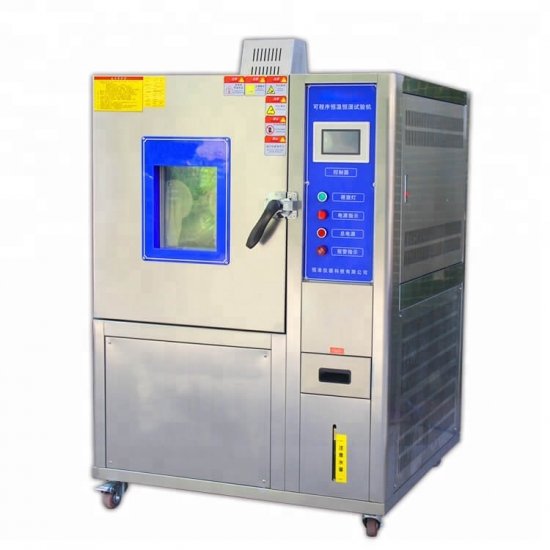

Temperature Humidity Test Chamber
Home
/Environmental Test Chambers
/Temperature Humidity Test Chamber
/
High quality 1.5L scale lab spray dryer equipment
Lab scale spray dryer is suitable for the production of in universities, research institutes and food and pharmaceutical chemical enterprises.
In the field of rubber and plastic processing, the open two-roll mill serves as the foundational equipment for material preparation. What distinguishe
In materials synthesis and sample preparation laboratories, there is a device with an extremely simple structure—no pressure gauge, no stirring motor,
In many product development processes, a key challenge for R&D personnel is how to thoroughly blend raw materials with differing properties to ach
In industries such as painting, printing, electronics, and automotive parts manufacturing, organic solvents are widely used in cleaning, thinning, deg
Lead Time:
3-5 daysProduct Orgin:
ChinaModel Number:
OLT-TH-150Minimum Order Quantity:
1Capacity:
150LWarranty:
1 yearTemperature range:
-20~150℃Packaging Details:
Standard xport wooden package
| Model | OLT-TH-80 | OLT-TH-150 | OLT-TH-225 | OLT-TH-408 | OLT-TH-800 | OLT-TH-1000 |
|---|---|---|---|---|---|---|
| Inner Chamber Size W*H*D(cm) | 40*50*40 | 50*60*50 | 60*75*50 | 80*85*60 | 100*100*80 | 100*100*100 |
| External Chamber Size W*H*D(cm) | 90*142*100 | 100*152*113 | 110*167*113 | 130*177*123 | 150*192*144 | 150*192*163 |
| Inner Chamber Volume(L) | 80 | 150 | 225 | 408 | 800 | 1000 |
| Temperature Range | -70°C~+150°C(180°C)(A:-20℃ B:-40℃ C:-60°℃ D:-70℃) (Optional) | |||||
| Humidity Range | N/A | |||||
|
Humidity range
|
20% ~ 98% RH | ||||
|
Temperature fluctuations
|
± 0.5 ℃ | ||||
|
Temperature deviation
|
± 2.0 ℃ | ||||
|
Humidity deviation
|
± 2.5% RH | ||||
|
Heating rate
|
3 ℃ / min | ||||
|
Cooling rate
|
1 ℃ / min | ||||
|

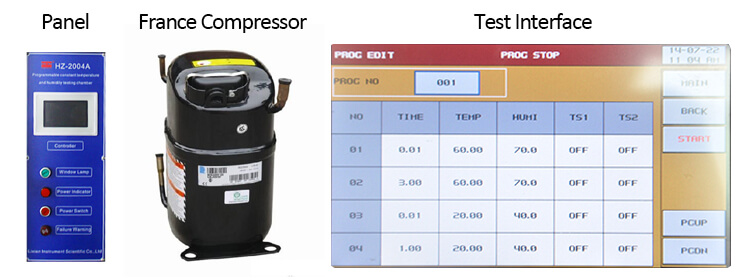

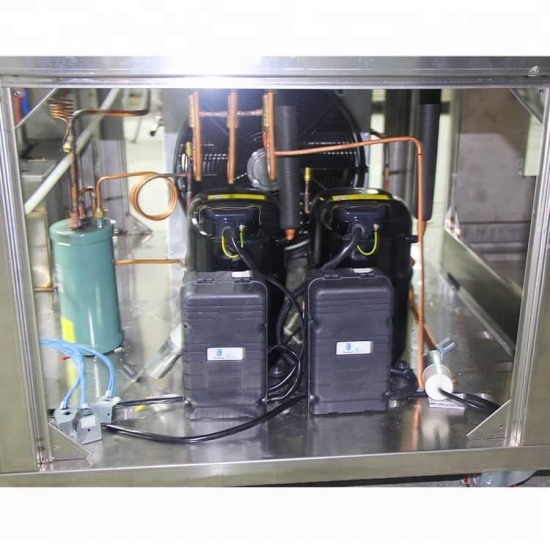

Cooling system
|
Mechanical compression refrigeration system | ||||
|

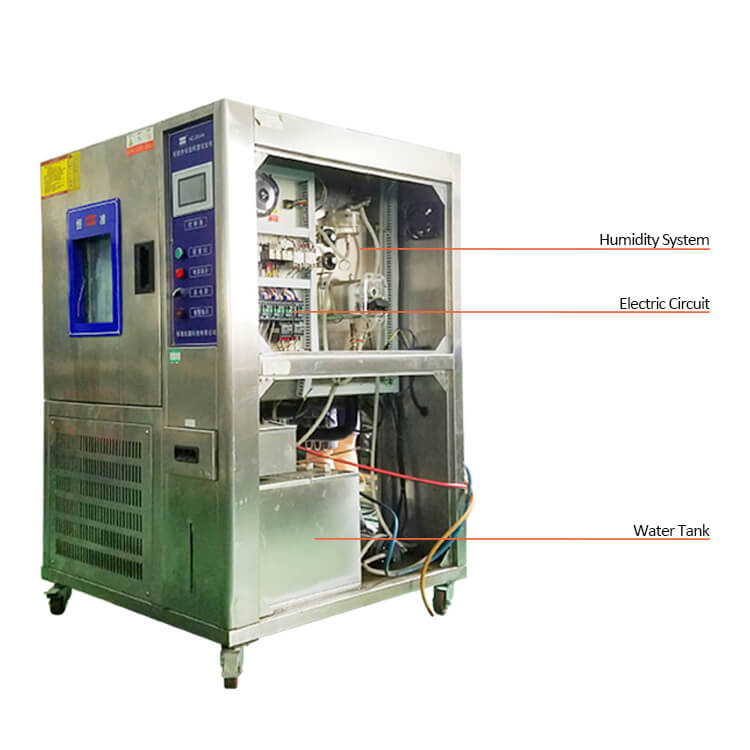

Humidifier
|
External isolation, stainless steel surface evaporation humidifier | ||||
|
Air circulation
|
Centrifugal wind fan | ||||
|

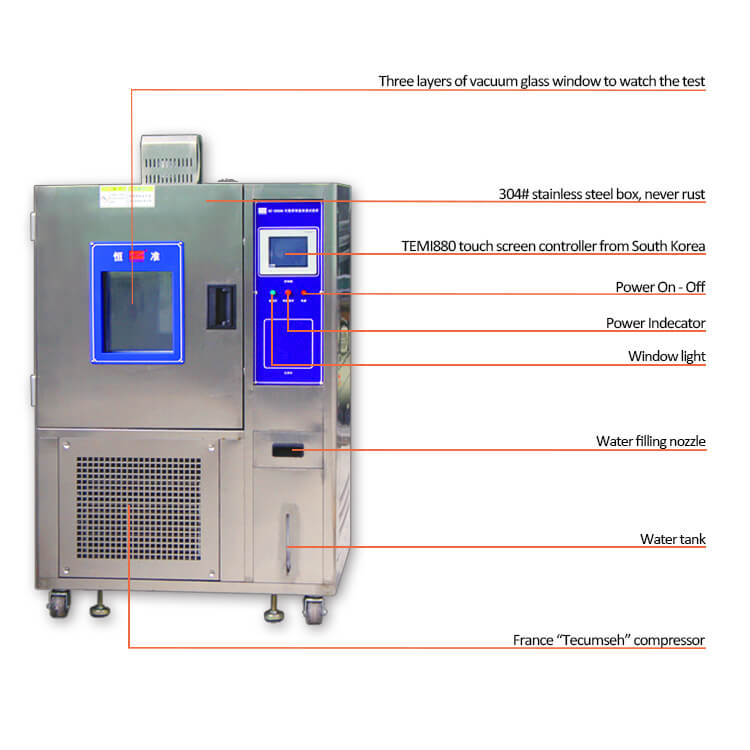

Exterior material
|
Steel Plate with protective coating | ||||
|
Interior material
|
SUS304 stainless steel | ||||

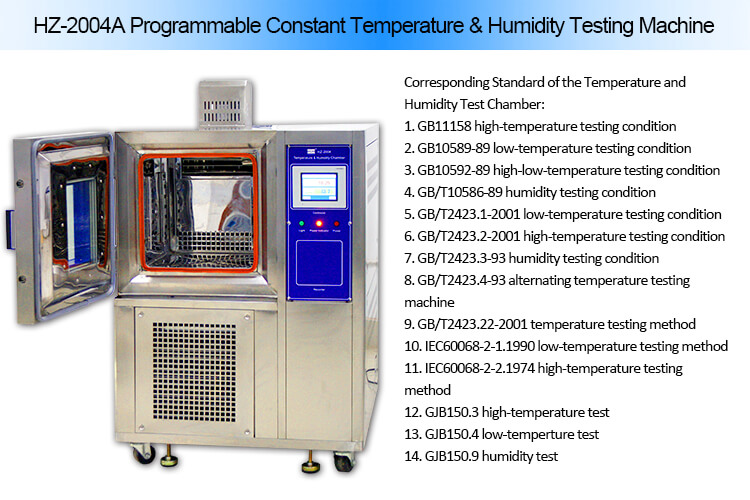

Corresponding standard :
1. GB11158 Technical conditions for high-temperature testing box
2. GB10589-89 Technical conditions for low-temperature testing box
3. GB10592-89 Technical conditions for high and low temperature testing box
4. GB/T10586-89 technical conditions for humidity testing chamber
5. GB/T2423.1-2001 Low-temperature testing methods
6. GB/T2423.2-2001 High-temperature testing methods
7. GB/T2423.3-93 Testing Method for humidity Test Chamber
8. GB/T2423.4-93 Alternating hot and humid testing method
9. GB/T2423.22-2001temperature testing method
10. IEC60068-2-1.1990 low-temperature testing method
11. IEC60068-2-2.1974 high-temperature testing method
12. GJB150.3 high-temperature testing
13. GJB150.4 low-temperature testing
14. GJB150.9 humid testing
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
