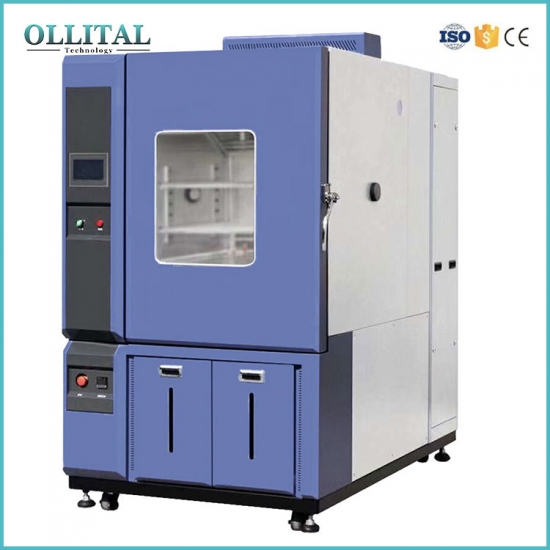

Programmable Environment Climate Change Chamber Digital Constant Temperature And Humidity Unit Controller

  • Model Number:

    OLT-CC-80D
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Voltage:

    108V-380V 50/60HZ
  • Power:

    3 Year
  • Warranty:

    Western Union, T/T, L/C
  • Dimension(L*W*H):

    70x95x150cm
  • Weight:

    160kg
  • Packaging Details:

    Standard export wooden box
  • Delivery Time:

    8-10 day
  • Product Details
  • 7” LCD controller with English interface
  • Inner made of SUS#304 stainless steel material
  • Meet all requirements for extreme testing and low temperature alternating
  • Working hours up to 4,320 hours testing without downtime
  • One access port (Dia.60mm)on the left side of chamber
  • USB date store and optional RS232
  • Viewing window
  • Sample holder
  • Water tank:1pc;
  • Weather cotton for humdity:1pc;
  • Castor:4pcs

Model

OLT-CC-80D

OLT-CC-150D

OLT-CC-225D

OLT-CC-408D

OLT-CC-800D

OLT-CC-1000D

Inner Size(cm)
(W x D x H)

40×50 ×40

50×60×50

50×75×60

60×85×80

80×100×100

100×100×100

Outer Size(cm)

(W x D x H)

70x95x150

105x110x170

105x120x185

115x140x195

155x140x210

155x160x210

Weight(kg)

160kg

220kg

300kg

550kg

960kg

1100kg

Standard parameter

Temp.control method

PID temperature humdity balance control

Temp.Range

ModelA:0℃ ~150℃     Model B:-20℃ ~150℃;

Model C:-40℃ ~150℃   Model D:-70℃ ~150℃

Humid.Range

20%~98%RH

Temp.Uniformity

±2℃

Temp.Fluctuation

±0.5℃

Humid.Uniformity

±3%R·H

Heating Rate

≥3℃/min

Cooling Rate

≥1~1.5℃/min

Cooling Method

Air cooled

Material

Inner

SUS# 304 stainless steel 1.2mm

Outer

Cold-roll steel sheet with Electrostatic coating or SUS# 304 stainless steel

Insulation

Ultra-fine glass fiber insulation cotton / rigid polyurethane foam

Configuration

Heater

Ceramic heater

Humidifier

Stainless steel armour humidifier

Cooling

Mechnical single stage refrigeration

Compressor

Original improted French Tecumseh hermetic compressor

Other function

Running error ; self diagnosis ; breakdown tips ; auto-power off

Safety protection

Protection for compressor

Overload protection;overheat protection ; overpressure protection

Protection for chamber

dry burn alarm;water shortage alarm;electric leakage protection;

Portection for fan

Overload protection;phase sequence protection

Programmable

Controller



Brand

Standard TATO 7" LCD touch screen , optional Sanwon TEMI series

Language

Standard English interface, other language is opitonal

Resolution

Temperature:0.01℃;Humidity:0.1%R·H

Program capacity

269patterns/ 13450 segments

Running method

Fix mode & program mode

Environmental Test Chambers are widely used in testing various types of materials for their tolerances of heat, cold, dry and humidity. It is applicable for quality inspection for all types of electronic products, electric appliance, and products from communication ,instruction , automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries. Unique shape with high performance material, whether you’re testing aerospace products, electronic instrumentation, materials, electrical and electronic products and various electronic components, our High low alternating temperature. humidity test chamber can give you a perfect solution. It ables to simulate a wide range of temperature and humidity environments, that temperatures range from -70℃to +150℃,and humidity range is from 20% to 98% RH. HUANYI can also offer you best solutions based on your own requirements.
