Model Number:
OLT-PS-5LCompliance:
CE CertifiedMinimum Order Quantity:
1Capacity:
5 LVoltage:
108V-240V 50/60HZPower:
200WTemperature range:
Less than 65°CDimension(L*W*H):
480*390*350mmWeight:
45 kgPackaging Details:
Export wooden packageDelivery Time:

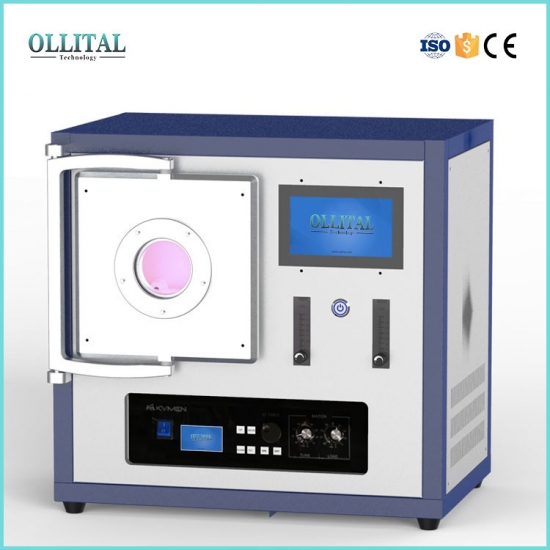

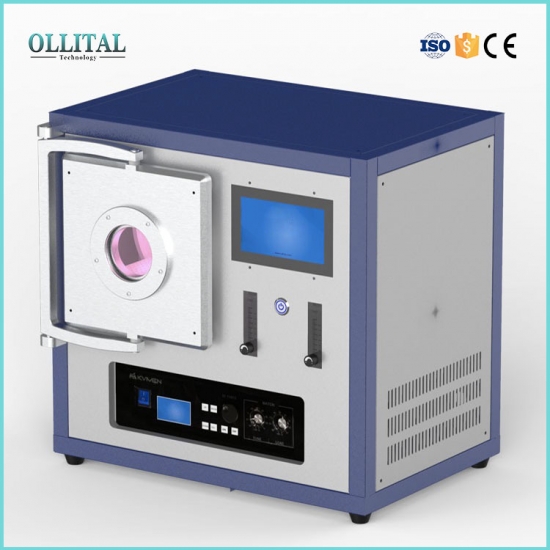

8-10 day5L lab Plasma Cleaner With Stainless Steel Chamber
Model
OLT-PS-5L
Power supply:
AC108V-240V
Working current:
Total working current not higher than1.2A (Not include the vacuum pump)
RF Power:
200W
Radio frequency:
13.56MKHZ(offset less than 0.2Hz)
Frequency offset
Less than 0.2KHz
Characteristic impedance:
50 Ohm,Automatic matching
Vacuum degree:
30Pa—100Pa
Gas flow:
10—100ml/min(Adjustable)
Process Control:
MCU Automatic and manual mode
Cleaning time:
1-6000 secds adjustable
Power supply:
10%-100% Adjustable
Inside chamber size
150mm×270mm
Outside dimension:
480*390*350mm
Weight:
45Kg
Vacuum chamber temperature
Less than 65°C
Cooling type:
Forced cooling
1. Environmental technologies: plasma process is the role of gas - solid coherent reactor consumes no water resources, no need to add chemicals and no environmental pollution.
2. Wide adaptability: regardless of processing substrate type, such as metals, semiconductors, oxides, and most of the polymer material can be a good deal;
3. Low temperature: close to room temperature, particularly suitable polymer materials, have a longer retention time and a higher surface tension than the corona and flame method.
4. Multifunctions: it involves only a shallow surface of polymer materials (10 -1000A), while preserving the characteristics of the material itself can give it one or more new features;
5. Low cost: the device is simple, easy operation and maintenance, continuous operation,a few bottles of gas can replace thousands of kilograms cleaning fluid
6. The whole process technology can be controlled: all the parameters can be setted by the computer and data recording
7. Treated geometry Unlimited: Big or small, simple or complex, parts or textiles can be processed.
