Model Number:
OLT-PS-5LCompliance:
CE CertifiedMinimum Order Quantity:
1Capacity:
5LVoltage:
108V-240V 50/60HZWarranty:
3 yearDimension(L*W*H):
440*390*200mmWeight:
35 kgPackaging Details:
Export wooden packageDelivery Time:

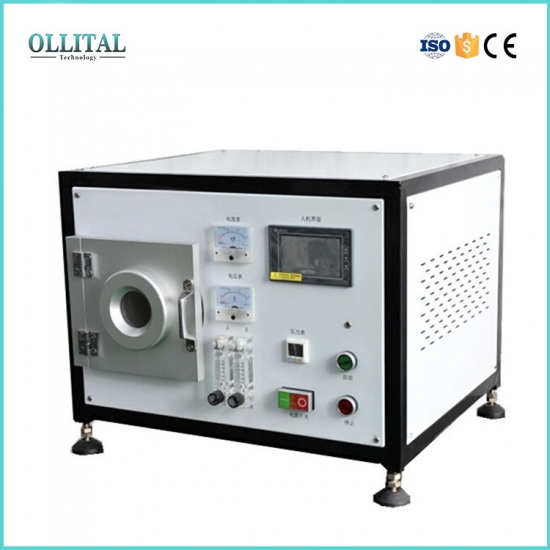

6-8 day5L vacuum Plasma Cleaner divided into two types, atmospheric and vacuum; it is widely used in semi-conductor, PCB, medical diagnosis, elastomer industry, optical industry,etc.
Model No.
OLT-PS-5L
Product Name
Plasma Cleaner
Display
LCD touch controller
Working voltage
AC 108V-240V, 50Hz
RF Frequency
13.56MHz (40KHz for optional)
Coupled mode
condenser coupling, without pollute sample
RF power
300 w
RF offset
< 0.2KHz
Characteristic impedance
50Ω, automatic matching
Vacuum degree
10-100Pa, equipped with a mechanical pump
Gas speed
Two way Float Flow Gas Control
10-100ml/min, adjustable
Control
PLC Touch Panel Program control
Inner chamber size

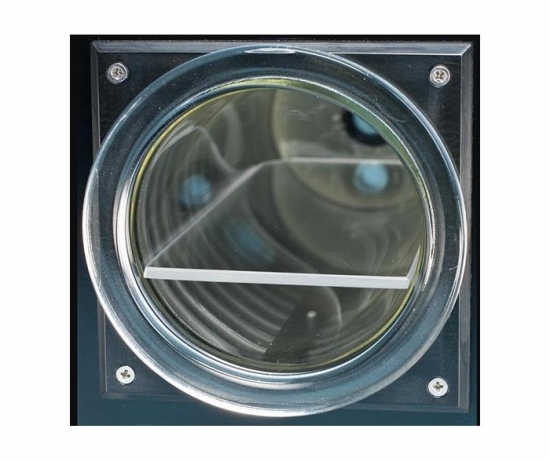

Quartz Chamber Dimension Φ 200*270mm
Capacity: 5L
Pressure Gauge
A simple digital pressure gauge is equipped for reading
Cooling way
Forced cooling
Outer dimension
440*390*200mm
Gross weight
35 kg
Our plasma cleaner have two type: 40KHz and13.56Mhz, and 2.45GHz RF Power for optional. Our standard chamber capacity has 2L, 5L,10L which used in laboratory. Basing on different industry, we can do customized chamber dimension with requested RF power.
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
