Model Number:
OLT-PS-5LCompliance:
CE CertifiedMinimum Order Quantity:
1Capacity:
5LVoltage:
108V-240V 50/60HZPower:
200WWarranty:
3 yearDimension(L*W*H):
480*390*350mmWeight:
45 kgPackaging Details:
Export wooden packageDelivery Time:

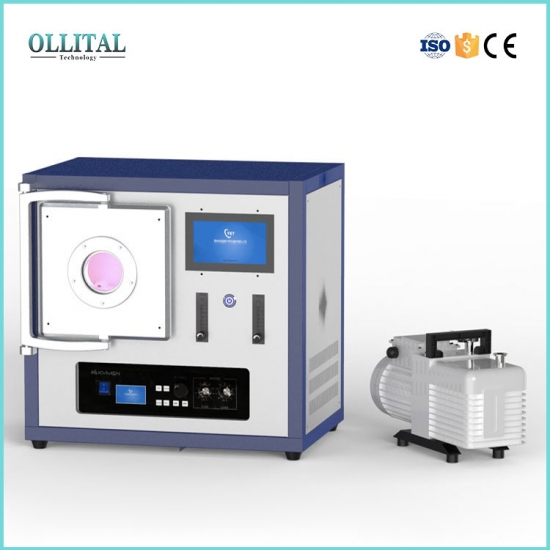

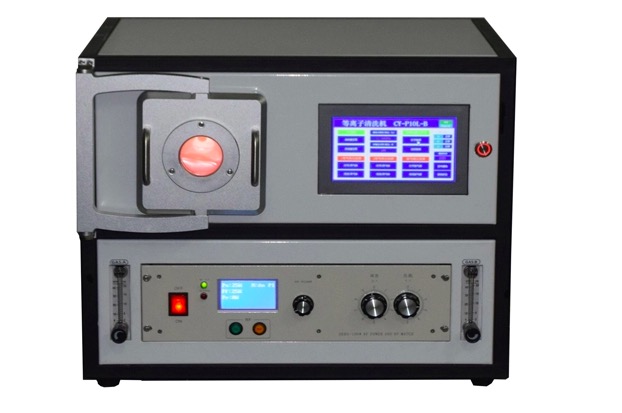

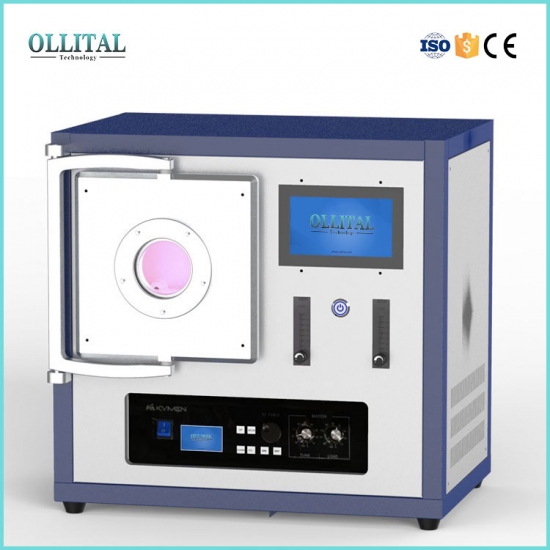

8-10 dayLab 13.56Mhz 5L Plasma Cleaner System 100W/150W With Stainless Steel Chamber For Glass,Cellphone Screen, semiconductor,Pe,Pvc
|
Model |
OLT-PS-5L |
| Power supply: | AC108V-240V |
| Working current: | Total working current not higher than1.2A (Not include the vacuum pump) |
| RF Power: | 200W |
| Radio frequency: | 13.56MKHZ(offset less than 0.2Hz) |
| Frequency offset | Less than 0.2KHz |
| Characteristic impedance: | 50 Ohm,Automatic matching |
| Vacuum degree: | 30Pa—100Pa |
| Gas flow: | 10—100ml/min(Adjustable) |
| Process Control: | MCU Automatic and manual mode |
| Cleaning time: | 1-6000 secds adjustable |
| Power supply: | 10%-100% Adjustable |
| Inside chamber size | 150mm×270mm |
| Outside dimension: | 480*390*350mm |
| Weight: | 45Kg |
| Vacuum chamber temperature | Less than 65°C |
| Cooling type: | Forced cooling |
1. Environmental technologies: plasma process is the role of gas - solid coherent reactor consumes no water resources, no need to add chemicals and no environmental pollution.
2. Wide adaptability: regardless of processing substrate type, such as metals, semiconductors, oxides, and most of the polymer material can be a good deal;
3. Low temperature: close to room temperature, particularly suitable polymer materials, have a longer retention time and a higher surface tension than the corona and flame method.
4. Multifunctions: it involves only a shallow surface of polymer materials (10 -1000A), while preserving the characteristics of the material itself can give it one or more new features;
5. Low cost: the device is simple, easy operation and maintenance, continuous operation,a few bottles of gas can replace thousands of kilograms cleaning fluid
6. The whole process technology can be controlled: all the parameters can be setted by the computer and data recording
7. Treated geometry Unlimited: Big or small, simple or complex, parts or textiles can be processed.
