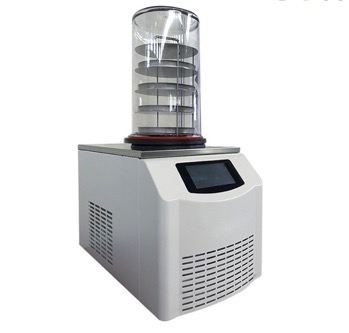

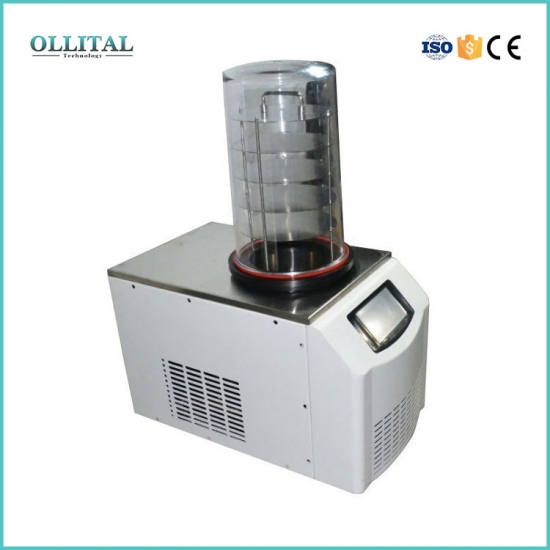

Lab Mini Benchtop Food Freeze Dry Machine

Model Number:
OLT-FD-10N
Compliance:
CE Certified
Minimum Order Quantity:
1
Mixing method:
LCD
Capacity:
1.5L
Voltage:
108V-240V 50/60HZ
Warranty:
1 year
Temperature range:
<-56℃
Dimension(L*W*H):
W450×D580×H(380+450) mm
Weight:
80KG
Packaging Details:
Export wooden package
Delivery Time:
6-8 day

Contact Now

email：kevin@ollital.com email：kevinollital@gmail.com

Product Details

OLT-FD-10N	Ordinary	Top-Press	Ordinary Multi-Manifolds	Top-Press Multi-Manifolds
No-load Temperature	<-56℃	<-56℃	<-56℃	<-56℃
Freeze Area	0.12 m2	0.08 m2	0.12 m2	0.08 m2
Plate Load Capacity	1.5 L	1 L	1.5 L	1 L
Ability to Capture Water	3Kg	3 Kg	3 Kg	3 Kg
Vacuum Degree	<10Pa	<10Pa	<10Pa	<10Pa
Machine Dimension	W450×D580×H(380+450) mm	W450×D580×H(380+450) mm	W450×D580×H(380+450) mm	W450×D580×H(380+450) mm
Sample Tray Size	4×Φ200mm	Ø 3×180 mm	4×Φ200mm	Ø 3×180 mm
Power	950W	950W	950W	950W
Power Supply	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz
interlayer spacing	70 mm	70 mm	70 mm	70 mm
Cold trap size	Ø215×160 mm	Ø215×160 mm	Ø215×160 mm	Ø215×160 mm
The number of Schering bottles	Ø22: 260	Ø22: 165	Ø22: 260	Ø22: 165
	Ø16: 480	Ø16: 285	Ø16: 480	Ø16: 285
	Ø12: 920	Ø12: 560	Ø12: 920	Ø12: 560

In lines with international standards of green enviroment friendly.
LCD display,display drying curve
Large opening trap,no coil inside,with samples prefreeze function
Refrigeration compressor imported,low noise
Cold trap and control panel were made by stainness steel,corrosion-resistant,easy to clean
Transparent drying room,secure and intuitive

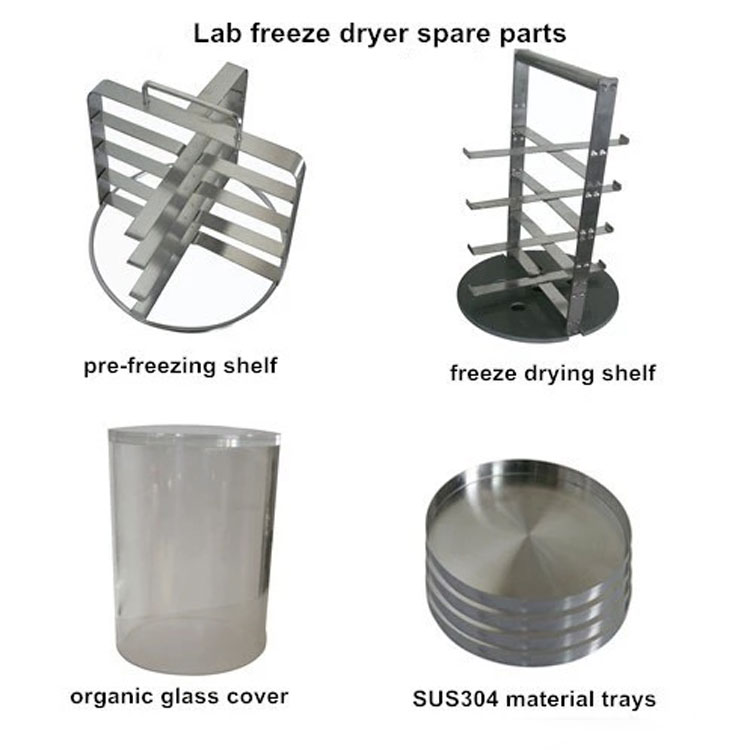

Stainless steel sample holder,common sample plate spacing adjustable
Small size and convenient operation
Optional nitrogen inflation valve

It applies a technical method by which moisure-bearing substances frozen in advance become dry in the cacuum owing to vaporizing away the moisure.
The substances frozen can be well-preserved for a long time and returned to their former state once being watered without losing their biochemical properties.
The freeze-drying technology is especially ideal for those bio-products sensitive to antibiotic,vaccines,blood products,enzymes and hormones.
This machine is also suitable for sample freezing experiments and small-scale production in labs.
This series can be categorized as :Normal model,Layer model,Normal model with many pumps,layer model with many pumps.
