Lab PLC Control System Mini Stainless Steel Spray Dryer

  • Model Number:

    OLT-SD8000B
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Screen:

    LCD
  • Capacity:

    1500-2000ml
  • Voltage:

    108V-240V 50/60HZ
  • Power:

    3.5kw
  • Warranty:

    1 year
  • Dimension(L*W*H):

    650*500*1550 ( mm )
  • Weight:

    120kg
  • Packaging Details:

    Export wooden package
  • Delivery Time:

    2-5 days
  • Product Details

Lab PLC Control System Mini Stainless Steel Spray Dryer




Model

OLT-SD8000B

Max capacity

 1500-2000ml/h

Temperature range of Inlet air

 30C -280C

Temperature range of outlet air

 40C -120C

Precision of temperature

 ± 1 C

Dryer time

 1.0-1.5 S

Speed of squirmy pump

 30-2000ml/h,

Consume of dryer air

 0-330m3 /h, max pressure: 686Pa

Consume of spray air

 0-4.2m3 /h, spray pressure: 2-5bar

Spray system

2 liquid nozzles with standard 0.7mm jet

options of 0.5/1.0/1.5/2.0/2.5mm

Spray direction

 downwards co-current

Power

 3.5KW   108V-240V

Dimensions

 650*500*1550 ( mm ) L * W* H


1. High efficient jet imported.

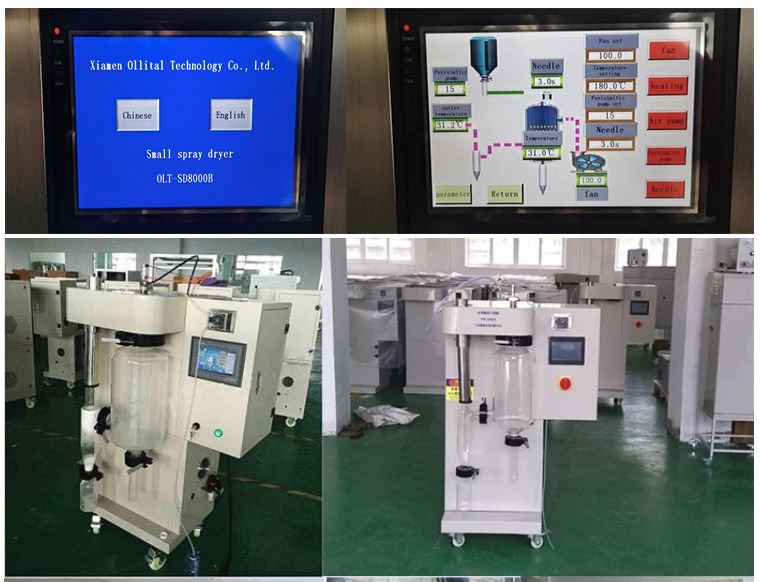

2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.
4. Manual controlling is available, be able to adjust technical parameters during the process of experiment
5. With jet cleaner (stylet), its frequency can be automatically adjusted.
6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won't be burned out by incorrect operation (Forcibly shut fan).
7. Spray chamber, cyclone separator, and receiving tank are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.
8. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
9. Two-flow spray atomizing structure, whole machine is made of high quality stainless steel, compact design no accessory equipment is needed.
10. Use PID controller, the accuracy of heating temperature is around±1°C.
11. A filter has been equipped to the inlet unit to prevent the sample from contamination.
12. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution. To make sure the process conducted steady and smoothly.
13. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
14. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
15. Innovative tower wall purging device, improves the material recycling rate.

Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.



No

Name

Qty

1

Drying Chamber

1

2

Cyclone

1

3

Fan

1

4

Peristaltic pump

1

5

Air compressor

1

6

Collection bottle 500ml

1

7

Sample collection tube

1

8

Silicone tube 6mm

1.5m

9

Nozzle

1

10

Black Clamp

1

11

Nozzle cleaner

1

12

Power wire

1


Packing and Shipping

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
