Laboratory Stainless Steel Spray Dryer Machine

Stainless steel spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying
  • Product Details

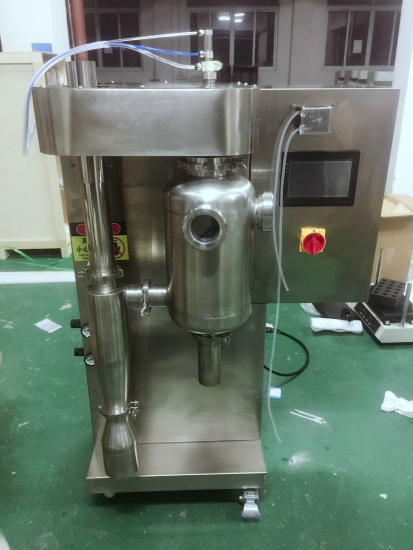

Laboratory Stainless Steel Spray Dryer Machine

The lab spray dryer is mainly used for powder prodcution in lab.It is widely used in college,research institute and food or medicine field.The dryer suits all kind  of solutions like emulsion and suspension.It also suits to thermal sensitive materials such as biologicals,biopesticide and enzymes.Activity of the material won’t get affected when drying.




1. High-tech nozzle,high efficiency.

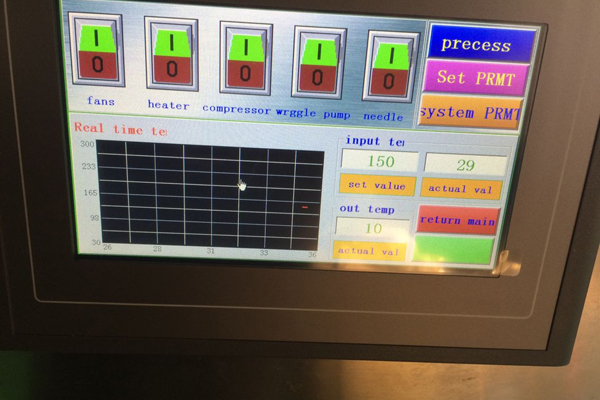

2. LCD touch-screen display:inlet air temperature/outlet air temperature/pump speed/air volume

  /needle frequency.

3. Nozzle cleaner(needle)is set in the machine,and nozzle can be cleaned automaticaly by the needle when blocked.Needle frequency can be adjusted.

4. Shutdown protection function:the system will stop when pressing the stop botton,all parts except the fan will stop working.Heating system won’t be damaged in this way.

5. Material won’t get polluted due to the special material of the atomizing

drying and collection system.

6. Two-fluid nozzle,stainless steel,compact stucture,no accessory device.

7. PID constant temperature control,precise temperature control,precision is ±1℃.

8. Feed rate can be adjusted by the peristaltic pump,Min. samples can reach 30ml.

9. Uniform product powder,above 95% powder keep within same size range.


1. Chemical industry: hydrated silica, concrete additives, barium sulfate, basic chromic sulfate, alumina, titania, kaolin, ferrite, steatite, carbide, fertilizers, dyes, scouring agents, ACR assistants, latex, water purifiers, resins, plastics, cryolite.

2. Food Industry: dextrin, maltose, albumen powder, vitelline powder, compound sugar, granular grease, instant coffee, amylum, flavors, garden stuff. It is applied in drying of some kinds of liquid material, such as solutions, emulsions, suspensions, liquid pastes, etc.
3. Dairy: skim milk powder, whole milk powder, soy milk powder, ice cream powder, milk extract powder, etc.
4. Pharmaceutical industry: Chinese drugs and western medicine powder, antibiotics, biochemical products, vitamins, pesticides, hydrolyzed proteins, enzymes, single cell proteins, etc.
5. Building material industry: ceramic body, frit, superfine powder.
6. Environmental protection: flue gas desulfurization, disposal of black liquor and wastewater of pharmaceutical factories.

7. Others: fishmeal waste, feed, etc.
