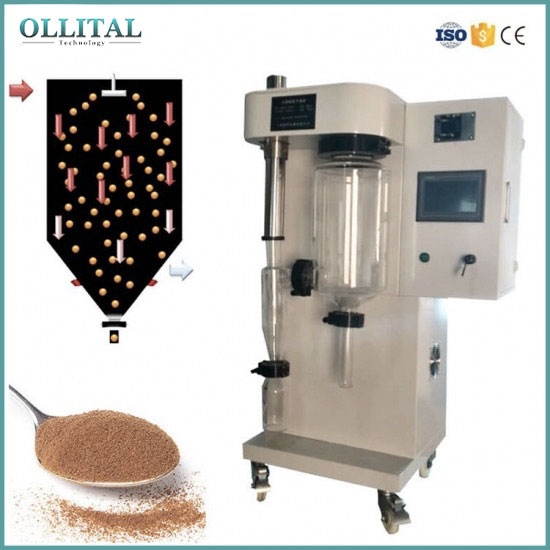

High quality 1.5L scale lab spray dryer equipment
Lab scale spray dryer is suitable for the production of in universities, research institutes and food and pharmaceutical chemical enterprises.
The machine is adopted programmable control system touch panel operation, stepless transduction speed shift with output display function.
Happy Halloween to All Staff and Happy Birthday to All Employees Whose Birthday is in October OLLITAL Technology Company has maintained an excellent t
How to use hydrothermal synthesis autoclave reactor correctly? Hydrothermal synthesis reactor is a kind of closed container to dissolve the refra
10L Spray Dryer is Shipped to Europe In September 20th, European customers ordered 10L spray dryer for the production of maltose powder, and the coope
Thank the Canadian Customer for Two Orders Dr. David of Canada bought the first 150L sterilizer in July. After the customer got the machine, the effec
Model Number:
OLT-SD-15Compliance:
CE CertifiedMinimum Order Quantity:
1Capacity:
4500WVoltage:
108V-220V 50/60HZPower:
1 YearsWarranty:
Western Union, T/T, L/CDimension(L*W*H):
940*850*1500mmPackaging Details:
Export wooden packageDelivery Time:
6-8 daySpray drying machine is especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
|
Item |
Unit |
OLT-SD-15 |
OLT-SD-30 |
|
Max capacity |
ml/h |
1500-2000 |
3000 |
|
Temperature range of inlet air |
℃ |
40℃ ~ 300℃ |
30℃ ~ 300℃ |
|
Temperature range of outlet air |
℃ |
40℃ ~ 140℃ |
30℃ ~ 140℃ |
|
Spray system |
/ |
Two-fluid nozzle |
Two-fluid nozzle |
|
Precision of temp |
℃ |
±1 |
|
|
Dryer time |
S |
1.0 ~ 1.5 |
|
|
Speed of squirt pump |
ml/h |
50 ~ 2000 |
3000 |
|
Nozzle size |
mm |
0.5/0.7/0.75/1.0/1.5/2.0 |
|
|
Spray direction |
/ |
Downwards co-current |
|
|
Heater Power |
/ |
3500W |
4500W |
|
Total power |
/ |
4500W 220V |
5500W 220V |
|
Heat source |
/ |
Electric |
|
|
Air compressor |
/ |
Built-in oil-free air compressor |
|
|
Dried powder restoring rate |
% |
≥92 (Maltodextrin>92) |
|
|
Dimension |
mm |
940*850*1500 |
1700*1100*150 |
|
Maximum moisture evaporation |
Kg/h |
2 |
3 |
1. LCD control system, language can customize your local langage:

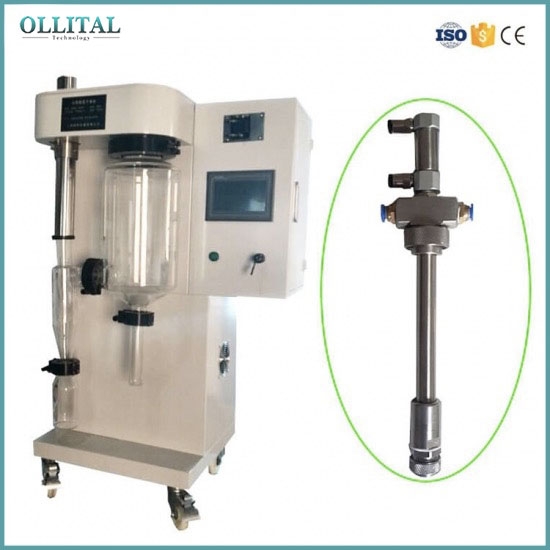

2. Two fluid spray drying nozzle can buy separately:

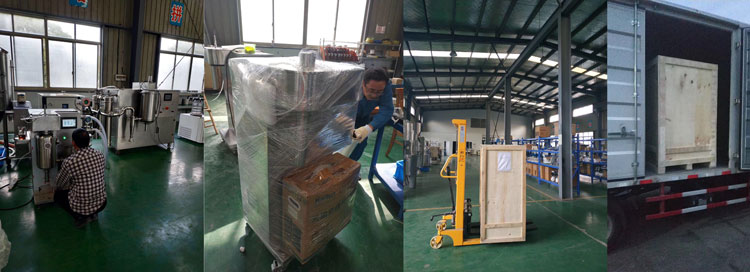

Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
Stainless steel spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying
High quality 1.5L scale lab spray dryer equipment
Lab scale spray dryer is suitable for the production of in universities, research institutes and food and pharmaceutical chemical enterprises.
