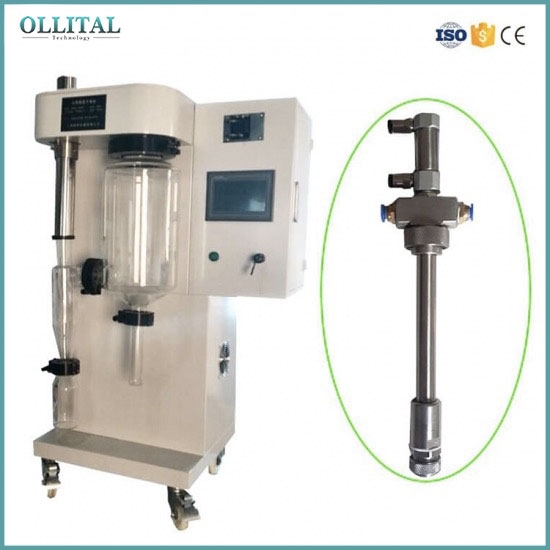

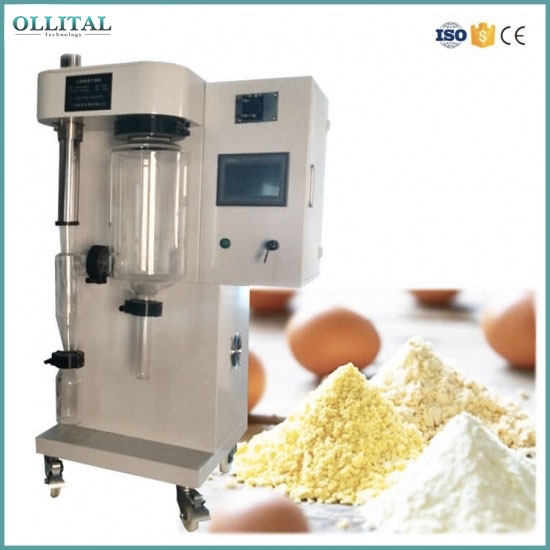

Laboratory Spray Dryer With Built-in Air Compressor

  • Model Number:

    OLT-SD-1500
  • Minimum Order Quantity:

    1
  • Capacity:

    3.5KW
  • Speed:

    30-2000ml/h
  • Voltage:

    108V-220V 50/60HZ
  • Power:

    1 Years
  • Warranty:

    Western Union, T/T, L/C
  • Dimension(L*W*H):

    650*500*1550 ( mm )
  • Packaging Details:

    Export wooden package
  • Delivery Time:

    6-8 day
  • Product Details

1 Various fields where the production of a free powder sample is required

2 OLT-SD-1500 has successfully processed samples in the following areas: beverage, flavours and colourings, milk and egg products, plant and vegetable extracts. pharmaceuticals, synthetics heat sensitive materials, palstics polymers and resins, perfumes, blood, ceramics and superconductors biochemicals, dyestuffs, soaps and detergents, foodstuffs, adehesives, oxides, textiles, bones, teeth and tooth amalgam and many others.


Model

OLT-SD-1500

Max capacity

 1500-2000ml/h

Temperature range of Inlet air

 30C -280C

Temperature range of outlet air

 40C -120C

Precision of temperature

 ± 1 C

Dryer time

 1.0-1.5 S

Speed of squirmy pump

 30-2000ml/h,

Consume of dryer air

 0-330m3 /h, max pressure: 686Pa

Consume of spray air

 0-4.2m3 /h, spray pressure: 2-5bar

Spray system

2 liquid nozzles with standard 0.7mm jet

options of 0.5/1.0/1.5/2.0/2.5mm

Spray direction

 downwards co-current

Power

 3.5KW   220V

Dimensions

 650*500*1550 ( mm ) L * W* H



1 Special for lab research, min 20-30ml liquid to finish one test

2 All borosiliscate glass for easy visual monitoring of process status

3 Spray chamber, cyclone separator, receiving talk are all made of borosilicate glass which can resist strong acid/alkali, high temperature, it can work in a no-pollution and stable enviroment

4 Easy to clean and very simple to assemble and break down

5 The air compressor is no oil and don't pollute compress air, the sound is low than 50db and following the GMP understands.

6 Inlet/outlet temperature is accurate controlled by PID.

7 The unit is  self contained and supplied complete and ready for immediate operation

8 Using screed touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency

9 Product feeding with RS2559605 rotary pump, capacity is adjustable

10 Automatic de-blocking device prevents the nozzle from becoming blocked and varaably controlled

Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
