Laboratory Mini Bench-top Stainless Steel Spray Dryer Machine

  • Model Number:

    OLT-SS-2000
  • Minimum Order Quantity:

    1
  • Capacity:

    1000W
  • Voltage:

    108V-220V 50/60HZ
  • Power:

    1 Years
  • Warranty:

    Western Union, T/T, L/C
  • Dimension(L*W*H):

    800*550*900mm
  • Weight:

    80KG
  • Packaging Details:

    Export wooden package
  • Delivery Time:

    6-8 day
  • Product Details

Laboratory Mini Bench-top Stainless Steel Spray Dryer Machine


Easy to use

PLC automatic control,One-click boot.

Color Touch Screen,Fast setup and cleaning times

 Scale up to pilot or industrial scale possible.

Visible process due to glass assembly

Adjustable particle size (1 – 25 microns)

Sr. No Parameter
OLT-SD8000B
1 Power 1500W
2 Voltage 220V, 50-60HZ
3 Min. Outlet Temp. 80℃
4 Evaporating Capacity 500ml/h
5 Airflow 0~330m3/h
6 Max. Inlet Temp 200℃
7 Heater power 1000W
8 Temp. precision ±1℃
9 Nizzle jet 0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available)
10 Nozzle type Two fluid nozzle
11 Possible particle size range 1~25μm
12 Mean Residence Time 1~1.5 second
13 Operation mode Automatic / Manual
14 Minimum Sample Volume 20ml
15 Spray Chamber Material SUS304 Stainless Steel
16 Cyclone Separator Material SUS304 Stainless Steel
17 Receiving Tank Material SUS304 Stainless Steel
18 Body Material SUS304 Stainless Steel
19 Seal of Cyclone/cylinder Silicone
20 Gas type Compressed Air(for aqueous)
21 Dimension 800*550*900mm
22 Weight 80KG
23 Display 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency
24 Thermal Protection Blower does not stop until temp <90℃
25 Deblocking Automatic
26 Inert Loop (for organic solvents) Optional

1.For aqueous solution and organic solvent

OLT-SD-500 laboratory spray dryer has the basic type and the organic solvent type YC-501 (with inert loop system). OLT-SD-500 laboratory spray dryer is for aqueous solution

2.Homocentric spray atomizer

During experiments, the new spray atomizer would never be off-center in atomization, and there won’t be affected recovery rate by spraying on the bottle wall. The spray atomizer can change the spray site to improve the spray effect by moving up and down; notably, the spray atomizer has excellent adaptability to material with high viscosity and few blocking situation;

3.The exhaust air is discharged after recovery in the bag filter

OLT-SD-500 laboratory spray dryer standard tail gas dedusting equipment can reduce environmental pollution while effectively improving the yield, especially the yield of difficult recycle;

4.Controls & Functionality

OLT-SD-500 laboratory spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying. The operator can control the following functions:

Inlet Temperature

Gasflow Volume

Pump Speed

De-blocker Frequency

5.Two Fluid Nozzle with SUS316L stainless steel

The stainless steel spray assembly consists of an inner tube for the liquid sample leading to a small diameter jet. An outer tube directs compressed air to the nozzle. All units are supplied with 0.7mm jets, other sizes are available as accessories.The spray assembly incorporates an automatic de-blocking device that prevents the jet nozzle from becoming blocked, the de-blocking needle is activated by an integral compressor. De-blocking is sometimes necessary with materials which may solidify or when large particles in suspension cause blockages in the jet.

Trusted by the users  Over 1,500 customers of top universities, enterprises and research institutes use our mini spray dryer. And exported to more than 40 countries & regions such as the United States, Italy, South Korea, Mexico,Singapore, Canada, Malaysia, Chile and Russia.

6,Areas of application

OLT-SD-500 laboratory spray dryer can be used in a wide range of applications where the production of a free-flowing powder sample is required.This technique has successfully processed materials in the following areas:

 Beverages • Flavours & Colourings

Milk & Egg Products • Plant & Vegetable Extracts

Pharmaceuticals • Heat Sensitive Materials

Plastics • Polymers and Resins • Perfumes

Ceramics & Advanced Materials

Soaps & Detergents • Blood • Dyestuffs

Foodstuffs • Adhesives • Oxides •Textiles

Bones, Teeth & Tooth Amalgam and many others

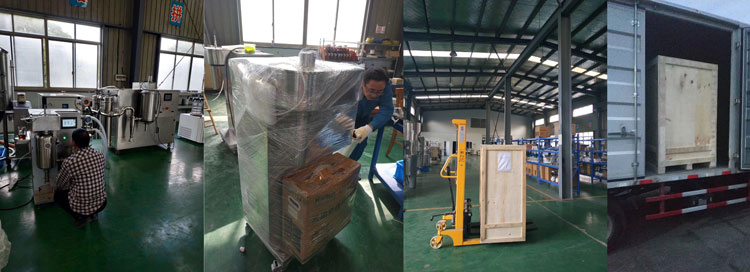

Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
