Laboratory Mini Bench-top Small Spray Drying Machine

  • Model Number:

    OLT-SD8000B
  • Minimum Order Quantity:

    1
  • Capacity:

    3000W
  • Voltage:

    108V-220V 50/60HZ
  • Power:

    1 Years
  • Warranty:

    Western Union, T/T, L/C
  • Weight:

    140kg
  • Packaging Details:

    Export wooden package
  • Delivery Time:

    6-8 day
  • Product Details

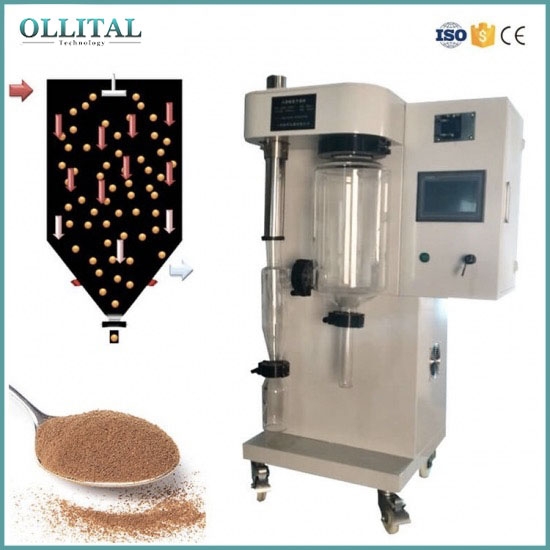

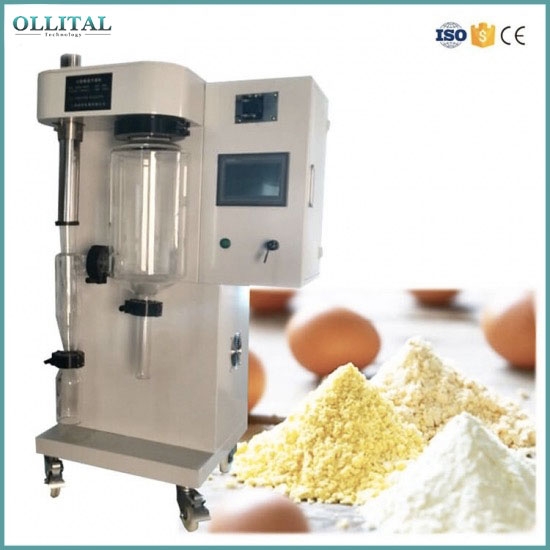

Laboratory Mini Bench-top Small Spray Drying Machine



Laboratory table top spray dryer is the latest type of OLLITAL  which adopts advanced international technology and spare parts.

Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.

Item
Unit
OLT-SD8000B
Max capacity
ml/h
1500-2000
Temperature range of inlet air
40℃ ~ 300℃
Temperature range of outlet air
40℃ ~ 140℃
Precision of temperature
±1
Dryer time
S
1.0 ~ 1.5
Speed of squirt pump
ml/h
50 ~ 2000
Spray system
/
Two-fluid nozzle
Nozzle size
mm
0.5
Spray direction
/
Downwards co-current
Heater Power
/
3KW 220V
Heat source
/
Electric
Net weight
kg
140
Air compressor
/
Built-in oil-free air compressor

1. High efficient jet imported.

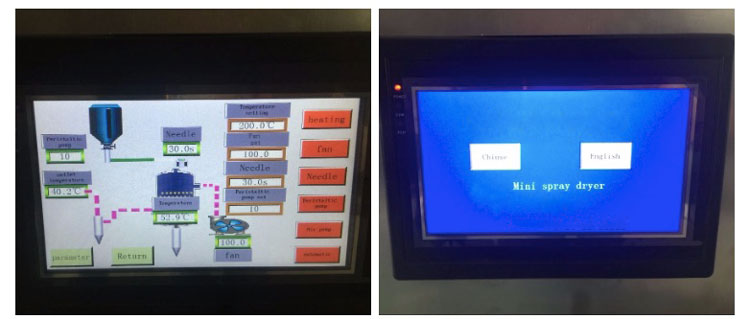

2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.
4. Manual controlling is available, be able to adjust technical parameters during the process of experiment
5. With jet cleaner (stylet), its frequency can be automatically adjusted.
6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won’t be burned out by incorrect operation (Forcibly shut fan).
7. Spray chamber, cyclone separator, and receiving tank are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.
8. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.

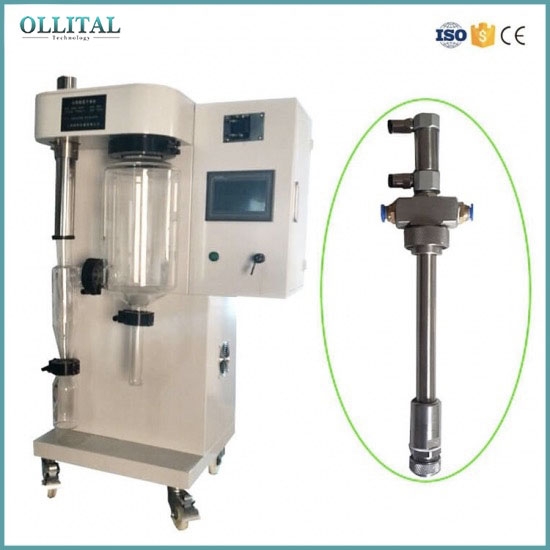

9. Two-flow spray atomizing structure, whole machine is made of high quality stainless steel, compact design no accessory equipment is needed.
10. Use PID controller, the accuracy of heating temperature is around±1°C.
11. A filter has been equipped to the inlet unit to prevent the sample from contamination.
12. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution. To make sure the process conducted steady and smoothly.
13. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
14. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
15. Innovative tower wall purging device, improves the material recycling rate.

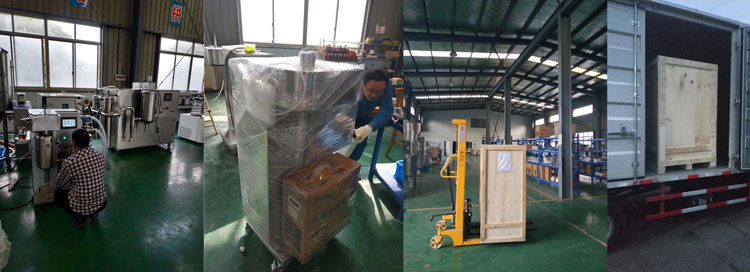

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
