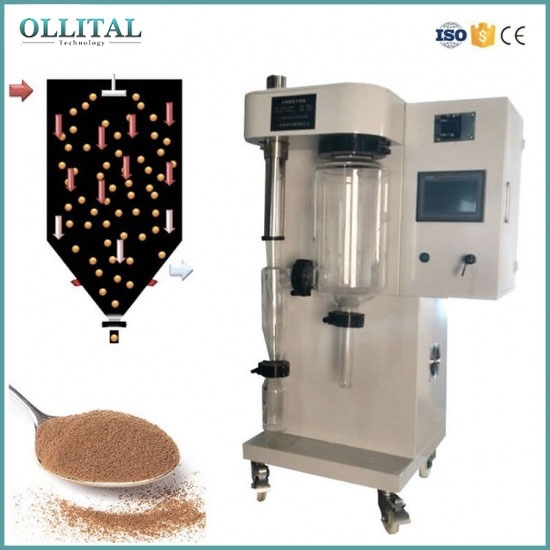

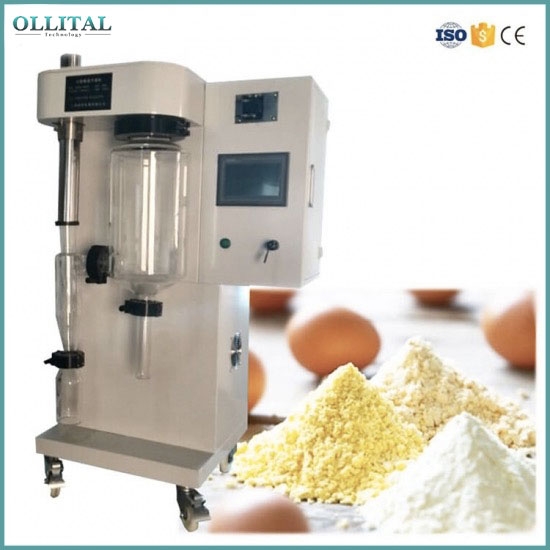

Lab PID Controller Mini Spray Dryer With LCD Touch Screen

  • Model Number:

    OLT-SD-1500
  • Minimum Order Quantity:

    1
  • Capacity:

    3.5KW
  • Voltage:

    108V-220V 50/60HZ
  • Power:

    1 Years
  • Dimension(L*W*H):

    650*500*1550 ( mm )
  • Packaging Details:

    Export wooden package
  • Delivery Time:

    6-8 day
  • Product Details

Laboratory spray dryer (device) is a Division I introduce and absorb advanced technology, manufacturing in the country; major components and electrical imports. Machine design compact, portable, self-contained body of the machine, power can be used without auxiliary facilities. PLC control, touch screen display, Chinese and English operation interface.

Model

OLT-SD-1500

Max capacity

 1500-2000ml/h

Temperature range of Inlet air

 30C -280C

Temperature range of outlet air

 40C -120C

Precision of temperature

 ± 1 C

Dryer time

 1.0-1.5 S

Speed of squirmy pump

 30-2000ml/h,

Consume of dryer air

 0-330m3 /h, max pressure: 686Pa

Consume of spray air

 0-4.2m3 /h, spray pressure: 2-5bar

Spray system

2 liquid nozzles with standard 0.7mm jet

options of 0.5/1.0/1.5/2.0/2.5mm

Spray direction

 downwards co-current

Power

 3.5KW   220V

Dimensions

 650*500*1550 ( mm ) L * W* H



Lab scale spray dryer ,various fields where the production of a free powder sample is required.

This type is popular in field of food, biology, material, pharmacy enterprise or university, R&D institute. Especially some non-heat material, that can be sprayed to power wonderfully, because material touch heat air in a little time, and high temperature do not destroy the component of production. Flavor, dairy, plant and vegetable extract liquid, pharmacy. Biology, chemical, material. Resins, ceramics and superconductors biochemical, etc.



1. Designed for research and development.
2. Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment, and the whole process can be inspected. All the spare parts are easy to install and wash.
3. The air compressor is no oil and do not pollute compress air. The power from receiving tank has a good flow. The sound is low than 60dB, and following the GMP standards.
4. Inlet/outlet temperature is accurate controlled by PID.
5. Supplied complete and ready for most spray drying applications.
6. The unit is self contained and supplied complete and ready for immediate operation.

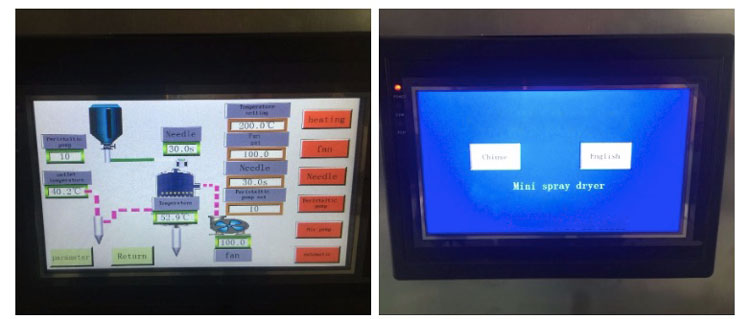

7. Using preface touchable interface display operation, operator can control temperature, airflow volume, air pressure, pump speed and de-blocker frequency.
8. Product feeding with RS2559605 rotary pump, capacity is adjustable.
9. Out ring jacket supplying compressed air to nozzle and atomization is formed at the outlet of internal product pipe.
10. Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.
11. Equipped with air filter to remove and collect fine particles in exhausted air.

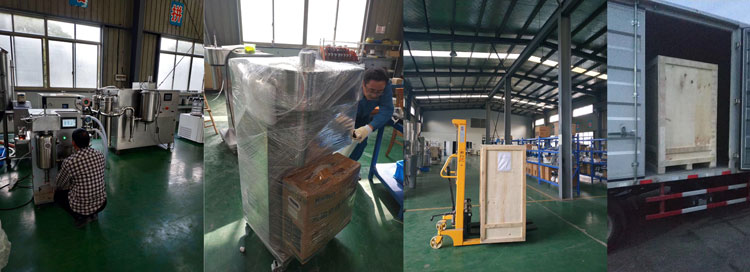

Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
