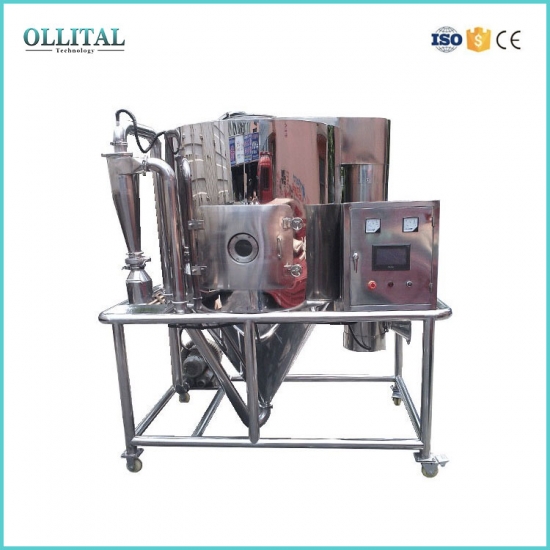

Lab 3L Stainless Steel Spray Drying Equipment

  • Model Number:

    OLT-S30
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Capacity:

    3 L
  • Voltage:

    108V-240V 50/60HZ
  • Dimension(L*W*H):

    1700*1100* 150mm
  • Packaging Details:

    Standard export wooden box
  • Delivery Time:

    6-8 day
  • Product Details

Lab 3L Stainless Steel Spray Drying Equipment



Item
Unit

OLT-S15

OLT-S30

OLT-S30C

OLT-S50

OLT-S100

Max capacity
ml/h
1500-2000
3000
3000
5000
10000
Temperature range of inlet air
40℃ ~ 300℃
30℃ ~ 300℃
30℃ ~ 300℃
140°C ~ 300°C Adjustable
50°C ~ 300°C
Temperature range of outlet air
40℃ ~ 140℃
30℃ ~ 140℃
30℃ ~ 140℃
80°C ~ 90°C
30°C ~ 150°C
Spray system
/
Two-fluid nozzle
Two-fluid nozzle
Centrifugal nozzle
Centrifugal nozzle
Centrifugal nozzle
Precision of temp
±1
Dryer time
S
1.0 ~ 1.5
Speed of squirt pump
ml/h
50 ~ 2000
3000
3000
5000
10000
Nozzle size
mm
0.5/0.7/0.75/1.0/1.5/2.0
/
Spray direction
/
Downwards co-current
Heater Power
/

3KW 108V-240V

Total power
/
10KW 380V
Heat source
/
Electric
Air compressor
/
Built-in oil-free air compressor
Dried powder restoring rate
%
≥95
≥98
Dimension
mm
940*850*
1500
1700*1100*
150
1700*1100*
150
1800*930*
2200
2500*1600*
2800
Maximum moisture evaporation
Kg/h
2
3
3
5
10

1.Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.

2. Imported Schneider electrical components which is more stability.

3. PLC control system, make your research more easier and efficient.

4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.
10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.


1.Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs.

2.Most solutions and supernsions can be spray dried providing.

3.Food, biology, material, pharmacy, university, and R&D institute.

4.Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.

Air through filtering and heating, enter the hot air distributor which is at the top of spray dryer, hot air spiraling evenly into the drying chamber. Liquid through the high-speed centrifugal automizer which is at the top of drying chamber, (rotating) centrifugal spray into tiny fog droplet, then contact with the hot air flow, drying finish product in a very short time and whereabouts. Finished product output continuously between the drying tower bottom and cyclone separator, exhaust through dust catcher emptying by induced draft fan.

Drying effection
