Lab Scale Mobile Glass Reactor With Vertical Condense

  • Model Number:

    OLT-JC
  • Minimum Order Quantity:

    1
  • Compliance:

    CE Certified
  • Voltage:

    AC108V~240V
  • Power(W):

    60W
  • Capacity:

    1L-100L
  • Weight:

    35kg
  • Dimension(L*W*H):

    1250*550*550mm
  • Lead Time:

    6-8 Day
  • Warranty:

    One Year
  • Product Details

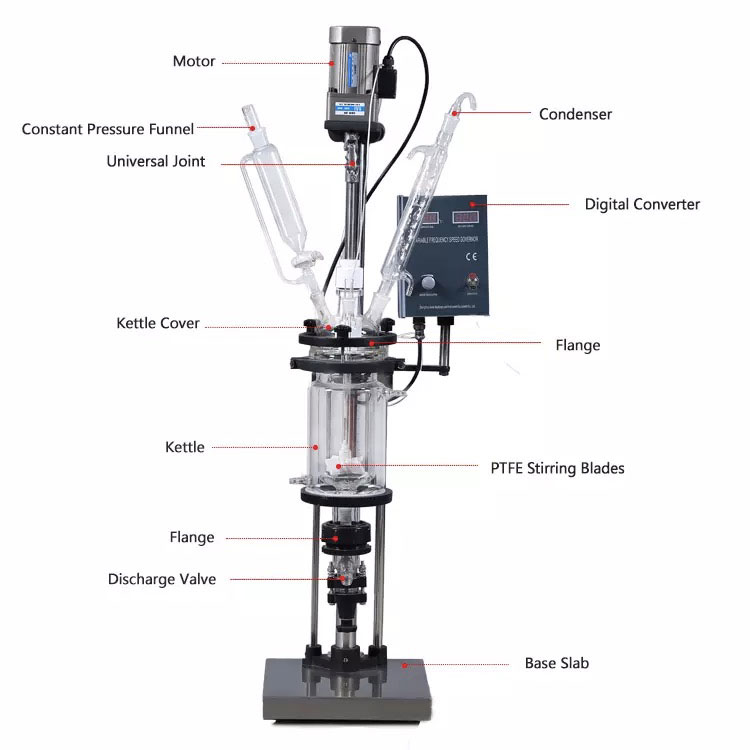

Jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.This Jacketed glass reactor can be used for vacuum stirring reaction, high temperature and low temperature reaction, constant speed operation mixing reaction, distillation, reflux, concentration reaction,negative pressure operation and so on.

Technical Parameters of All Jacketed Glass Reactor Models
Model OLT-JC-1 OLT-JC-2 OLT-JC-3 OLT-JC-5 OLT-JC-10 OLT-JC-20 OLT-JC-30 OLT-JC-50 OLT-JC-100
Stirring Power(W) 60 120 180
Stirring Speed(rpm) 0-600(max.1300)
Stirring Shaft Diameter(mm) 12 15
Reaction Flask Capacity(L) 1 2 3 5 10 20 30 50 100
Voltage(V/Hz)  AC108V~240V
Motor Torque(g/cm) 2000 2400 4800 1000 1200 1500 3000
Note Floor Type 304 All Stainless Steel Frame

Features of Jacketed Glass Reactor
1 Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculating fluid temperature and gives you best control over your work. It also help prevents frost to form on the outside of the vessel, allowing you to see clearly into your material.
2 Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
3 All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant
4 Adjustable stirring rate provides great torque or high speed.
5 PTFE stirring rod bearing for reliable and quiet operation.
6 Optional multi-layer stirring blades for optimal reaction results.
7 Wide range of temperature operations, from -80℃ to 250℃.
8

Large condenser cooling surface for exceptional condensation performance.

9

Explosion-proof motor is optional

10 110V/60Hz can be customized
jacketed glass reactors capacity range:1L,2L,3L,5L,10L,20L,30L,50L,100L,150L,fully meet the request of small laboratory experiments and pilot production in plant.Lab Scale Mobile Glass Reactor with Vertical CondenserLab Scale Mobile Glass Reactor with Vertical Condenser

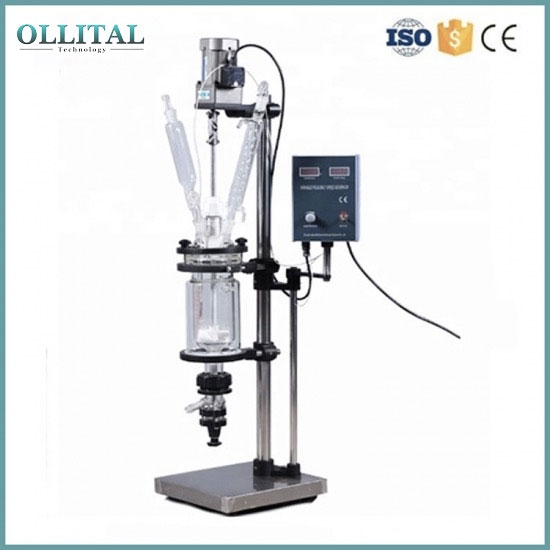

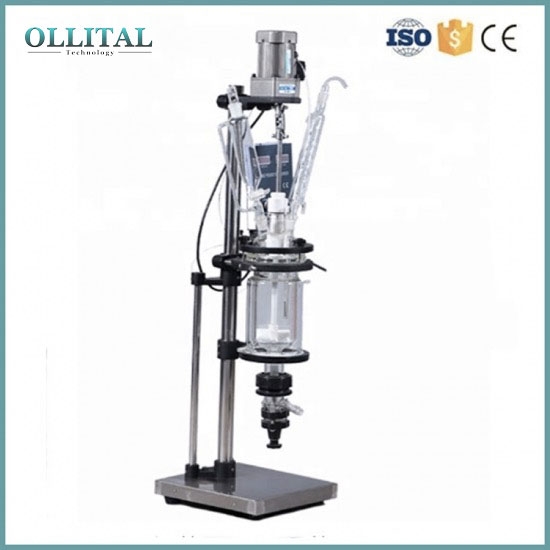

Lab Scale Mobile Glass Reactor with Vertical Condenser

Packaging:

-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.

Shipping method Note

Express

Door to door, very convenient, don't need to clearance or pick-up
By air

Airport to airport, you need to do the customs clearance and pick up  the

goods at your local airport, which you can have a local shipping agent to do for you.

By sea Port to port and you need to do the customs clearance and pick-up the goods

at your local port, which you can have a local shipping agent to do for you.
