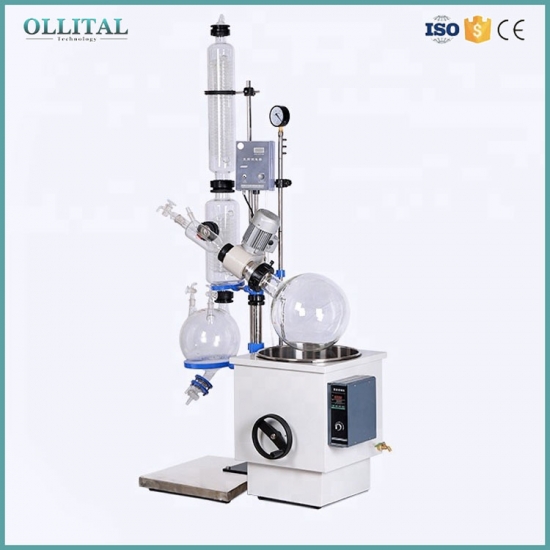

Laboratory Distillation Rotary Evaporator

  • Model Number:

    OLT-RE-13
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Speed:

    0-110Rpm
  • Voltage:

    108V-240V 50/60HZ
  • Power:

    1 year
  • Dimension(L*W*H):

    1300*800*2200mm
  • Weight:

    50KG
  • Packaging Details:

    Export wooden package
  • Delivery Time:

    6-8 day
  • Product Details
Laboratory rotary evaporator mainly used in pharmaceutical, chemical and biopharmaceutical industries concentrated, crystallization, drying, separation and dissolved coal recovery.
Characteristics:
1.High-borosilicate glass (GG17) owns good chemical-physical properties.
2.Converting-frequency stir, operating steady; Big Torque; No spark.
3.PTFE sealing components; unique designed to maintain market similar products can be the best vacuum (-0.098mpa so).
4.The smallest or PTFE no-dead angle discharge value after reaction solution can be more completely ruled out, without effusion.
5.Four kettle covers, big mouth design, simple and safe cleaning job.
6.Weather heating or cooling , all can customize based on clients’ different demands.

7. Science Structure, novelty, practical, artistic, leading domestic

Product Parameters

Model

OLT-RE-13

OLT-RE-14

OLT-RE-15

Evaporating Flask (L)

10

20

50

Receiving Flask (L)

5

10

20

Rotating Motor (W)

180

250

Rotating Speed (R/min)

0-120

0-90

Evaporation

Speed (L/H2O)

>3L/h

>5L/h

>9L/h

Condenser

Cooling Surface (sq.m.)

0.57

1

1.5

Vacuum Degree

0.098Mpa

Sealing Mode

PTFE Sealing System

Water Bath Configuration

Water Bath Lifting or Electric Hoist

Water(Oil) Bath Power(kw)

3

5

7/9

Temperature

Control Range

0-99(250)

Temp Fluctuation/Resolution

±1/1

Condenser

Vertical Double Condenser

Voltage (V/Hz)

108V-220V  50/60

108V-220V 50/60 | 108V-380V 50/60

Note

Customized configuration is available.

ZZKD Laboratory Rotary Evaporator PriceHigh Efficiency Glass Alcohol Distillation Equipment

Packing and Shipping

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
