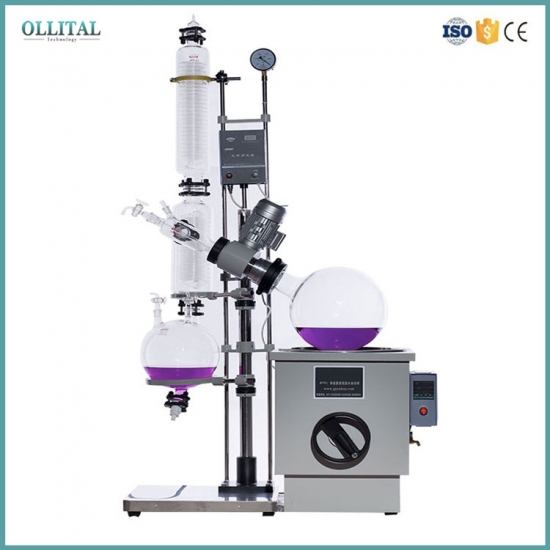

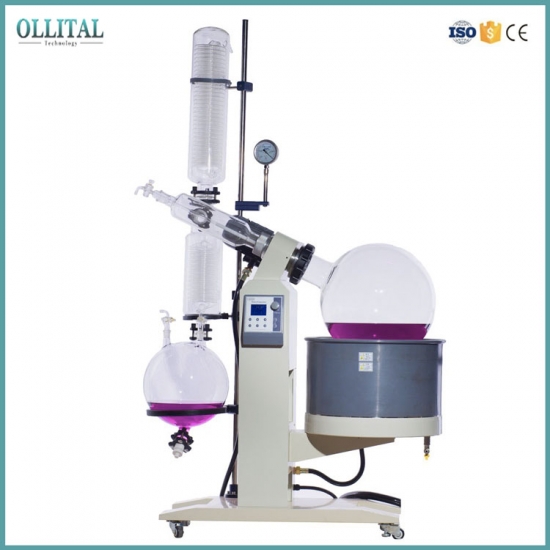

Laboratory Vacuum Evaporation Crystallization Equipment

  • Model Number:

    OLT-RE-16
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Screen:

    LCD display
  • Speed:

    0-120Min
  • Voltage:

    108V-240V 50/60HZ
  • Power:

    1 year
  • Packaging Details:

    Export wooden package
  • Delivery Time:

    6-8 day
  • Product Details

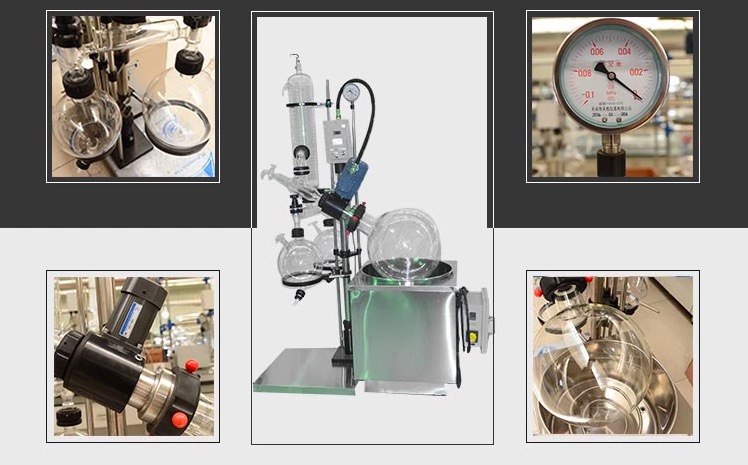

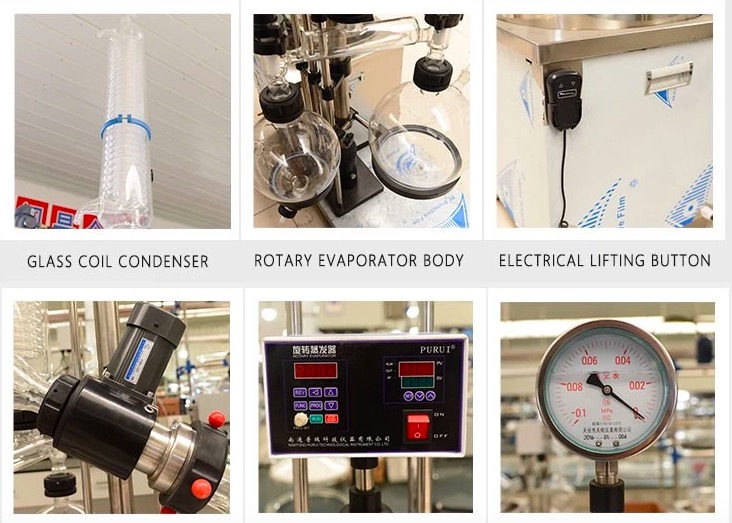

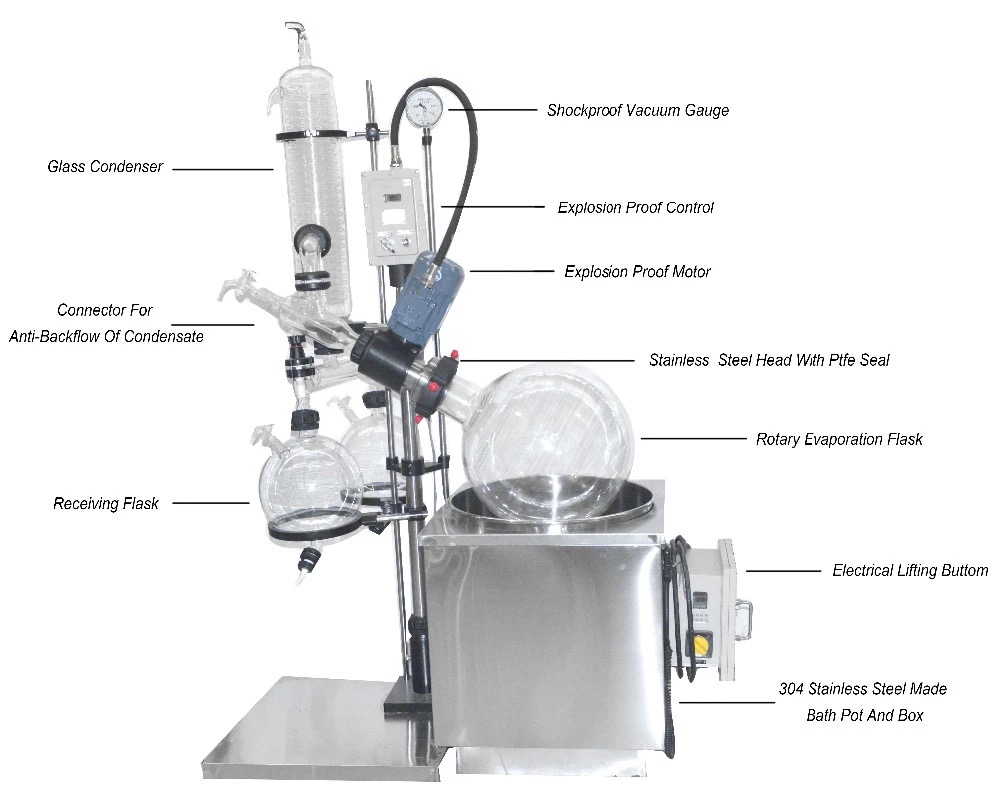

Features of Rotary Evaporator
    1    Advanced EL gas-tight system keeps high vacuum degree. Gas-liquid separator, no reflux
2 Double condenser, collection rate over 95%
3 The rotating flask is easy to install and setup
4 Continuous feed are available. (Inlet Valve)
5 Water bath, intelligent PID temp. controller, can be lifted up and down
6 Built-in transmission system, frequency conversion speed regulation, stable and reliable speed
7 Explosion-proof system is optional
8 110 V/60Hz can be customized
Model
OLT-RE-14
OLT-RE-15
OLT-RE-16
OLT-RE-17
Glass Material
GG-17
Shell Material
Antisepsis Plastic Spraying
Evaporating Flask (L)
5
10
20
50
Receiving Flask (L)
3
5
10
20
Rotating Speed(R/min)
0~120
Water(Oil) Bath Power(W)
2KW
3KW
5KW
8KW
Temperature Control Range
Intelligent digital/RT-399℃
Temperature Fluctuation(℃)
±1
Evaporation Rate(H2O)
≥1.5L/h
Condenser
The double backflow integration standard condenser
Lifting Mode
Manual Up and Down of Bath Kettle
Lifing Height(mm)
120mm
180mm
Voltage (V/Hz)
108V-220V/50Hz
Sealing Mode
PTFE, Fluoro Rubber Sealing



Packing and Shipping

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
