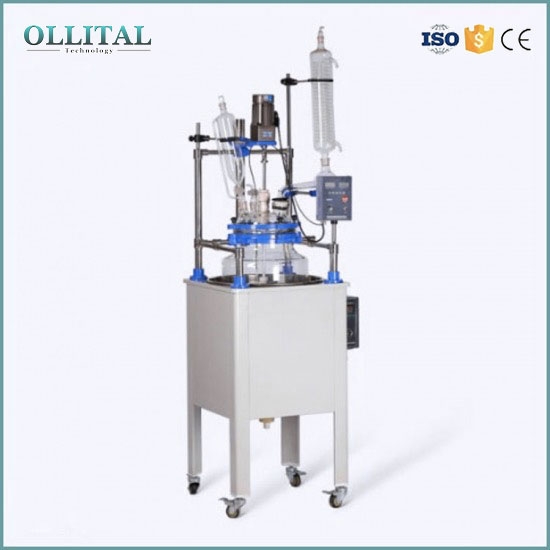

Lab 10L Chemical Distillation Single-Layer Glass Reactor

  • Model Number:

    OLT-RK-10L
  • Minimum Order Quantity:

    1
  • Compliance:

    CE Certified
  • Voltage:

    108V-240V
  • Power(W):

    120W
  • Capacity:

    10L
  • Service temperature:

    Rt-250 Rt-350
  • Dimension(L*W*H):

    630*560*1230mm
  • Lead Time:

    6-8day
  • Warranty:

    1 Years
  • Product Details

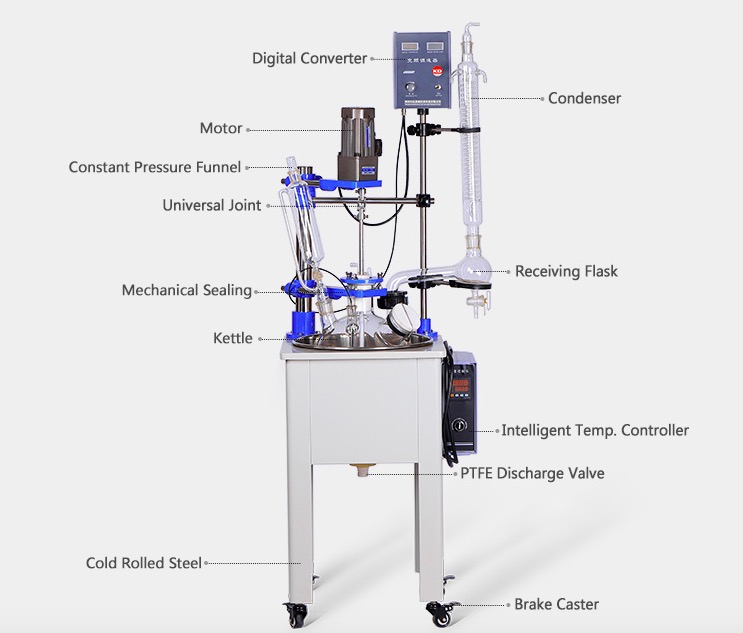

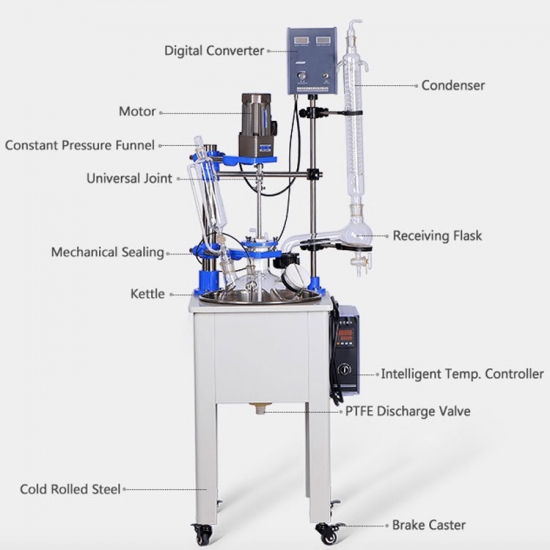

Lab 10L Chemical Distillation Single-Layer Glass Reactor  is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
Circulating water vacuum pump can pump into the reactor sorts of liquids and gases. The reflux or distillation is possible under different temperature state.

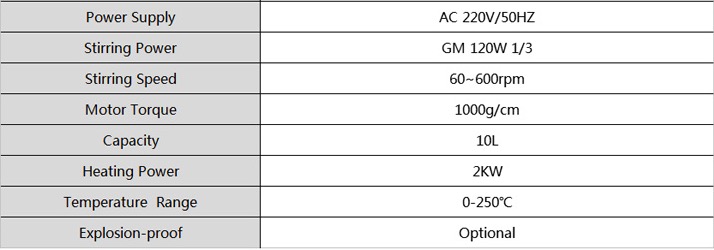

Model NO. OLT-RK-10L Tower Reactor Type Packed Tower Reactor
Heating Oil Circulation Heating Heat Transfer Structure Inner Coil Type
Automatic Grade Automatic Condition New
Stirring Power(W) 120W Stirring Speed(Rpm) 60~600
Motor Torque(G/Cm) 1000 Capacity(L) 10L
Heating Power(Kw) 3 Heating Mantle Power(Kw) 2.1
Temperature UsingRange(ºC) Rt-250 Rt-350 Specification 630*560*1230mm
Transport Package Wooden Case or as Customer′s Requirements Trademark OLLITAL

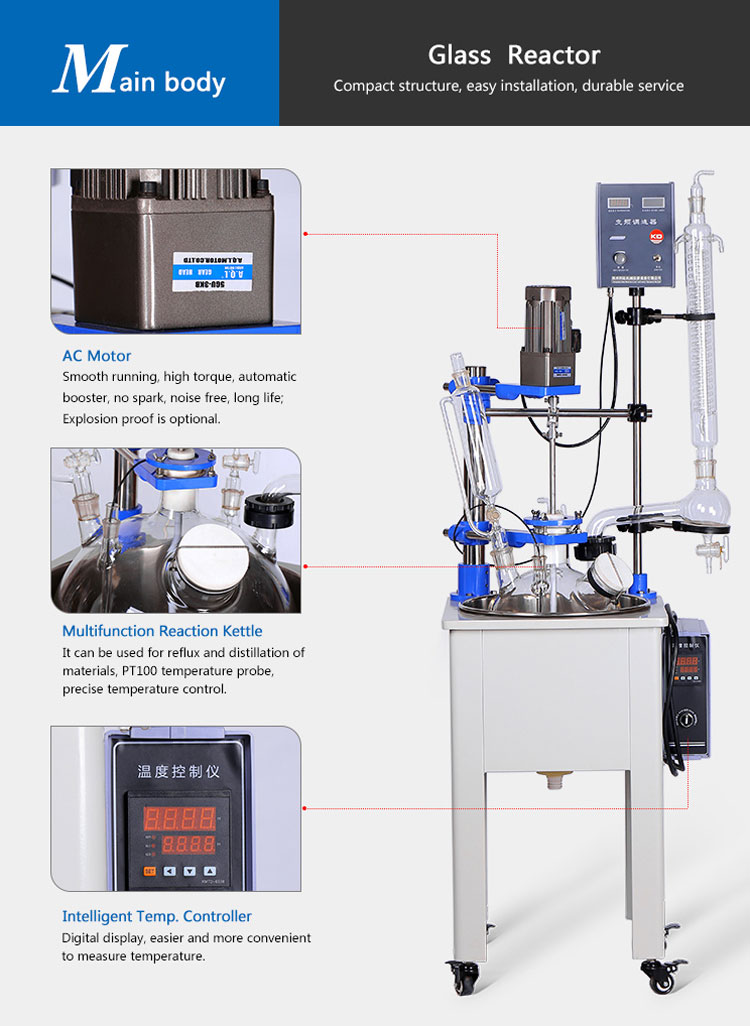

The single layer glass reactor has water/oil heating bath or heating mantle itself. Water/oil bath temperature is digital display, which can meet constant temperature state, fast temp. rising, accurate controllers.1-50L is circular and more than 50L is cylinder. After heating we can add the cooling coil in the tank to cool the material in short time.

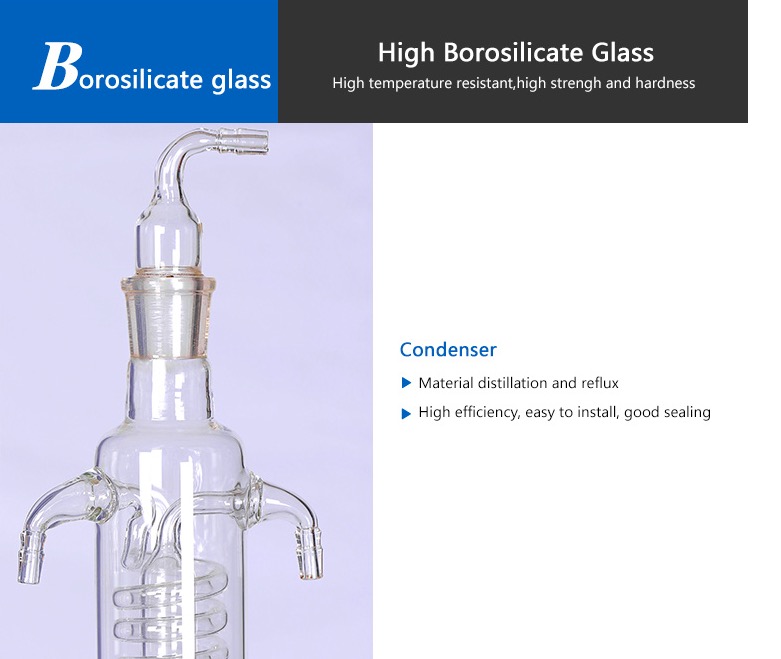

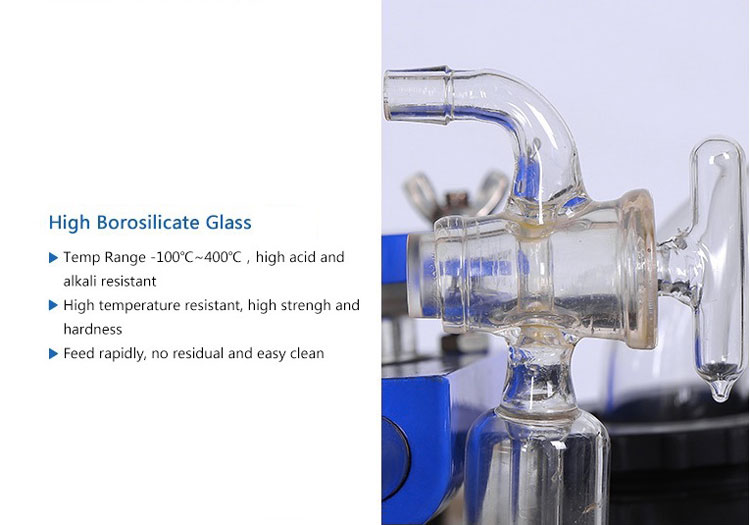

1.High borosilicate glass with nice physical-chemical properties; experiment temperature -100 to 400 degree C; Resistant to strong acidic properties of materials; only touching with glass parts & PTFE, no cross-contamination.

2.Precision Mechanical seal stirring to keep high vacuum degree.

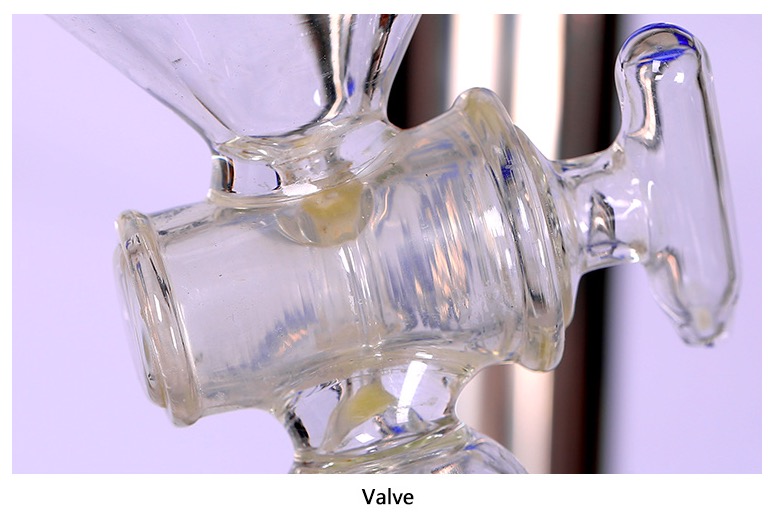

3.Glass(PTFE)discharge valve, no-dead angle mixing, fast no residue discharge.
4.Frequency control speed gear motor, smooth running,high torque, automatic booster , no spark, noise free, long life.
5.SUS frame and cast aluminum material kettle body support, simple as well as strong; stable structure
6.Circulating water/oil bath, heating mantle can supply the heating origin; Cooling mode machine:cool chiller, convenient and practical
7.Scientific & innovative structure, practical, strong.

Heating principle:

The heating coil in the tank heat the transfer medium-water or oil directly,(heating mantle heat the body kettle). Then the hot water or oil pass its hot energy to material in the kettle and stirring at the same time.
Ancillary equipment:
Circulating water vacuum pump: Used to provide a vacuum source.
Cool chiller: Reflux, condensation and cool the material



Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping
