Lead Time:
1-7 daysProduct Orgin:
ChinaShipping Port:
XiamenModel Number:
OLT-PM-M51Power:
AC 220±22V 50Hz 35AWarranty:
1 yearTissue Engineering: Scaffold fabrication for skin, bone, and vascular grafts
Drug Delivery Systems: Nanofiber mats for controlled drug release
Filtration Membranes: High-efficiency air and liquid filtration media
Wound Dressings: Antimicrobial and bioactive nanofiber dressings
Energy Storage: Electrodes for lithium-ion batteries and supercapacitors
Smart Textiles: Wearable sensors and conductive fabrics
Working Principle
The electrospinning process uses a high-voltage electric field to charge a polymer solution or melt, overcoming surface tension to eject a fine jet. As the jet travels toward the grounded collector, the solvent evaporates (in solution spinning) or the polymer solidifies (in melt spinning), resulting in solid nanofibers.
The process consists of four stages:
Charge Injection: The polymer solution is pumped through a spinneret (needle) and subjected to a high-voltage electric field (typically 5-30 kV).
Taylor Cone Formation: The electrostatic repulsion overcomes surface tension, forming a conical shape at the needle tip.
Jet Ejection & Whipping: A thin jet is ejected and undergoes rapid whipping (bending instability), elongating the fiber dramatically.
Fiber Collection: The solvent evaporates, and solid nanofibers are collected on a grounded target (flat plate, rotating drum, or mandrel).
|
Product name
|

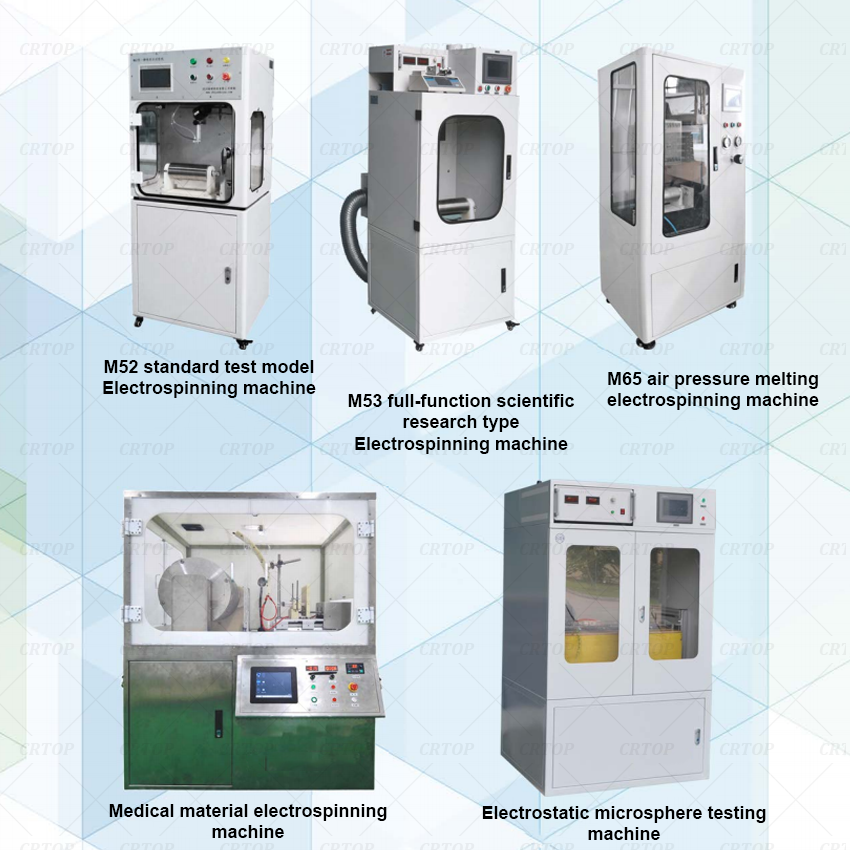

Selection of experimental electrospinning machine
|
Production model
|
||
|
Equipment model
|
OLTPM-M51
|
OLTPM-M52
|
OLTPM-M53
|
OLTPM-M54
|
|
Product positioning
|
Portable principle type
|
Standard test type
|

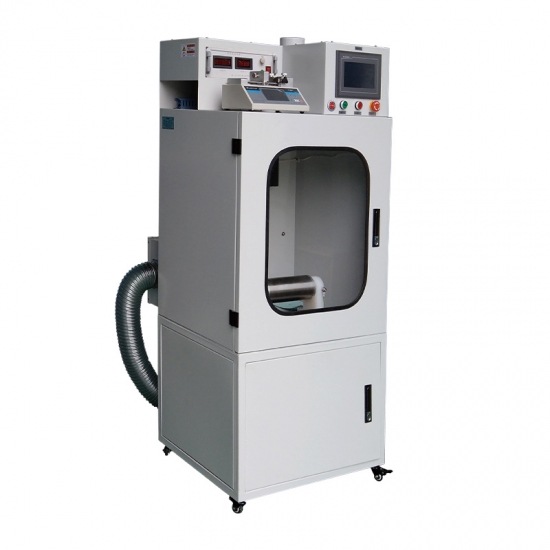

Full-function scientific research type
|
Production machine
|
|
Power supply
|
AC220V
|
AC380V
|
||
|
Maximum power (KW)
|
≤6
|
20-100
|
||
|
Dimensions (CM)
|
/
|
60*80*170
|
100*100*180
|
160*300*180
|
|
Loading method
|
Single syringe with gap
|
Two syringes with gap
|
Two injection systems
|
Continuous feed
|
|
Loading amount
|
1-10mL
|
(1-30mL)
|
(1 -30mL)*(1-12)
|
Continuous feed
|
|
Material heating
|
/
|
Optional
|
Optional
|
Optional
|
|
Spinneret
|
Detachable single needle
|
Detachable single to multiple needles, coaxial spinning
|
No Needle
|
|
|
Spinneret movement
|
Fixed
|
Reciprocating
|
Lifting + Reciprocating
|
Rotating
|
|
Raw material flow
|
0.1-20ml/h
|
0.1-50ml/min
|
100-1000ml/min
|
|
|
High voltage power supply
|
+30KV
|
+30KV
|
-30KV~+50KV
|
-30KV~+100KV
High power power pack
|
|
Collection unit
|
Roller + flat plate
|
Roller + flat plate
(roller optional)
|
Full series
|
Wide collection belt
|
|
Drum collector (CM)
|
D10*21 roller
|
D10*21 roller
|
Multiple specifications of rollers
|
/
|
|
Collection drum speed
|
50-1000r/min
|
50-1000r/min
|
50-2800r/min
|
|
|
Collection distance
|
5-30cm(Manual)
|
5-30cm(Manual)
|
5-30cm(Automatic)
|
5-30cm(Manual)
|
|
Plate movement
|
/
|
/
|
X/Y Scan
|
/
|
|
Fiber diameter
|
100nm-200nm
|
50nm-200nm
|
10nm-200nm
|
10nm-200nm
|
|
Environmental control
|
/
|
Optional temperature and humidity control
|
Temperature and humidity control
|
Clean space with temperature and humidity control
|
|
Control method
|
Decentralized independent control
|
Touch interface
|
Programmable touch interface
|
Programmable touch interface
|
|
Optional consumables
|
/
|
Needle
|
Nozzle/Collector
|
/
|
|
Optional accessories
|
/
|
Temperature and humidity control/nozzle/collector
|
/
|
|
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.

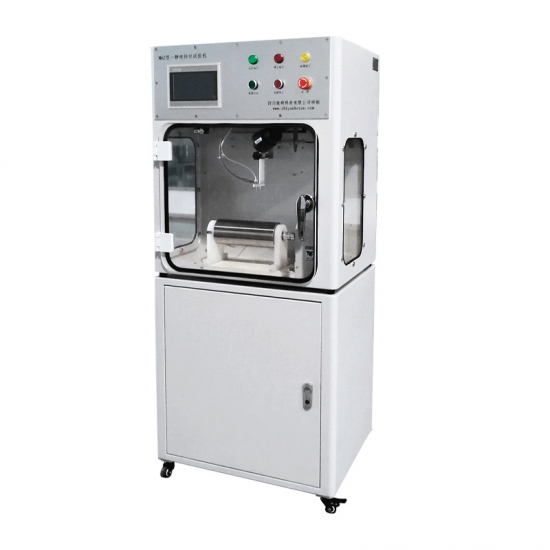

Standard Test Electrostatic Spinning Machine is a compact, reliable, and easy-to-use electrospinning system designed for routine nanofiber fabrication in research and quality control laboratories.

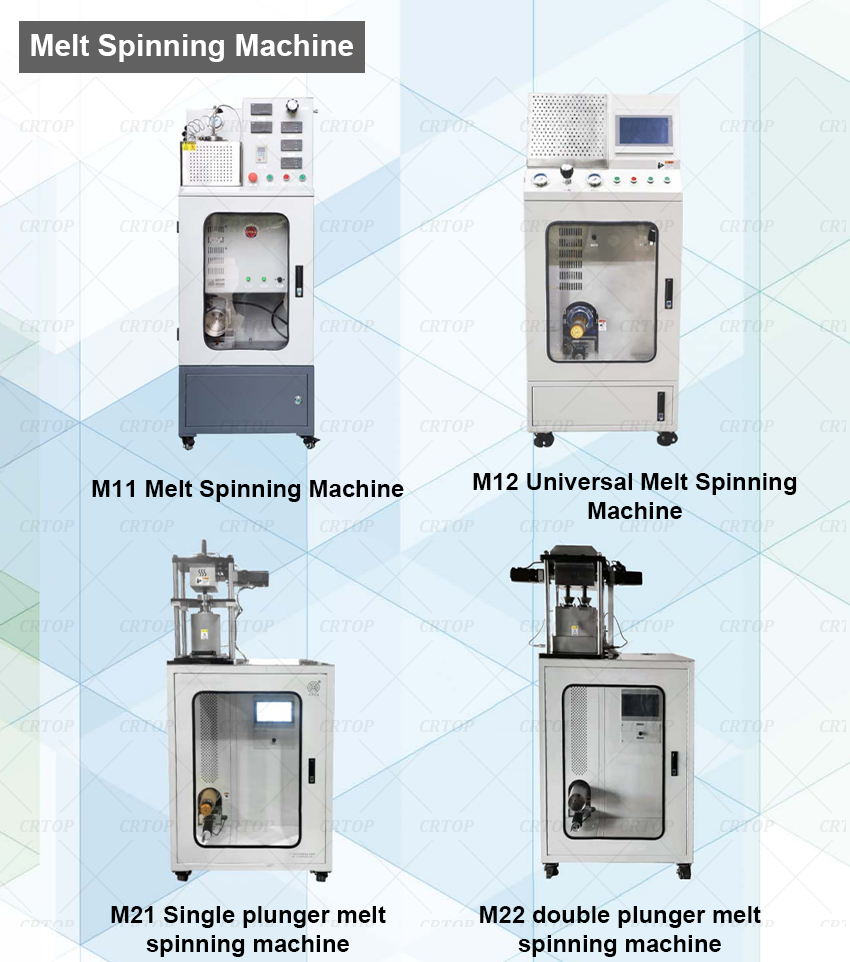

Lab Melt Spinning Machine is a specialized pneumatic-driven melt electrospinning system designed for the fabrication of micro and nanofibers without the use of organic solvents.
