Lead Time:
1-7 daysProduct Orgin:
ChinaShipping Port:
XiamenModel Number:
OLT-PM-M52Power:
AC 220±22V 50Hz 35AWarranty:
1 year

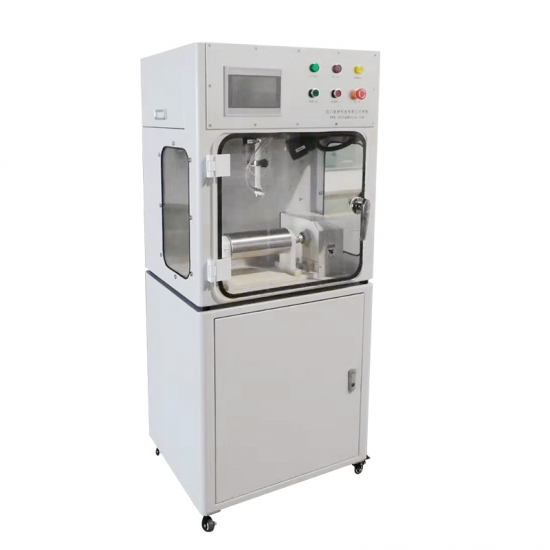

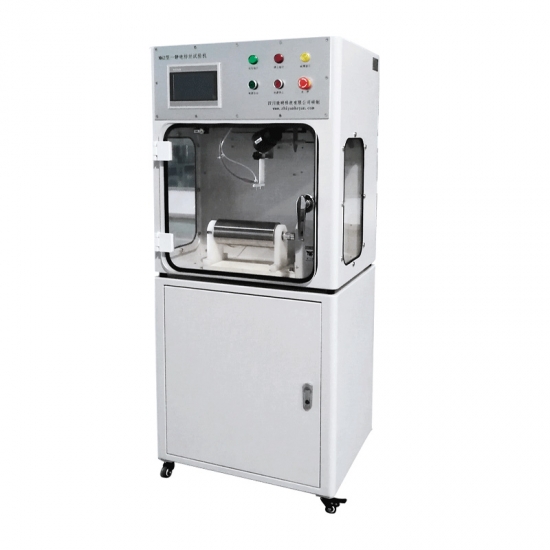

The Ollital Standard Test Electrostatic Spinning Machine is a compact, reliable, and easy-to-use electrospinning system designed for routine nanofiber fabrication in research and quality control laboratories. It provides a stable high-voltage electrostatic field, a precision syringe pump, and an enclosed spinning chamber with basic collector options. This machine is ideal for academic institutions, industrial R&D labs, and small-scale production environments where consistent, reproducible nanofiber mats are required for material testing, process development, or educational demonstrations.
Primary Applications:
Academic Research: Polymer nanofiber characterization, parameter optimization
Material Testing: Rapid screening of electrospinning solutions
Quality Control: Batch-to-batch consistency verification
Small-Scale Production: Prototype nanofiber membranes and scaffolds
Educational Training: Teaching electrospinning principles to students
|
Product name
|
Selection of experimental electrospinning machine
|
Production model
|
||
|
Equipment model
|
OLTPM-M51
|
OLTPM-M52
|
OLTPM-M53
|
OLTPM-M54
|
|
Product positioning
|
Portable principle type
|
Standard test type
|
Full-function scientific research type
|
Production machine
|
|
Power supply
|
AC220V
|
AC380V
|
||
|
Maximum power (KW)
|
≤6
|
20-100
|
||
|
Dimensions (CM)
|
/
|
60*80*170
|
100*100*180
|
160*300*180
|
|
Loading method
|
Single syringe with gap
|
Two syringes with gap
|
Two injection systems
|
Continuous feed
|
|
Loading amount
|
1-10mL
|
(1-30mL)
|
(1 -30mL)*(1-12)
|
Continuous feed
|
|
Material heating
|
/
|
Optional
|
Optional
|
Optional
|
|
Spinneret
|
Detachable single needle
|
Detachable single to multiple needles, coaxial spinning
|
No Needle
|
|
|
Spinneret movement
|
Fixed
|
Reciprocating
|
Lifting + Reciprocating
|
Rotating
|
|
Raw material flow
|
0.1-20ml/h
|
0.1-50ml/min
|
100-1000ml/min
|
|
|
High voltage power supply
|
+30KV
|
+30KV
|
-30KV~+50KV
|
-30KV~+100KV
High power power pack
|
|
Collection unit
|
Roller + flat plate
|
Roller + flat plate
(roller optional)
|
Full series
|
Wide collection belt
|
|
Drum collector (CM)
|
D10*21 roller
|
D10*21 roller
|
Multiple specifications of rollers
|
/
|
|
Collection drum speed
|
50-1000r/min
|
50-1000r/min
|
50-2800r/min
|
|
|
Collection distance
|
5-30cm(Manual)
|
5-30cm(Manual)
|
5-30cm(Automatic)
|
5-30cm(Manual)
|
|
Plate movement
|
/
|
/
|
X/Y Scan
|
/
|
|
Fiber diameter
|
100nm-200nm
|
50nm-200nm
|
10nm-200nm
|
10nm-200nm
|
|
Environmental control
|
/
|
Optional temperature and humidity control
|
Temperature and humidity control
|
Clean space with temperature and humidity control
|
|
Control method
|
Decentralized independent control
|
Touch interface
|
Programmable touch interface
|
Programmable touch interface
|
|
Optional consumables
|
/
|
Needle
|
Nozzle/Collector
|
/
|
|
Optional accessories
|
/
|
Temperature and humidity control/nozzle/collector
|
/
|
|
Key Features & Benefits
Stable High-Voltage Power Supply:
Output range: 0 – 30 kV (positive polarity)
Digital display with real-time voltage readout
Built-in over-current and short-circuit protection
Safety interlock: High voltage automatically cuts off when chamber door opens
Precision Syringe Pump:
Flow rate range: 0.1 – 50 mL/h (adjustable via control panel)
Accepts standard syringes: 1 mL, 2.5 mL, 5 mL, 10 mL, 20 mL, 50 mL
Pulse-free stepper motor for continuous, stable jet formation
Manual or automatic operation modes
Interchangeable Collector System:
Flat Plate Collector (Standard): 150 × 150 mm aluminum plate for random fiber mats
Rotating Drum Collector (Optional): Ø89 × 200 mm, speed 0–1000 rpm for partially aligned fibers
Adjustable Spinning Parameters:
Working distance (needle-to-collector): 50 – 200 mm (manual adjustment with scale)
Needle gauge: 18G – 30G (standard Luer lock)
X-Y-Z manual positioning stage for needle alignment
Enclosed Spinning Chamber:
Transparent acrylic door for safe observation
Built-in LED lighting for clear visibility
Exhaust port for connection to external fume extraction system (not included)
Anti-static coating to prevent fiber adhesion to chamber walls
User-Friendly Control Panel:
Digital display for voltage, flow rate, and timer
Simple knob and button controls (no complex programming required)
Emergency stop button for immediate shutdown
Compact & Portable Design:
Small footprint (approx. 500 × 500 × 600 mm) fits on any lab bench
Lightweight (approx. 35 kg) for easy relocation
