Sending Fiber Welding Laser Machine

If the welding surface effect is required to be white and bright, nitrogen or argon is required If there is no requirement for the welding surface, add compressed air freeze Dryer, air is ok.
  • Item NO.:

    LXW
  • Lead Time:

    7days
  • Shipping Port:

    XiaMen
  • Product Details

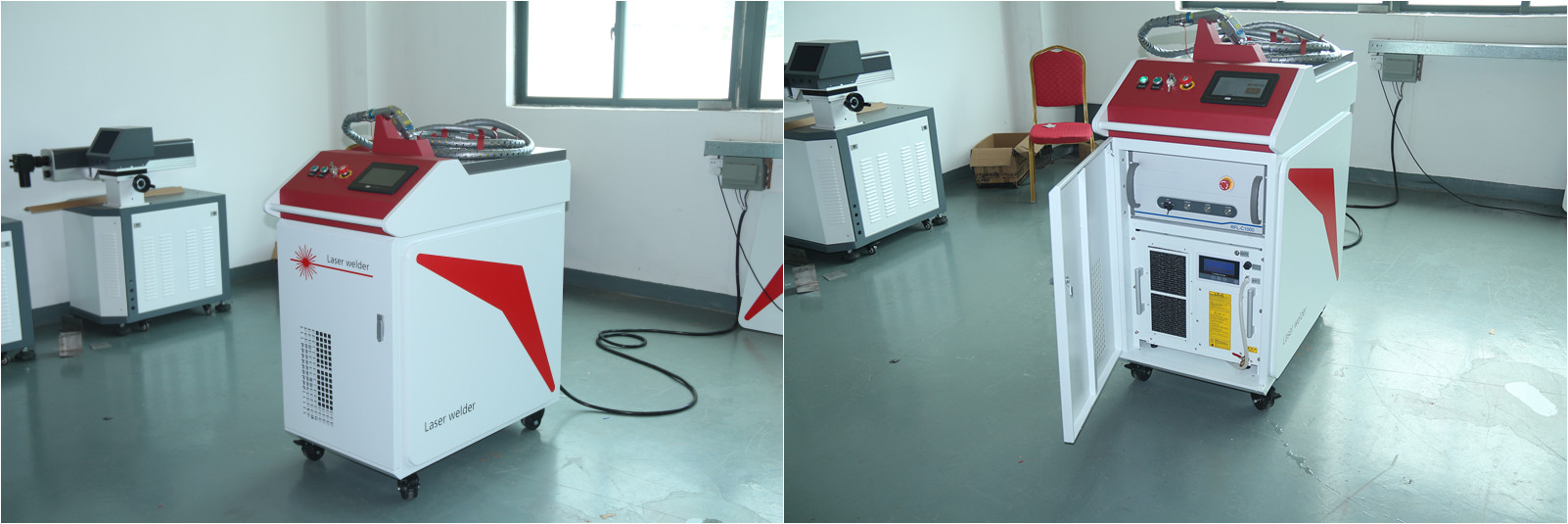

 Machine in Factory


Machine Parameter

Model
LXW-1000/1500/2000W
Laser power
 1000/1500/2000W
Laser wavelength
1080+-5nm
Beam quality
1.3m²
Work patterns
Continuous
Power required
AC220V / 380V
Output fiber length
5/10/15m (Optional)
Cooling method
Water Cooling
Cooling water temperature
 5-45℃
Average consumed power
2500/2800/3500/4000W
Laser Energy Stability
<2%
Air humidity
10-90%
Machine Tips

1. About Fiber Cable Length
Usually standard length is 10m, if you have other needs, we support shortening or lengthening.



2. Auxiliary gas: nitrogen or argon

If the welding surface effect is required to be white and bright, nitrogen or argon is required
If there is no requirement for the welding surface, add compressed air freeze Dryer, air is ok.



3. About wire feeder

It's the machine standard configuration, we will send to you together with the whole machine.



4. Machine warranty

usually 2 years, we have professional after sale group, 24 hour online

 Machine Parts

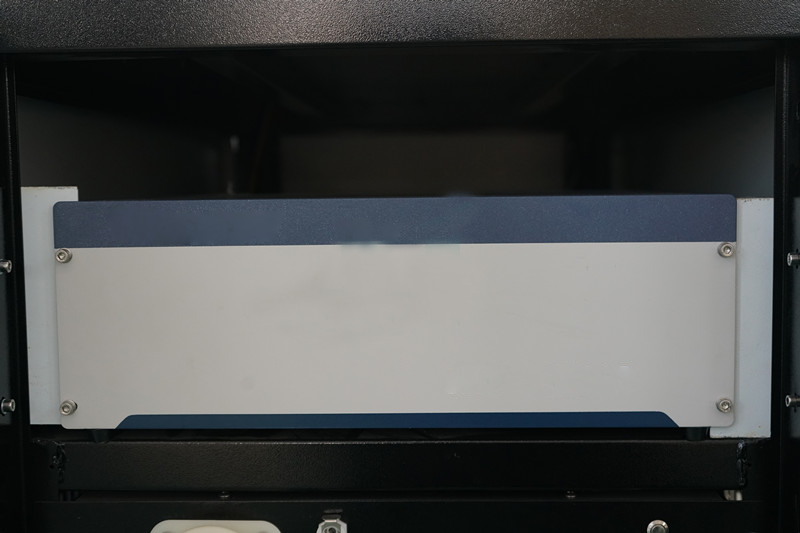

Fiber laser generator Raycus 1000w

(Raycus,MAX Optional)

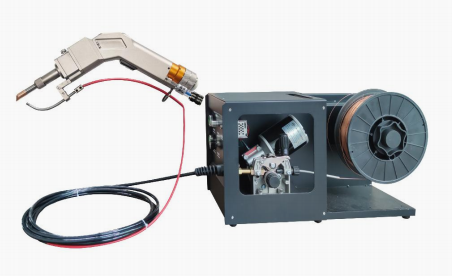

Wire Feeder
Standard configuration

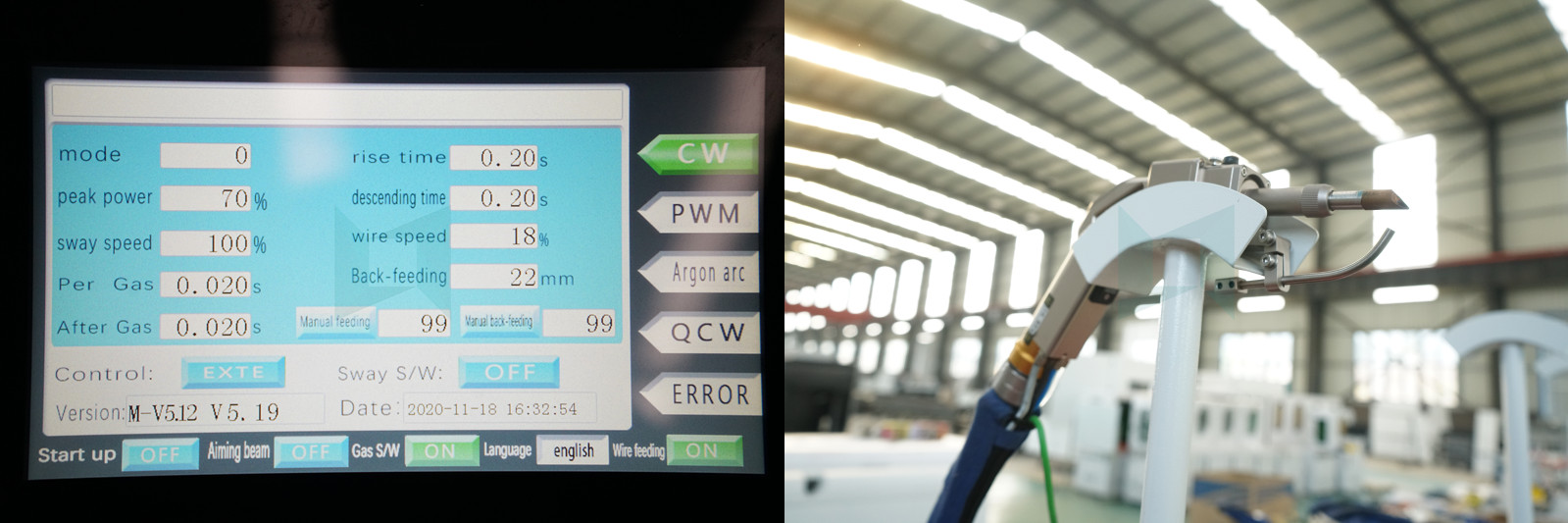

Hanwei Controller + Welding head

(Au3tech/WSX/QiLin ENV8 controller + Welding head optional)

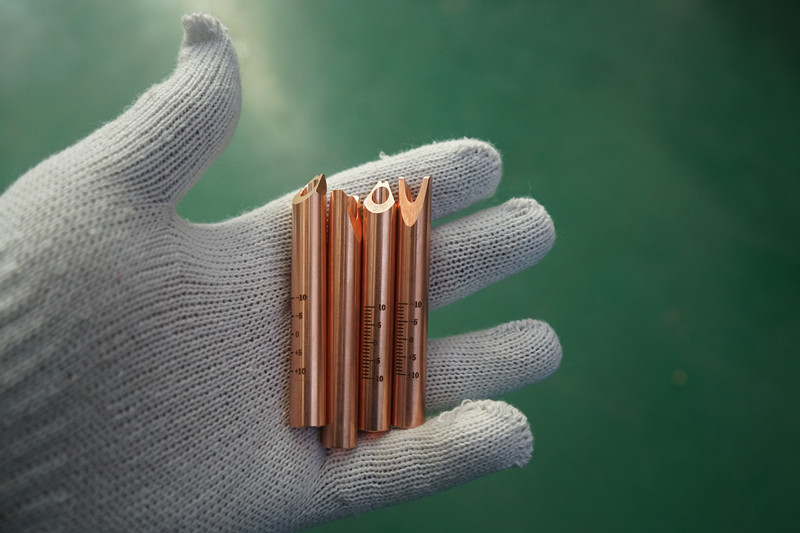

Welding Nozzle

We will send 10 piece to you, FREE!

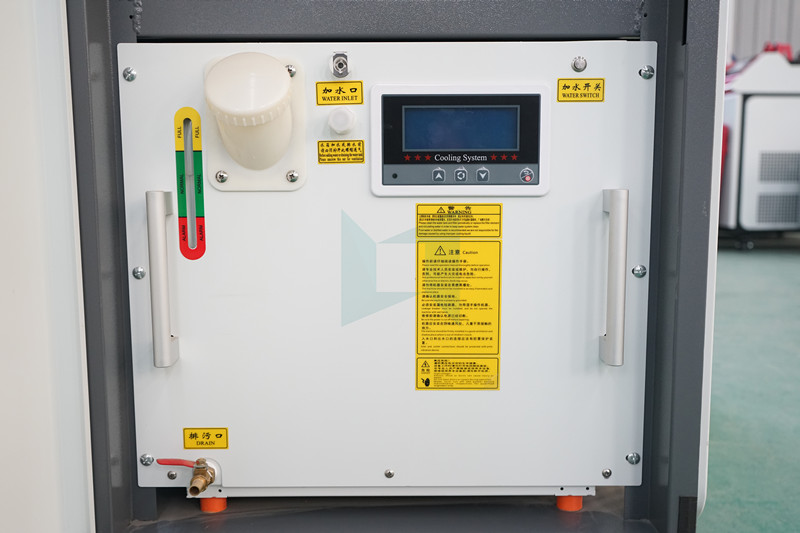

Water chiller

High quality S&A Water chiller




Machine Application

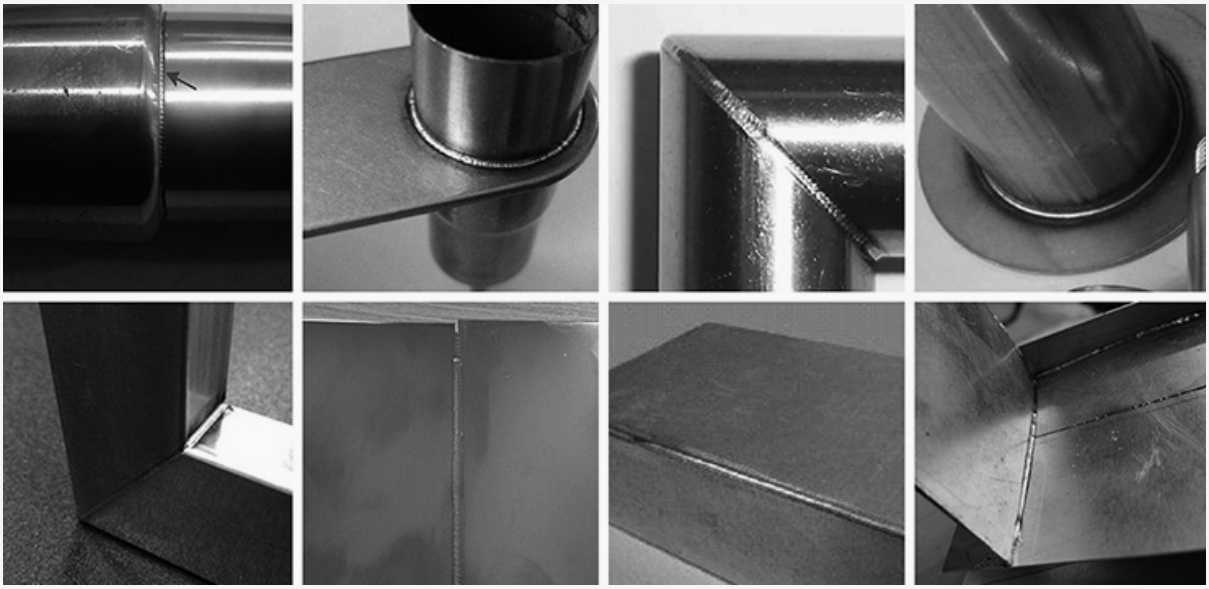

Fiber Laser welding machine is suitable for welding gold, silver, titanium, nickel, tin, copper, aluminum and other metals and their alloy materials. It can achieve the same precision welding between metals and dissimilar metals. It has been widely used in aerospace, shipbuilding, and instrumentation. , Mechanical and electrical products, automobiles and other industries.

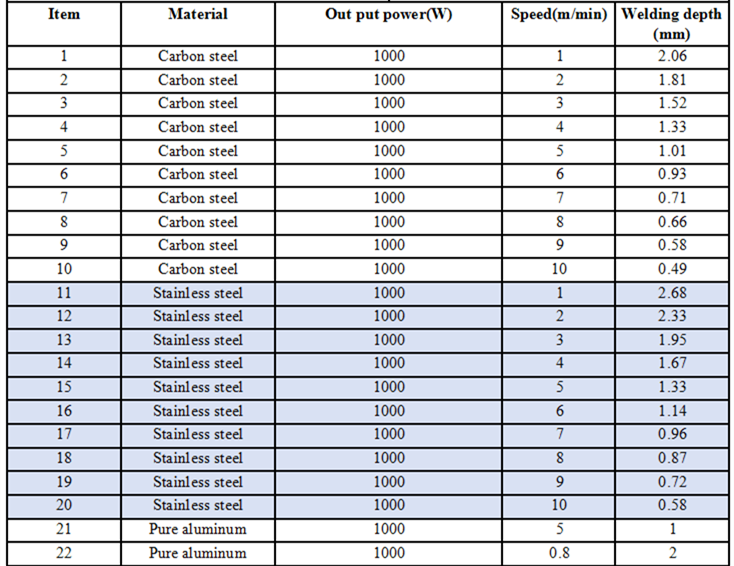

Welding Material Parameter for your reference, different materials, different welding parameters, limited by the section, directly display a part.

If You want to know more about the parameter, please contact us directly, 24 hours online
