Model Number:
OLT-IICompliance:
CE CertifiedMinimum Order Quantity:
1Voltage:
108V-240V 50/60HZWarranty:
1 yearPackaging Details:
Export wooden packageDelivery Time:
2-5 daysSolid Photochemical Photocatalytic Thermostatic Reactor
Product Overview

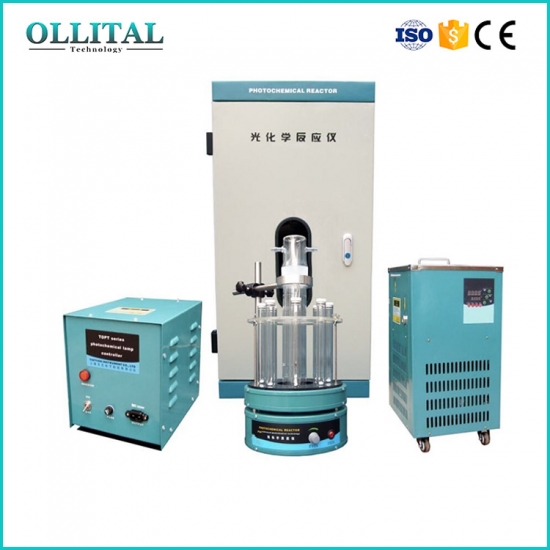

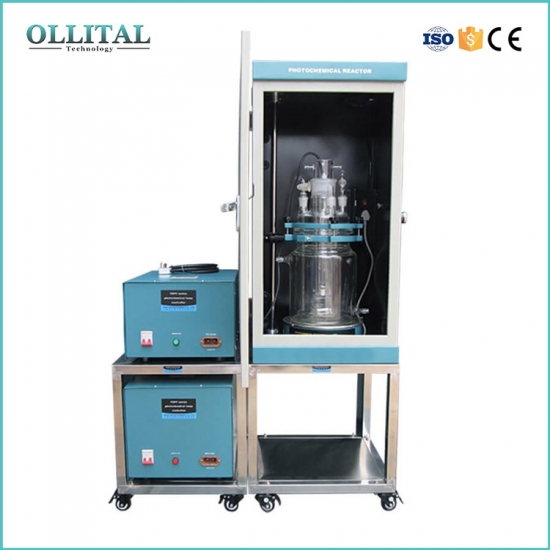

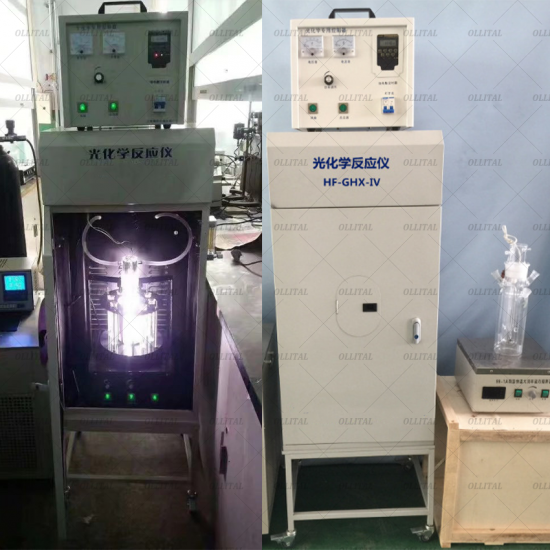

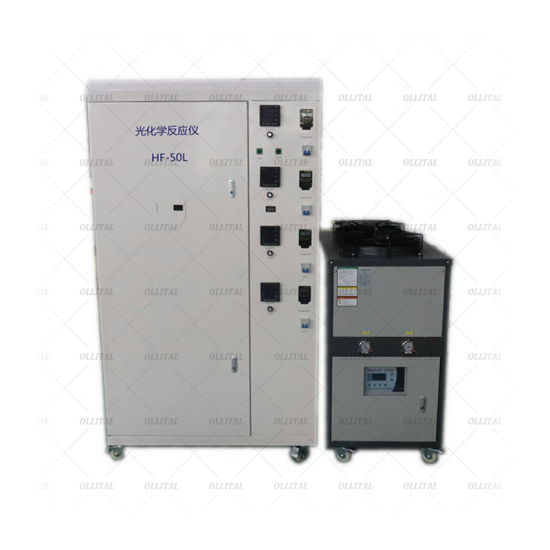

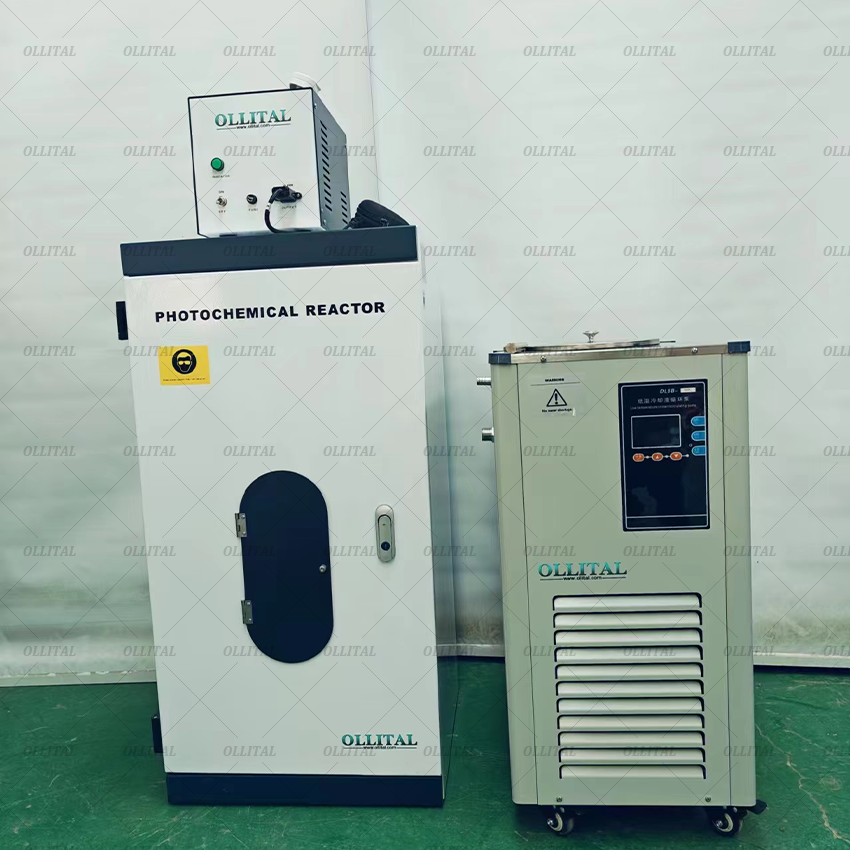

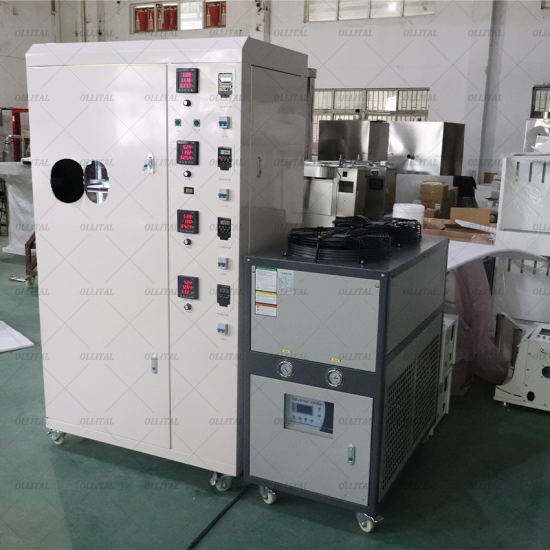

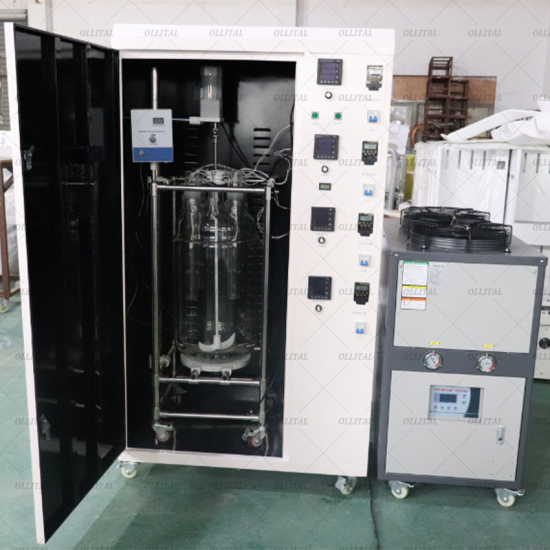

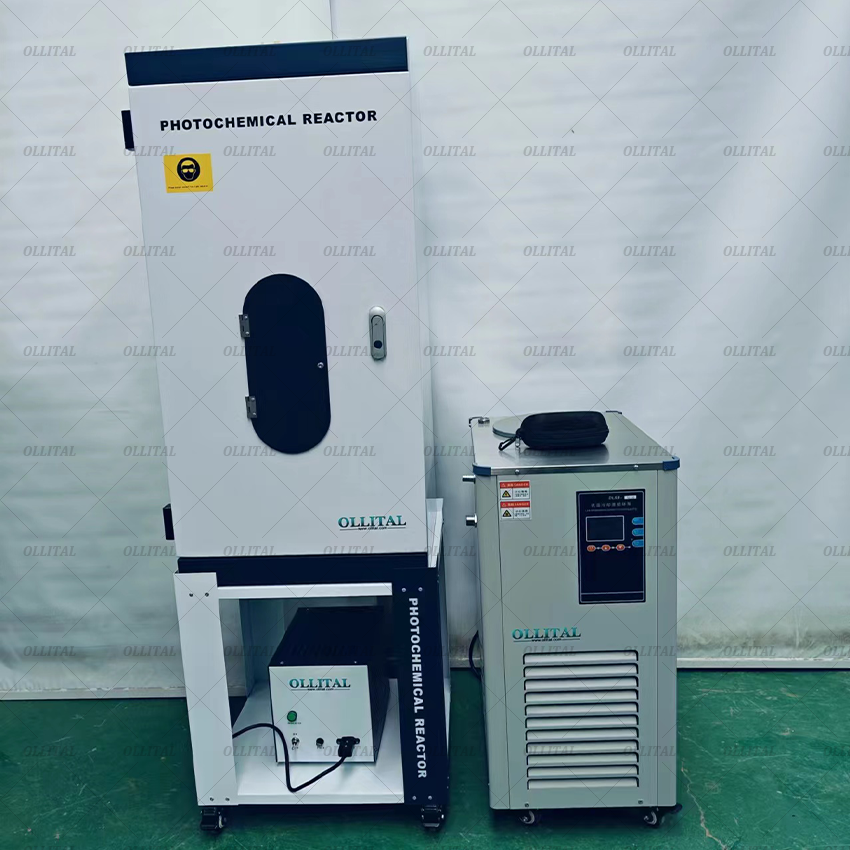

The Solid Photochemical Photocatalytic Thermostatic Reactor is a high-precision laboratory and pilot-scale reactor designed for photocatalytic reactions in solid or slurry media. It allows controlled UV or visible light irradiation, temperature regulation, and integration with various catalyst-loading systems such as TiO₂ or other photocatalysts.
This reactor is ideal for research in chemical synthesis, material science, environmental applications, and energy conversion studies, offering reliable thermal control, uniform light exposure, and safe operation.
Core Features
Technical Specifications
| Parameter | Specification |
|---|---|
| Reaction Volume | 30 mL, 50 mL (customizable), suitable for solid or slurry samples |
| Light Source | Mercury, Xenon, or Metal Halide lamp (power adjustable) |
| Lamp Power Range | Mercury/Xenon: 100–1000 W; Metal Halide: 100–500 W |
| Temperature Control | Thermostatic, -20°C to 100°C, automatic cut-off for safety |
| Stirring System | Digital 8-position magnetic stirrer (synchronized speed control) |
| Cooling Capacity | >1000 W, with water circulation and temperature stabilization |
| Number of Samples | Up to 8 samples simultaneously (customizable) |
| Optical Protection | UV/Visible transparent quartz tube, optional filters for wavelength selection |
OLT-GHX-V Standard Configuration
| Component | Quantity |
|---|---|
| Digital Photocatalytic Reactor Controller (voltage, current, power, temperature display) | 1 |
| Thermostatic Water Bath | 1 |
| Reaction Chamber with Quartz Tubes | 1 |
| Double-Layer Quartz Cold Trap | 1 |
| Mercury Lamp 1000 W | 1 |
| Xenon Lamp 1000 W | 1 |
| Metal Halide Lamp 500 W | 1 |
| Digital 8-Position Magnetic Stirrer | 1 |
| Quartz Tubes (30 mL ×8, 50 mL ×8) | 16 |
| UV Protection Glasses | 1 |
| Movable Trolley | 1 |
Advantages
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
