Product Orgin:
ChinaShipping Port:
XiamenModel Number:
OLT-HP-100Compliance:
CE CertifiedMinimum Order Quantity:
1Capacity:
100mlWarranty:
1 year
Product Description

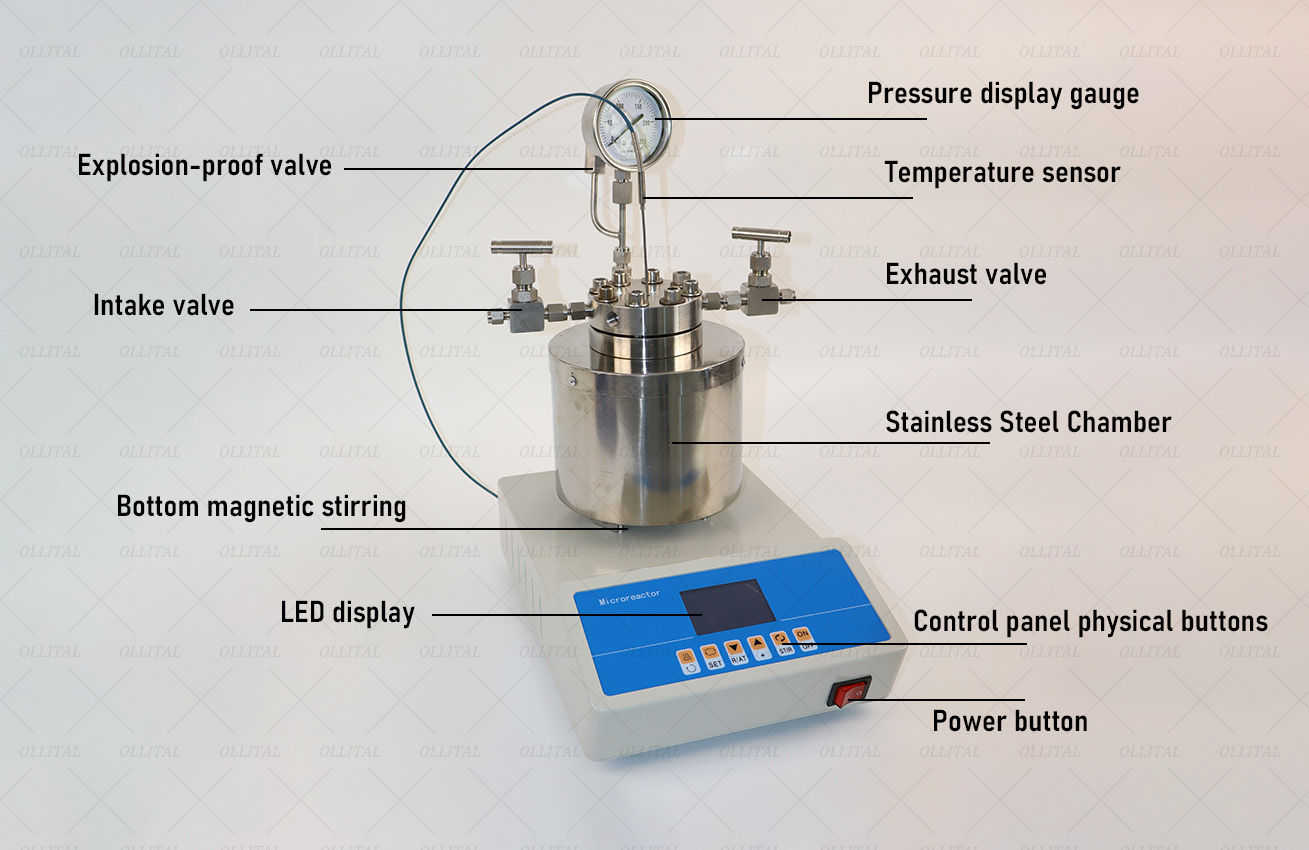

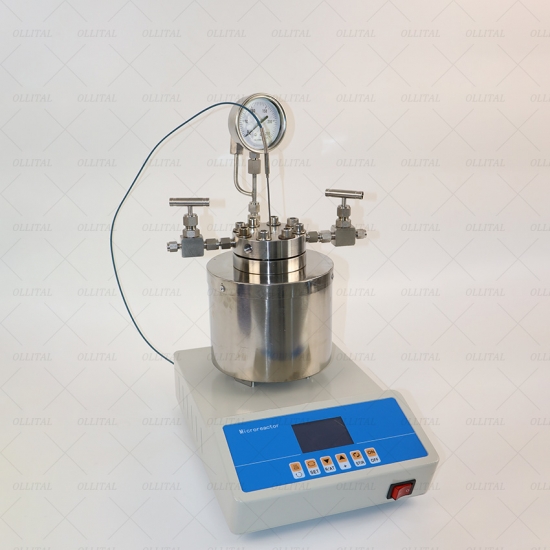

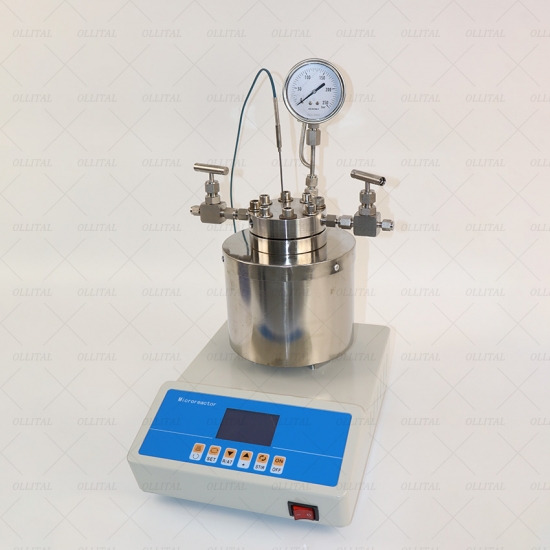

The 100ML Small High Temperature and High Pressure Reactor is a compact laboratory reactor designed for precise research experiments in chemistry, materials, and pharmaceuticals. Equipped with magnetic stirring technology, it ensures leak-free operation and uniform mixing under extreme reaction conditions. With its 100 mL capacity, this reactor is ideal for small-scale trials and high-value experiments.
Key Features
100 mL Capacity
Suitable for small-scale laboratory research and pilot testing.
High Pressure & Temperature Tolerance
Supports up to 20 MPa and 350°C, ensuring stable performance in demanding experiments.
Magnetic Stirring System
Provides efficient, uniform mixing without leakage.

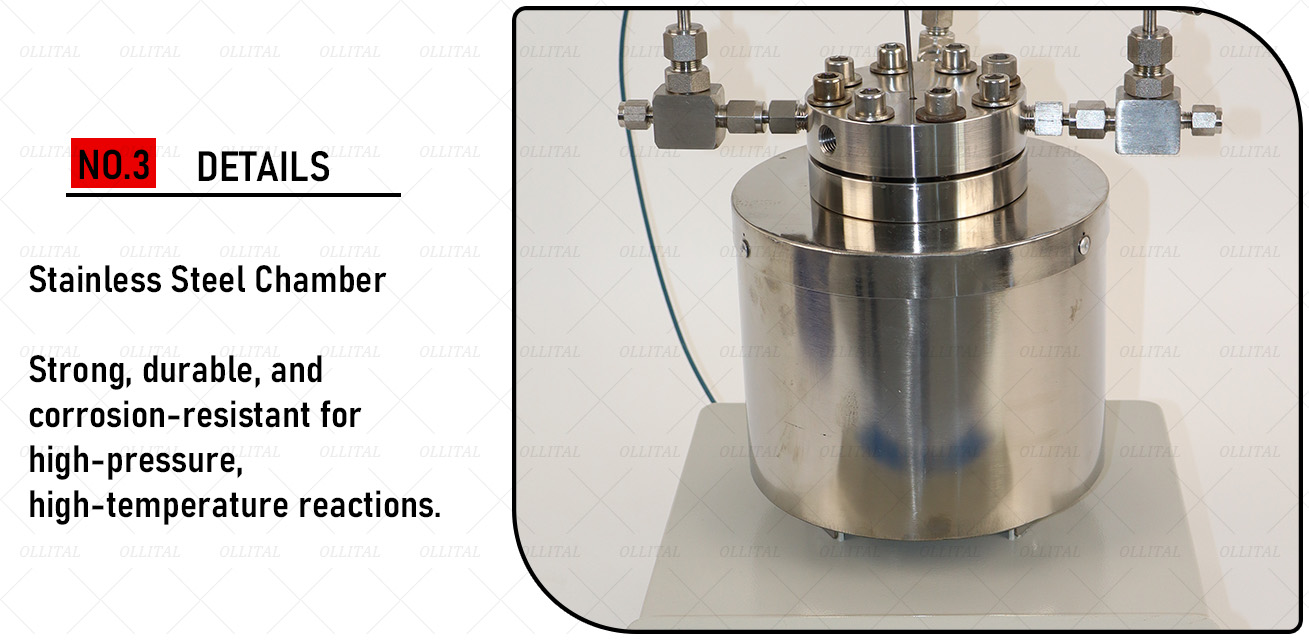

Stainless Steel Construction
Durable, corrosion-resistant, and safe for long-term use.
Compact Design
Easy to place on laboratory benches, ideal for limited space.
Applications
Catalyst evaluation and hydrogenation
Polymer and advanced materials synthesis
Fine chemicals and pharmaceutical intermediates
Gas–liquid and multiphase reaction studies
Advantages

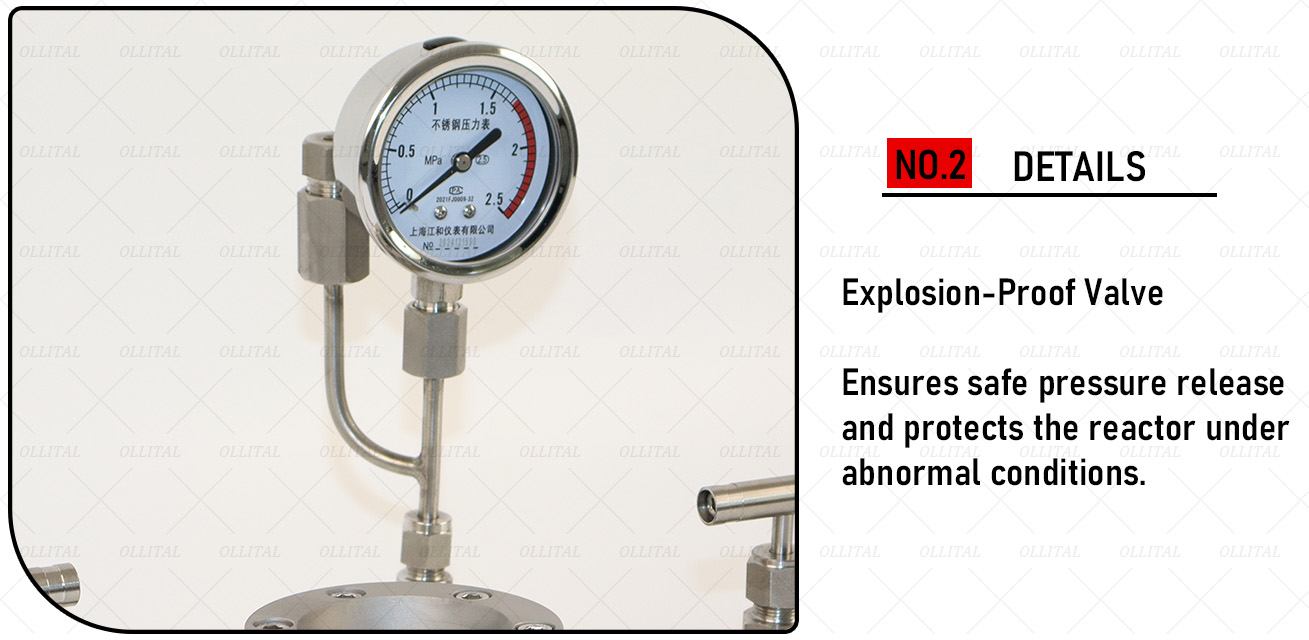

Leak-free magnetic coupling design for enhanced safety
Small-volume reactor for precision experiments
High durability with stainless steel chamber
Compact desktop-friendly structure
|
Model
|
OLT-HP-10
|
OLT-HP-25
|
OLT-HP-50
|
OLT-HP-100
|
OLT-HP-250
|
OLT-HP-500
|
|
volume(ml)
|
10
|
25
|
50
|
100
|
250
|
500
|
|
Service temperature(℃)
|
RT-350℃,Higher temperatures can be customized according to customer requirements
|
|||||
|
Use pressure(Mpa)
|
-0.1-10 Standard 10Mpa, customized according to customer requirements
|
|||||
|
heating power(w)
|
600
|
600
|
1000
|
1000
|
1500
|
1500
|
|
control mode
|

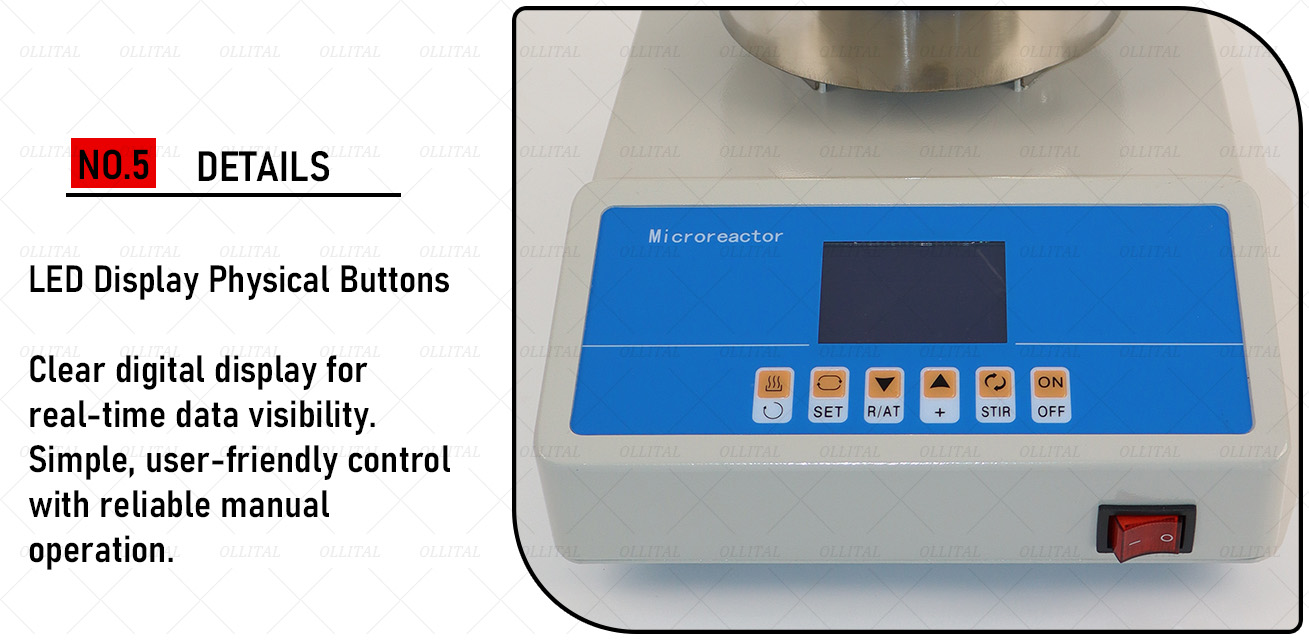

PID artificial intelligence adjustment, LCD digital display
|
|||||
|
Mixing form
|
Magnetic coupling mechanical stirring or bottom magnetic stirring optional
|
|||||
|
Mixing power(w)
|
80
|
|||||
|
Stirring speed(rpm)
|
0-1500
|
|||||
|
Positive and reverse regulation
|
Positive inversion
|
|||||
|
Temperature setting
|
Self setting function of temperature
|
|||||
|
safety protection
|
Set upper temperature limit, over temperature alarm, self power-off protection
|
|||||
|
Timing function
|
Working time and holding time can be set regularly
|
|||||
|
Timing function supply voltage
|
AC 108V-240V 50Hz
|
|||||
