Product Description

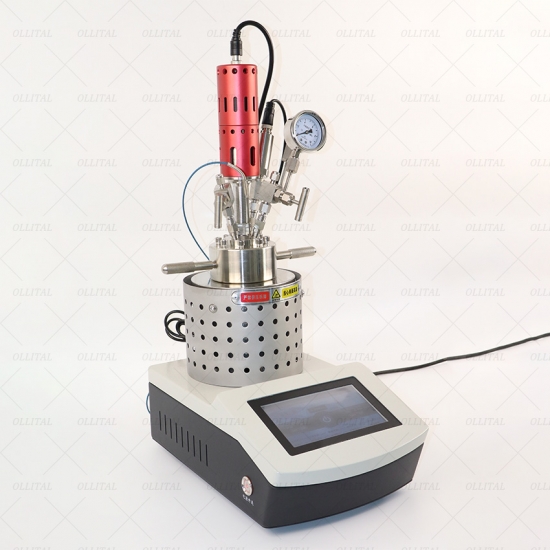

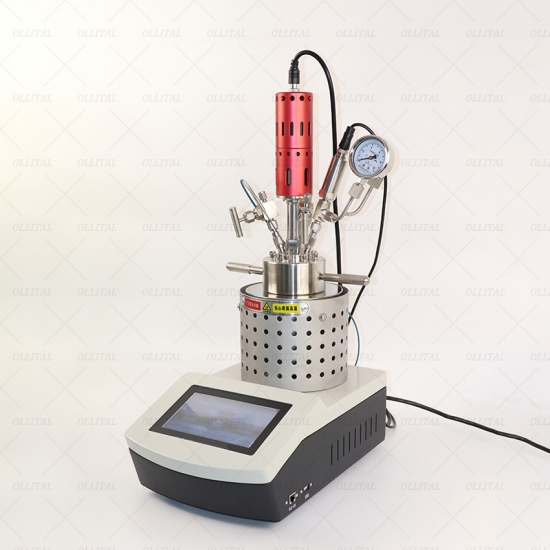

The PTFE Mechanical Stirrer Mini High Pressure Reactor is a compact laboratory-scale reactor designed for safe, precise, and efficient research experiments. Built with PTFE-coated mechanical stirring and a robust stainless steel body, this micro reactor provides excellent chemical resistance and uniform mixing, making it ideal for pharmaceuticals, fine chemicals, materials science, and catalyst studies.
Key Features

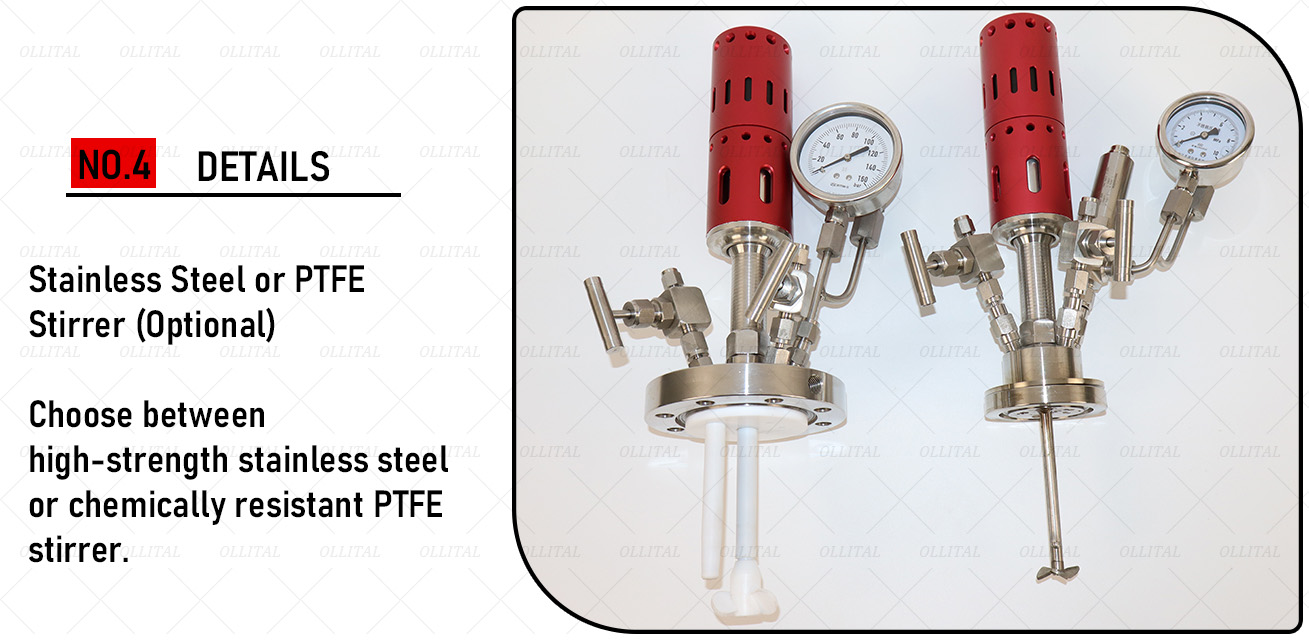

PTFE Mechanical Stirrer
Corrosion-resistant and suitable for aggressive chemicals.
Mini Lab-Scale Design
Compact size, available in 25–500 mL capacities.
High Pressure & Temperature Capability
Supports up to 20 MPa and 350°C.
Stainless Steel Chamber
Durable and safe for high-pressure reactions.

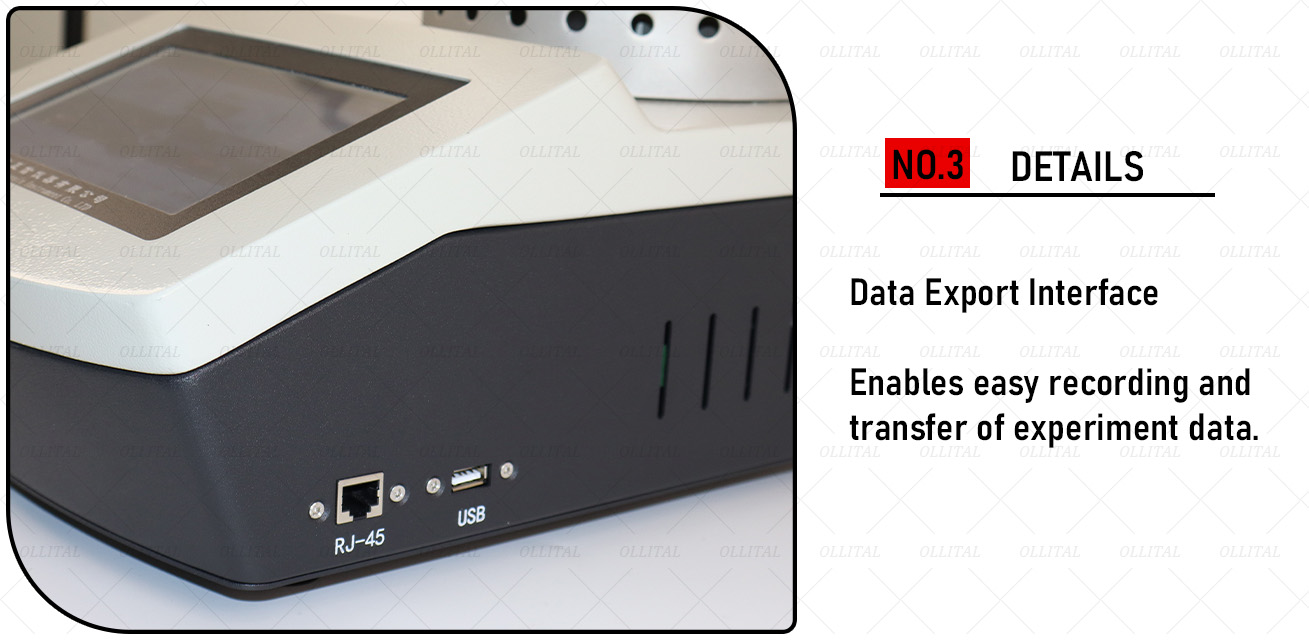

Data Export Interface
Allows monitoring, recording, and process tracking.
Applications
Catalyst evaluation and hydrogenation
Polymer and material synthesis
Fine chemical and pharmaceutical research
Gas–liquid and multiphase reaction studies
Advantages
Safe, leak-free operation with reliable sealing
Excellent resistance to strong acids, alkalis, and solvents
Flexible stirrer choice: PTFE or stainless steel
Compact desktop-friendly design
|
Model
|
OLT-HP-10
|
OLT-HP-25
|
OLT-HP-50
|
OLT-HP-100
|
OLT-HP-250
|
OLT-HP-500
|
|
Volume(ml)
|
10
|
25
|
50
|
100
|
250
|
500
|
|
Service temperature(℃)
|
RT-350℃,Higher temperatures can be customized according to customer requirements
|
|||||
|
Use pressure(Mpa)
|
-0.1-10 Standard 10Mpa, customized according to customer requirements
|
|||||
|
Heating power(w)
|
600
|
600
|
1000
|
1000
|
1500
|
1500
|
|
Control mode
|
PID artificial intelligence adjustment, LCD digital display
|
|||||
|
Mixing form
|
Magnetic stirring, Mechanical stirring (Optional)
|
|||||
|
Mixing power(w)
|
80
|
|||||
|
Stirring speed(rpm)
|
0-1500
|
|||||
|
Positive and reverse regulation
|
Positive inversion
|
|||||
|
Temperature setting
|
Self setting function of temperature
|
|||||
|
Safety protection
|
Set upper temperature limit, over temperature alarm, self power-off protection
|
|||||
|
Timing function
|
Working time and holding time can be set regularly
|
|||||
|
Timing function supply voltage
|
AC 108V-240V 50Hz
|
|||||
