Product Orgin:
ChinaShipping Port:
XiamenModel Number:
OLT-HP-500Compliance:
CE CertifiedMinimum Order Quantity:
1Capacity:
500mlWarranty:
1 year
Product Description

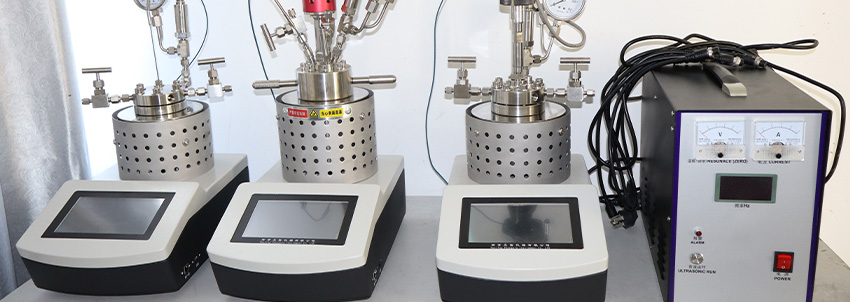

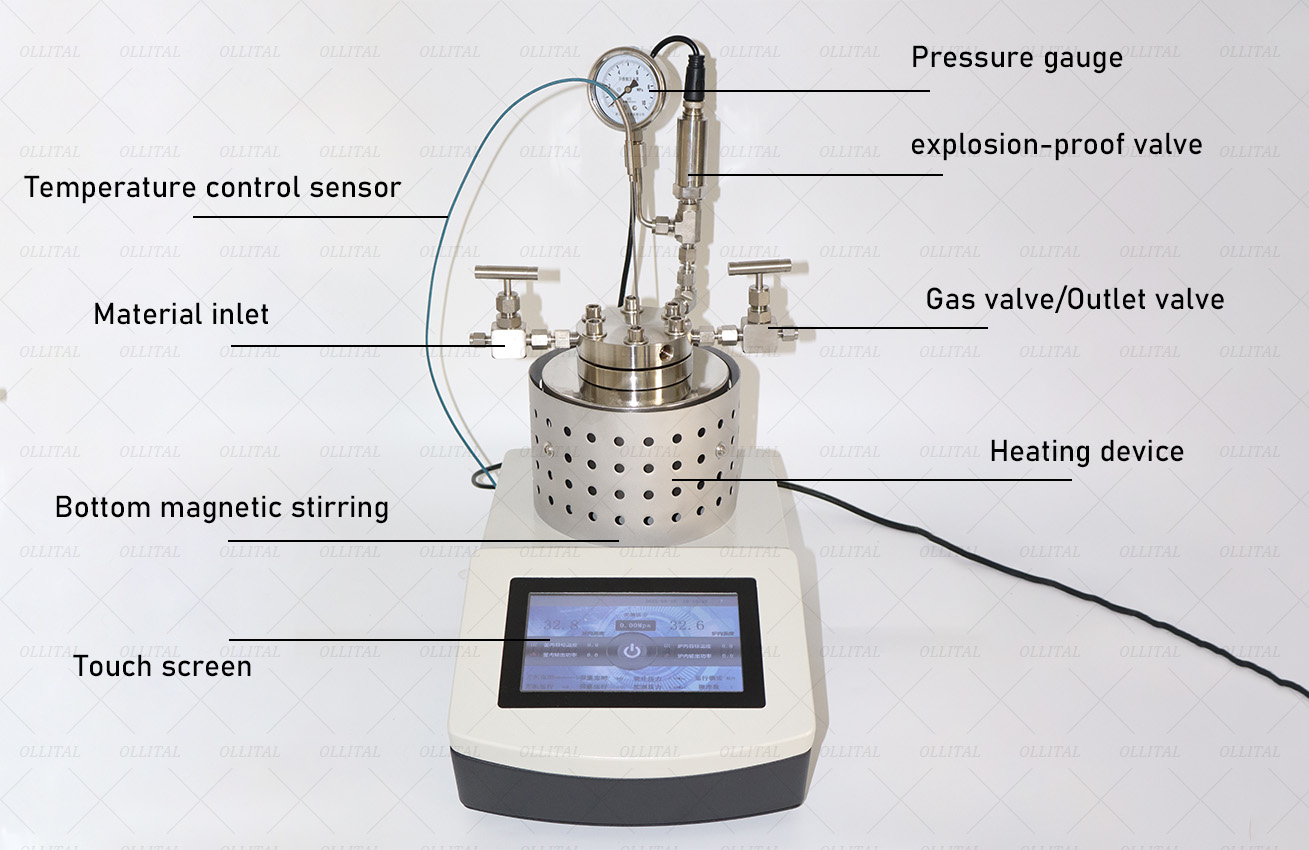

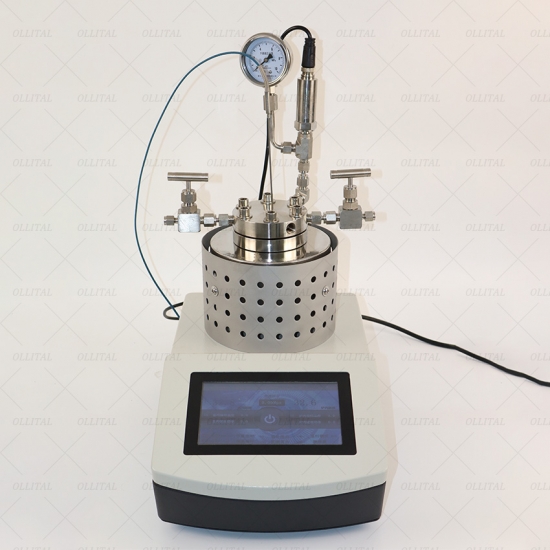

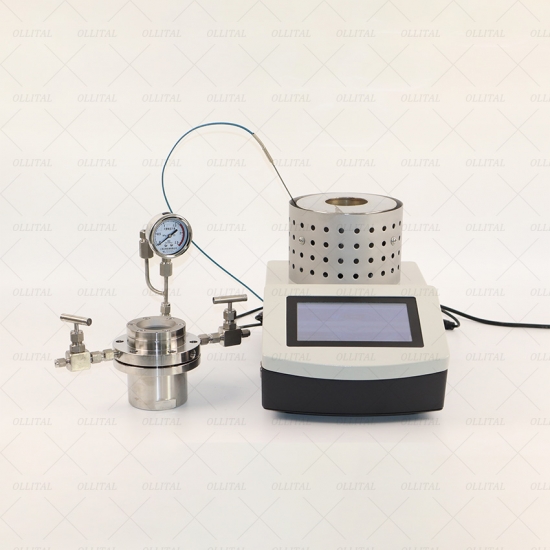

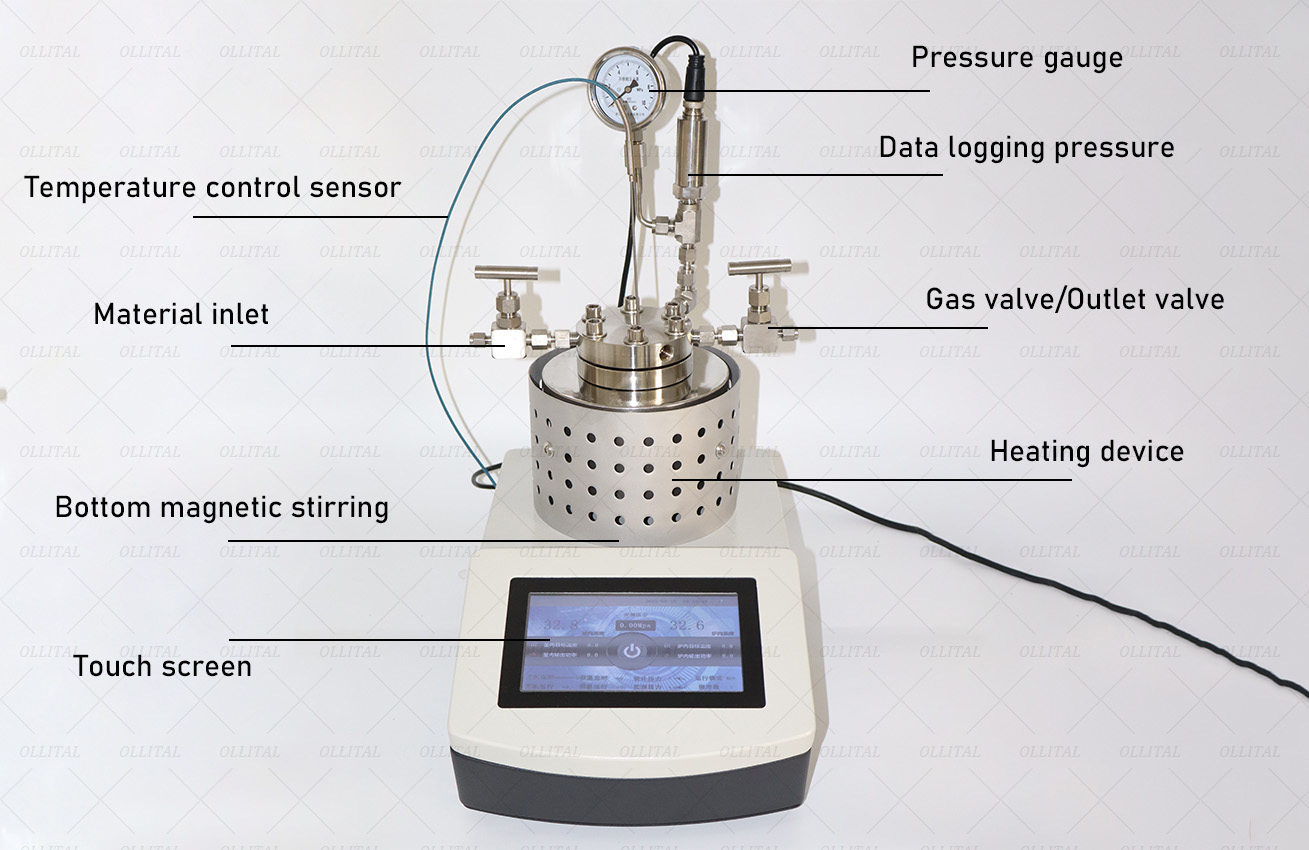

The Laboratory Stainless Steel High Pressure Reactor Micro Desktop Magnetic Stirring Autoclave is a compact, research-grade reactor system designed for safe, precise, and efficient chemical reactions under controlled high-pressure and high-temperature conditions. With its stainless steel construction, magnetic stirring drive, and desktop-friendly design, this autoclave is ideal for laboratories conducting advanced experiments in chemistry, materials, pharmaceuticals, and energy research.
Key Features

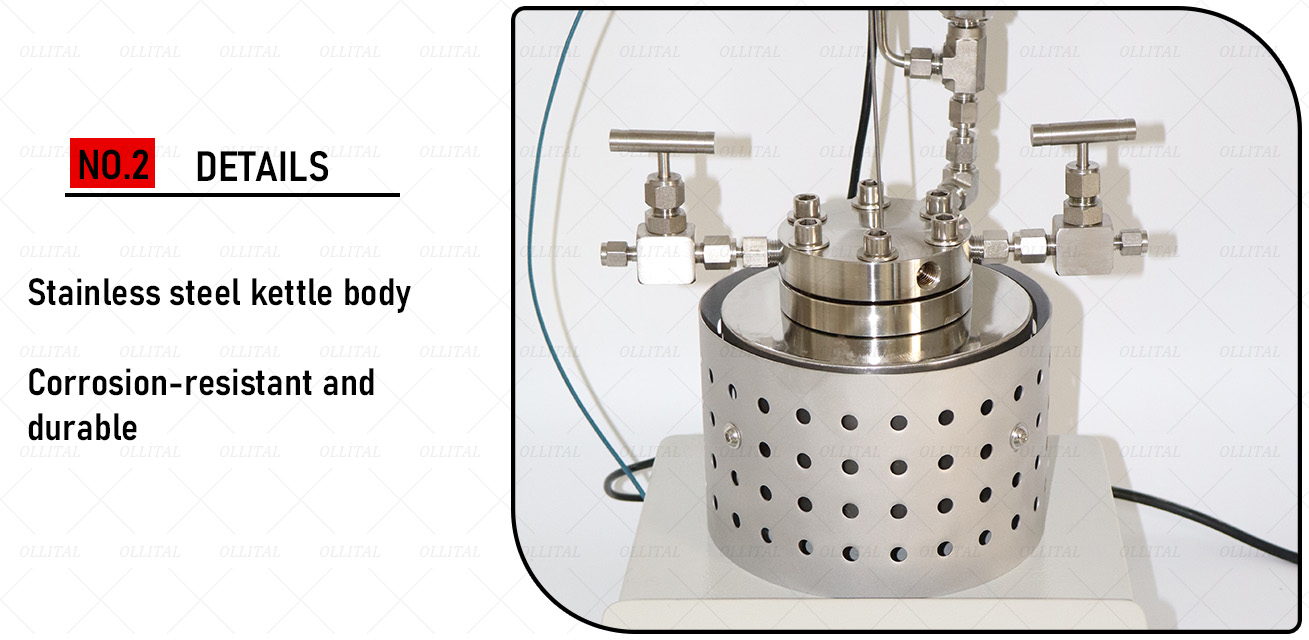

Durable Stainless Steel Construction
Made of high-quality stainless steel (316L or optional alloys) for excellent corrosion resistance and long service life.
Magnetic Stirring Technology
Leak-free magnetic coupling ensures safe and reliable stirring.
Provides uniform mixing for gas–liquid and multiphase reactions.
High Pressure & Temperature Capability
Supports pressures up to 20 MPa (200 bar) and temperatures up to 350°C.
Multiple safety features including pressure relief valve and rupture disc.
Compact Desktop Design
Small footprint, easy to place on laboratory benches.
Available in micro capacities from 25 mL to 500 mL.
Flexible Stirring Options
PTFE or stainless steel stirrers available to suit different reaction media.
Technical Specifications (Customizable)
Volume: 25 mL – 500 mL
Pressure Range: up to 20 MPa
Temperature Range: RT – 350°C
Stirring Speed: 0 – 1500 rpm
Material: 316L Stainless Steel, Hastelloy, Titanium (optional)
Heating Method: Electric heating jacket / oil bath

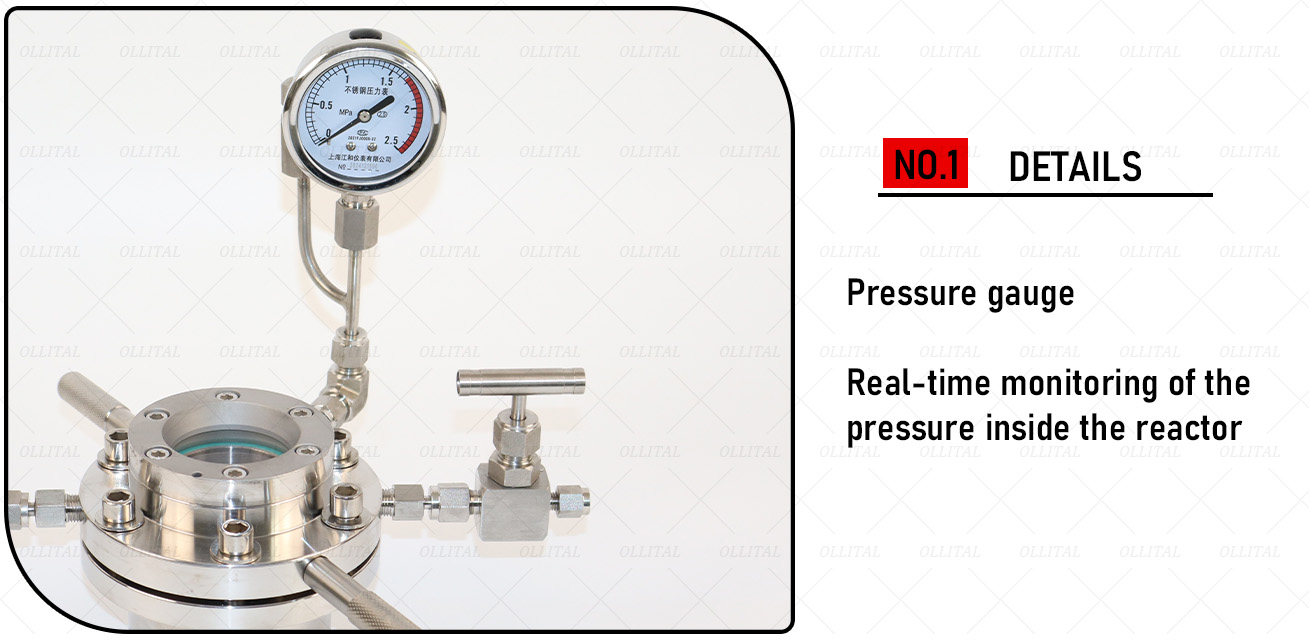

Safety Devices: Pressure gauge, rupture disc, safety valve

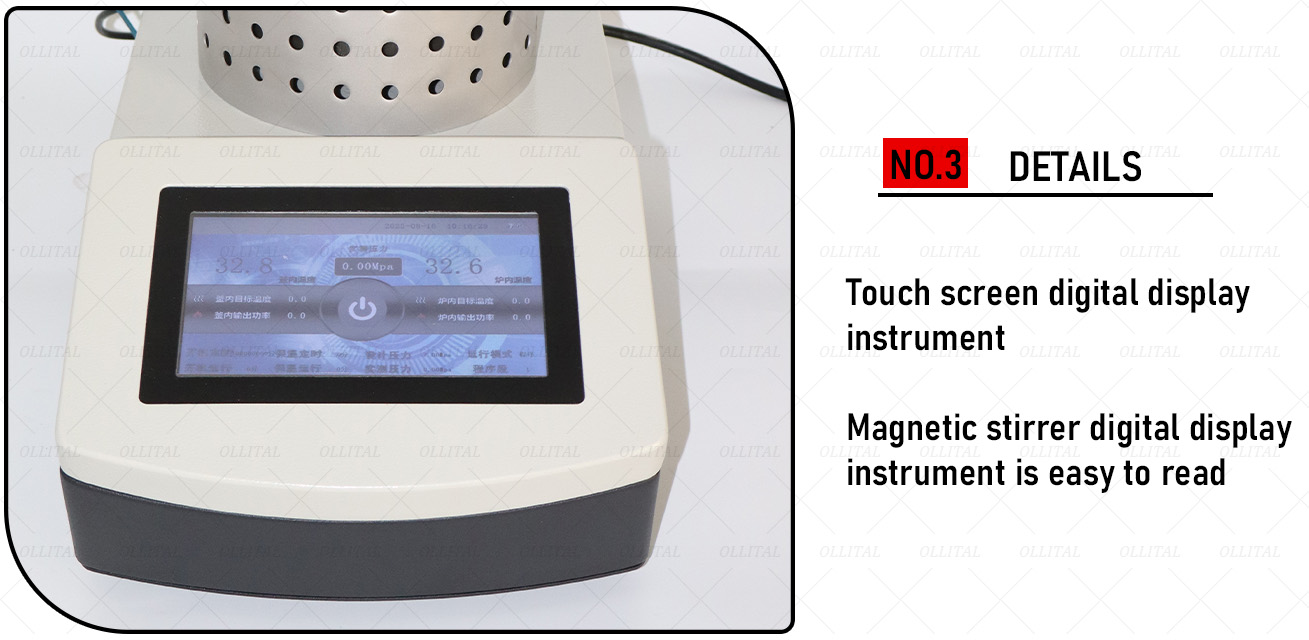

Control System: Digital temperature and pressure display; optional programmable controller
Applications
Catalytic hydrogenation and oxidation
Polymer and advanced materials synthesis
Fine chemical and pharmaceutical intermediate research
Gas–liquid and multiphase reaction studies
High-pressure thermochemical experiments
