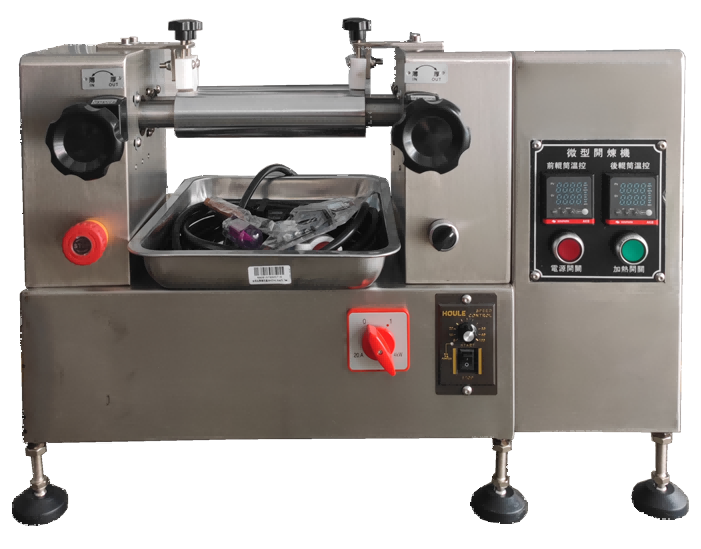

2-inch desktop electric heating open mill

  • Item NO.:

    ZG-50DR

  • Lead Time:

    1-7 days

  • Product Orgin:

    China

  • Model Number:

    ZG-50DR

  • Compliance:

    CE Certification

  • Minimum Order Quantity:

    1

  • Power:

    AC220V

  • Warranty:

    1 year
  • Product Details

1. Mixed capacity: 2—20g

2. Drum temperature: normal temperature~300 ℃

3. Heating method: Electric heating (latest process design, patented electric heating, automatic constant temperature and precision)

4. Temperature accuracy: ± 2 ℃ (The temperature controller adopts a high-precision PID intelligent microcomputer control system, with automatic calculation function of internal constants, which is more accurate than manual setting and time-saving. It has an over temperature alarm function to protect machinery and production materials) (Huibang)

5. Drum speed: around 0-13 revolutions per minute (adjustable speed)

6. Roller speed ratio: 1:1.20 (customized for other ratios)

7. Drum size: ф 50mm × L150mm (surface coated with hard chrome polishing treatment, non stick material, no delamination)

8. Roller spacing: Adjustable from 0.1 to 3mm

9. Safety device: an emergency stop button

10. Motor: 300W1 units

11. Volume: (W × D × H) 660 × 360 × 500mm

12. Drum lubrication: The excellent wear-resistant bearing has a large contact area, which prolongs the service life by two-thirds compared to traditional copper sleeves

13. Mechanical structure: Steel plate (lighter weight, smaller volume, higher mechanical strength, and better toughness than traditional cast iron)

14. Power supply 3 #, AC220V, 5A three pin power plug commonly used for household voltage (very convenient)

15. Weight approximately 60kg



Parameter

Product name

Specification and model

motor

Motor 300W

relay

Omron Japan

Small circuit breakers and contactors

Andeli Group

roller

Surface hard chrome polishing treatment

barrier

Teflon board

rack

30 * 40 grinding tool steel






Feature:
1. Construction of mill rolls: drilled roll, bored roll, grooved roll

2. We can design speed ratio as per customers' formula and processing requirements.

3. Frame, frame cap and base are welded and treated by annealing for stress relieving.

4. Rolls material is chilled cast alloy iron which hardness is reach to 70HB.

5. Brake and emergency stop device can ensure the safety of personnel and equipment.

6. Auto feeding oil or grease lubrication, it is easy to maintain and protect machine.

7. Human nature designed controlling system ensure labor safety.

8. Methods of adjusting roll nip: manual or electric

Intelligent control panel and PLC control system:
1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current,
torque and recipe code.
2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.
3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet
communication interface.
4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.
Packing & Shipping
