Model Number:
OLT-UV300Compliance:
CE CertifiedMinimum Order Quantity:
1Voltage:
108V-240V 50/60HZPower:
150 ~ 300W continuous adjustableWarranty:
1 yearPackaging Details:
Export wooden packageDelivery Time:

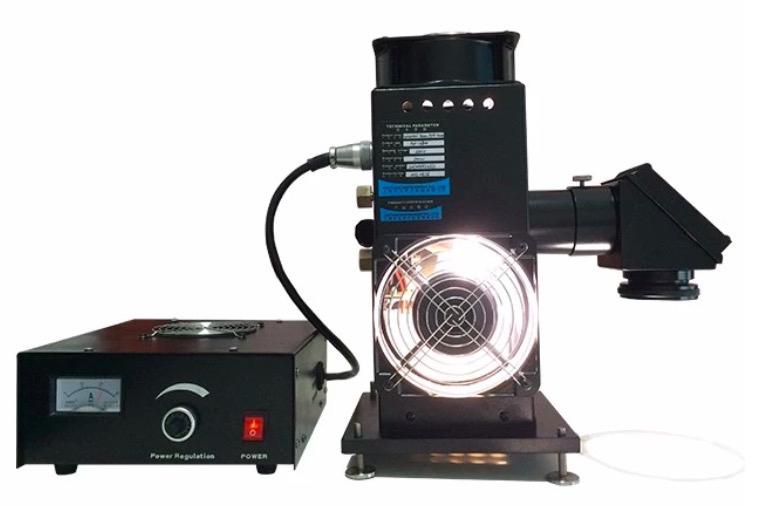

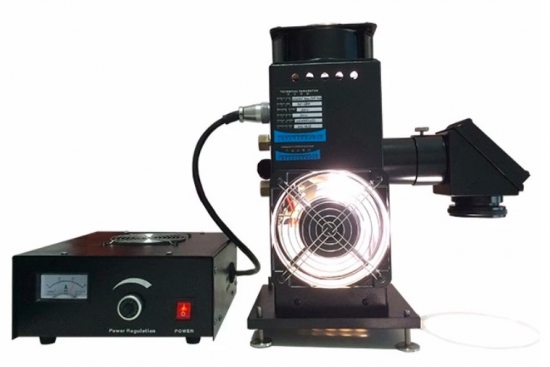

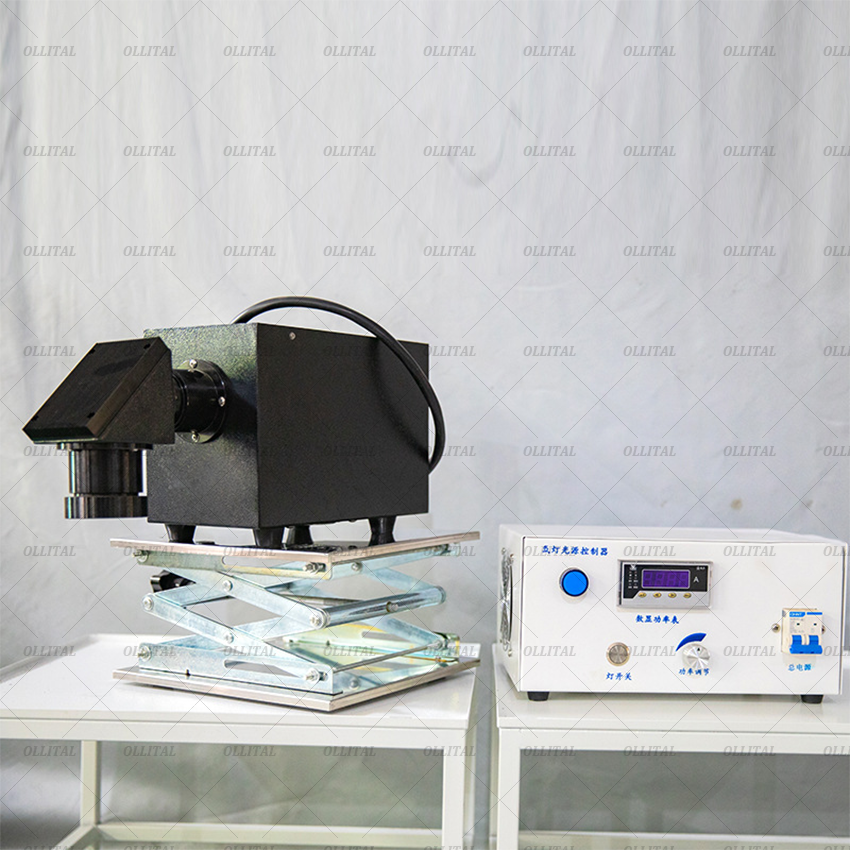

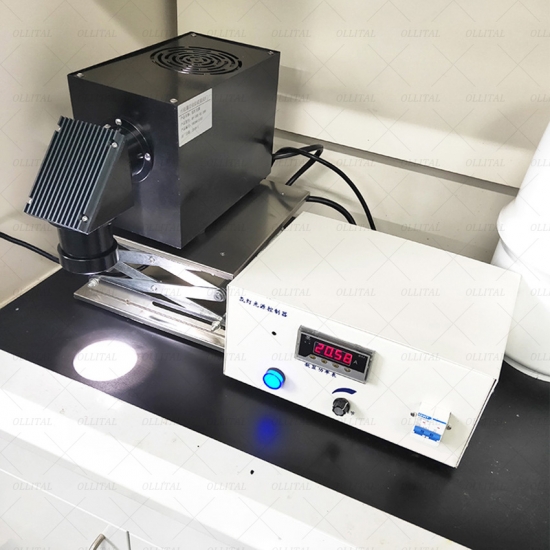

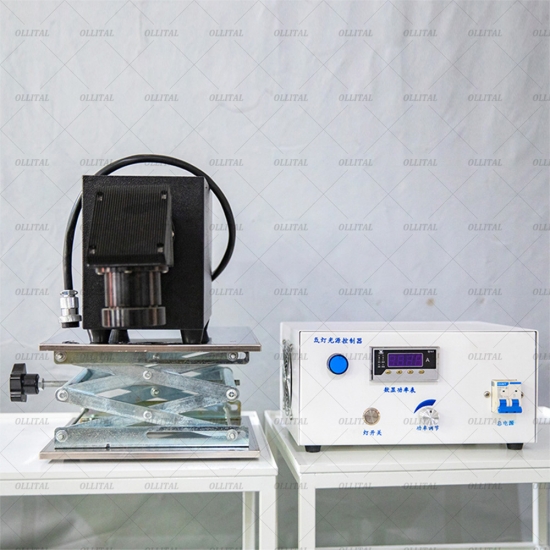

2-5 days200-2500nm Spectral Range From UV to VIS Short Arc Spherical Xenon Lamp
★ Spectral range from UV to VIS(200-2500nm).
★ Optical axis height is 157-193mm.
★ Output beam diameter is 46mm.
★ Supports wide range of accessories.
★ Fan cooled housing
Lamp Power
300 W
Power Adjustment Range
100–300 W, continuously adjustable
Lamp Life
≥1500 h (full power)
Current
8–22 A, adjustable
Total Light Power
50 W
Parallel Beam Spot Diameter
30–62 mm (depending on irradiation distance)
Parallel Beam Divergence Angle
Avg. 6°
Cooling Method
High-temperature resistant metal fan + metal heat dissipation module
Light Collection Method
Ellipsoidal total reflection
Optical Window Diameter
24.0 mm (circular)
Working Spot Diameter
30–62 mm (circular)
Light Output Form
Horizontal, vertical, or any angle (rotatable along optical axis, 45° incidence then vertical downward, can also be horizontal)
Infrared Transmission
≥80%, wavelength range 800–1100 nm
Visible Reflection
≥95%, wavelength range 350–780 nm
Filter Mounting Device
Yes, diameter 58 mm
Standard Configuration
300 W xenon lamp power supply, cooling module, rotation head, filter device, one transmissive-reflective filter (high-reflective visible), one UV filter, one visible light filter, stainless steel lifting platform
OLLITAL series is mainly applied to research gas / liquid phases, fixed / simulated visible light, could reaction vessel load TiO2, Photochemical reaction under conditions of photocatalyst and so on. This series can provides samples of analytical reacting product and free radical, and to measure reacting kinetic constant, quantum yield; it is widely used in fields of Chemosynthesis, environment protection, and life science, etc.
Product Description
The 200–2500 nm Short Arc Spherical Xenon Lamp is a high-performance light source designed for applications requiring a broad spectral output spanning from ultraviolet (UV) to visible (VIS) and near-infrared (NIR) wavelengths. Its compact spherical design and short arc configuration provide high intensity, uniform illumination, and stable spectral output, making it ideal for spectroscopy, optical testing, photoelectric experiments, solar simulation, and material research.
This lamp offers a reliable and precise light source for laboratories, industrial R&D, and quality control environments, where broad spectral coverage and high stability are critical.
Key Features
Broad Spectral Range
Covers 200–2500 nm, from UV through visible to near-infrared.
Suitable for applications that require full-spectrum light.
Short Arc Spherical Design
Compact design for efficient light collection.
High-intensity point source with uniform illumination.
Stable Spectral Output
Ensures reproducible and accurate optical measurements.
High Efficiency and Long Life
Optimized for long operating hours with minimal output degradation.
Flexible Integration
Compatible with spectrometers, solar simulators, optical benches, and other laboratory systems.
Precise Thermal Management
Advanced cooling design ensures stable operation under continuous use.
Applications
UV–VIS–NIR Spectroscopy
Solar simulation and photochemical experiments
Optical material testing and characterization
Photoelectric device research and calibration
Laboratory, industrial, and R&D light source applications
Advantages
Broad spectral coverage from UV to NIR in a single lamp
High intensity and uniform illumination for precise measurements
Compact, easy-to-install spherical design
Long operating life and stable performance
Suitable for both laboratory and industrial applications
Optional Configurations
Different power ratings (e.g., 150 W, 300 W, 500 W)
Customized lamp mounts for integration into optical systems
Cooling and temperature control modules
Accessories such as reflectors, filters, and light guides
