High quality 1.5L scale lab spray dryer equipment
Lab scale spray dryer is suitable for the production of in universities, research institutes and food and pharmaceutical chemical enterprises.
Against the backdrop of the continuous growth in demand for high-throughput sample pre-processing, as experts in precision laboratory equipment manufa
In today's increasingly refined energy efficiency evaluation, material performance research, and chemical reaction thermal measurement, the requiremen
In the wave of laboratory and industrial chain innovation in the post-epidemic era, **freeze dryers** are quietly becoming an indispensable core equip
Working principle Two fluid atomizer (air flow atomizer) generates kinetic energy through the high-speed flow of compressed air or steam, cutting and
Lead Time:
3-5 daysShipping Port:
XiamenModel Number:
OLT-SD8000BCompliance:
CE CertifiedMinimum Order Quantity:
1Operation method:
PLC ControlMixing method:
Touch ScreenCapacity:
2L/hVoltage:
220V/50-60HzThis Lab spray dryer has Stainless steel shell and arc corner design.Equip with imported Schneider electrical components,PLC control system,self-priming peristaltic pump and oil-free air compressor,is suitable for producing solid powder or particle products from liquid materials drying,such as emulsion, suspending liquid, liquor and so on.
It is widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.
Paramenters
|
Model
|
OLT-SD8000B
|
|
Max capacity
|
1500-2000ml/h
|
|
Temperature range of Inlet air
|
30C -280C
|
|
Temperature range of outlet air
|
40C -120C
|
|
Precision of temperature
|
± 1 C
|
|
Dryer time
|
1.0-1.5 S
|
|
Speed of squirmy pump
|
30-2000ml/h
|
|
Consume of dryer air
|
0-330m3 /h, max pressure: 686Pa
|
|
Consume of spray air
|
0-4.2m3 /h, spray pressure: 2-5bar
|
|
Spray system
|

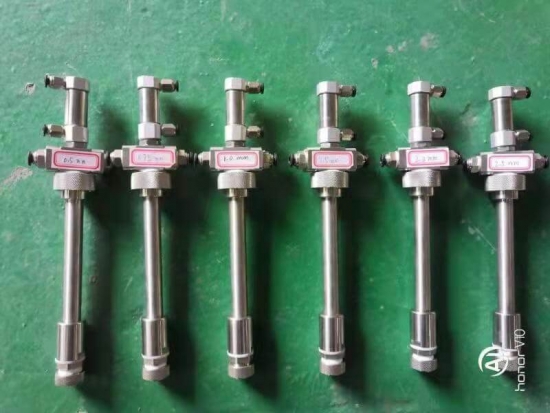

2 liquid nozzles with standard 1.0mm jet
Options of 0.5/0.7/1.5/2.0/2.5mm
|
|
Spray direction
|
Downwards co-current
|
|
Power
|
3.5KW 108V-240V
|
|
Dimensions
|
650*500*1550 ( mm ) L * W* H
|
Main Features
1. High-tech nozzle,high efficiency.

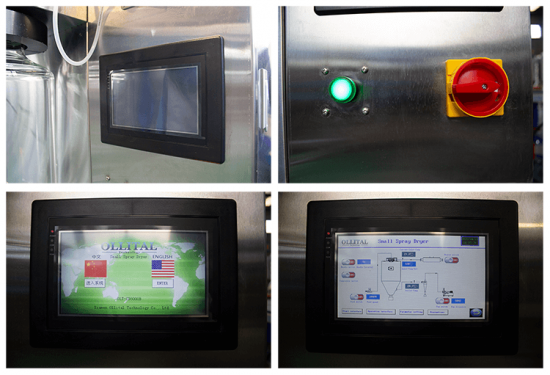

2. LCD touch-screen display:inlet air temperature/outlet air temperature/pump speed/air volume/needle frequency.
3. Nozzle cleaner(needle)is set in the machine,and nozzle can be cleaned automaticaly by the needle when blocked.Needle frequency can be adjusted.
4. Shutdown protection function:the system will stop when pressing the stop botton,all parts except the fan will stop working.Heating system won’t be damaged in this way.
5. Material won’t get polluted due to the special material of the atomizing.drying and collection system.
6. Two-fluid nozzle,stainless steel,compact stucture,no accessory device.
7. PID constant temperature control,precise temperature control,precision is ±1℃.
8. Feed rate can be adjusted by the peristaltic pump,Min. samples can reach 30ml.
9. Uniform product powder,above 95% powder keep within same size range.
Detailed Images

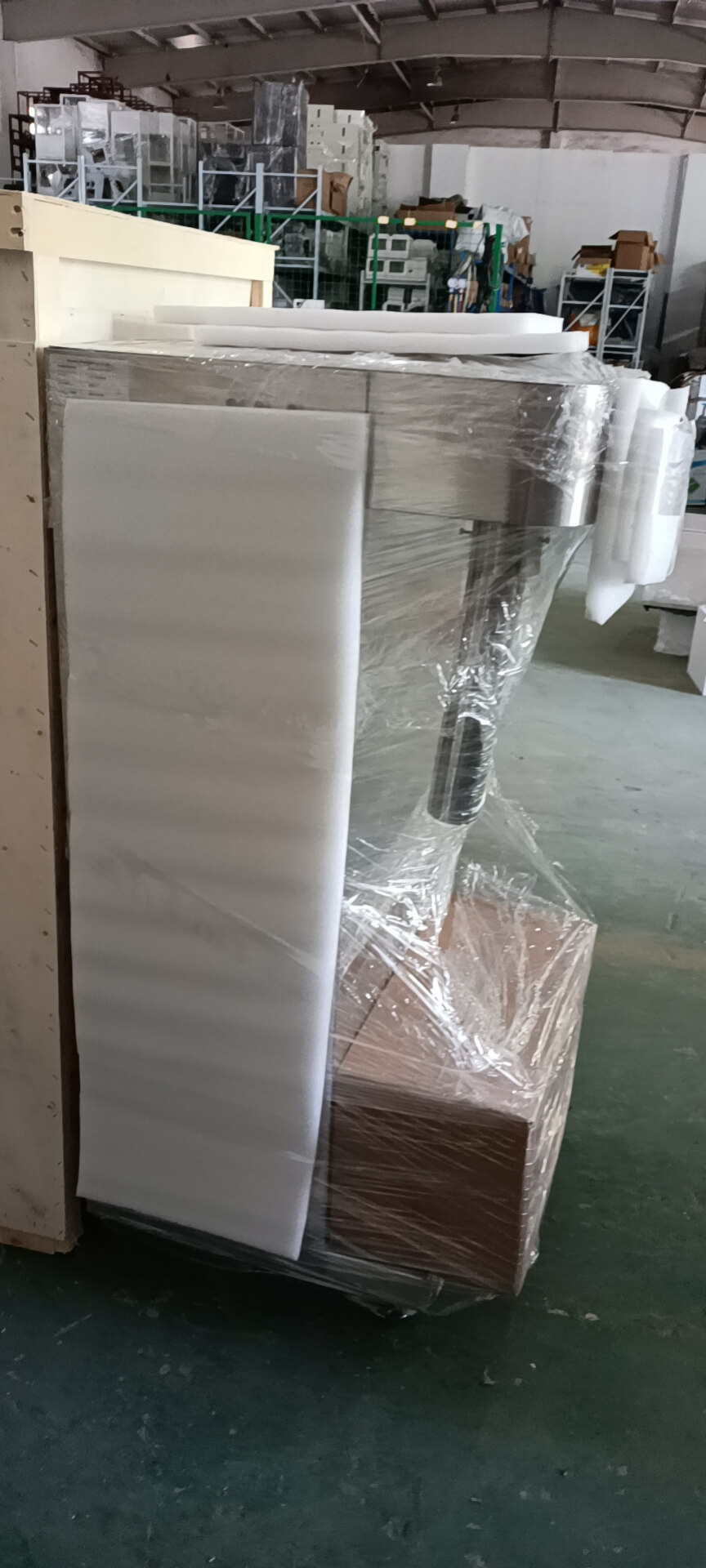

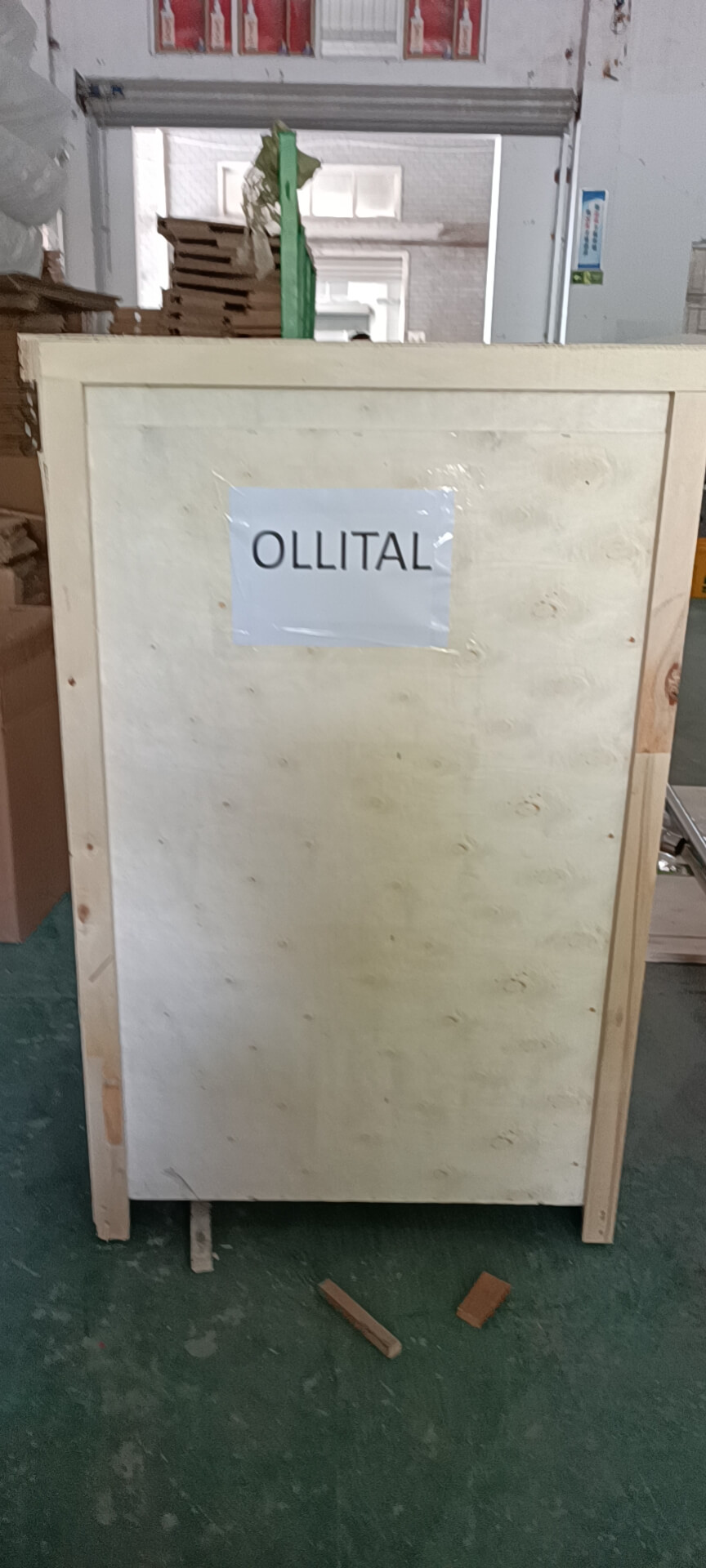

Packing and shipping
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
Stainless steel spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying
