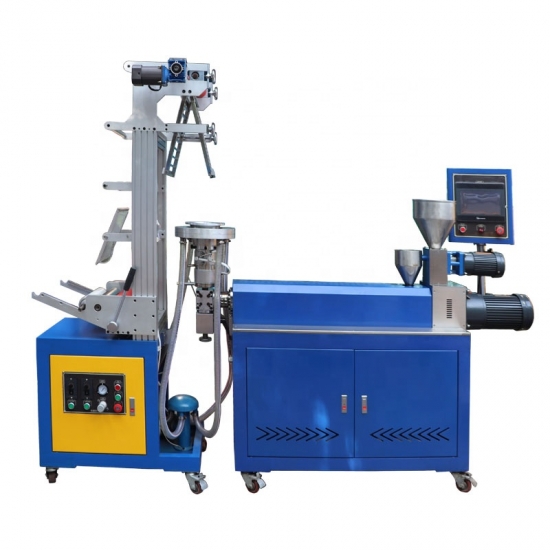

Automatic Double Layer Plastic Making Blowing Film Machine

  • Lead Time:

    1-3 days
  • Model Number:

    OLT-DG500
  • Minimum Order Quantity:

    1
  • Voltage:

    380V 50HZ
  • Warranty:

    1 year
  • Product Details

The machine is used to test the feasibility of blown film of polymer materials.This product is mini model with compact size and fine structure.It is suitable for PE materials.The whole machine is heated by mica, and the heating time is only 20 minutes.The feeding speed, traction speed and winding speed can be adjusted manually.This machine equipped with four temperature control modules.The heating zone temperature can be dynamically displayed and the heating temperature can be manually adjusted.

Technical Parameters

Model
OLT-430(Single layer)
OLT-430-2(Double coextrusion) OLT-430-3(Three ayer co-extrusion)
 Screw diameter
¢25
¢25
¢25
L/D
1:33
1:30
1:30
Die diameter
¢25
¢40
¢40
Main motor power
2.2
2.3*2 2.3*3
Traction roller size
80*L250
85*300 85*300
Blowing width
100-180
100-220 100-220
Volume (W×D×H)
1800*800*2100
26060*880*2100 2600*1000*2100
Power Supply
                   3∮, AC380V
3∮, AC380V
3∮, AC380V
Why Choose Us
Packing & Delivery


Send Us An Inquiry
We will contact you as soon as possible!
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

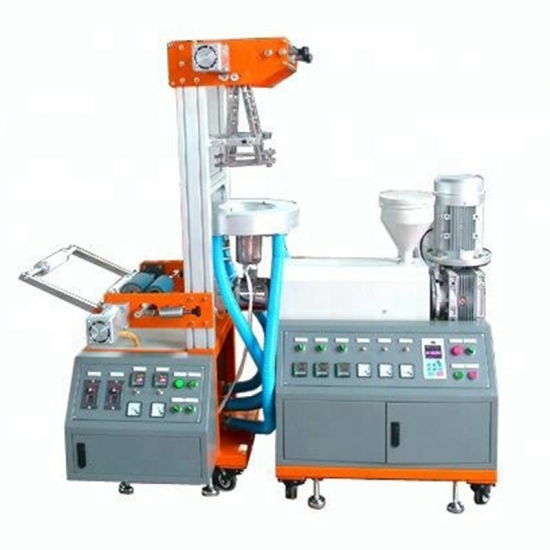

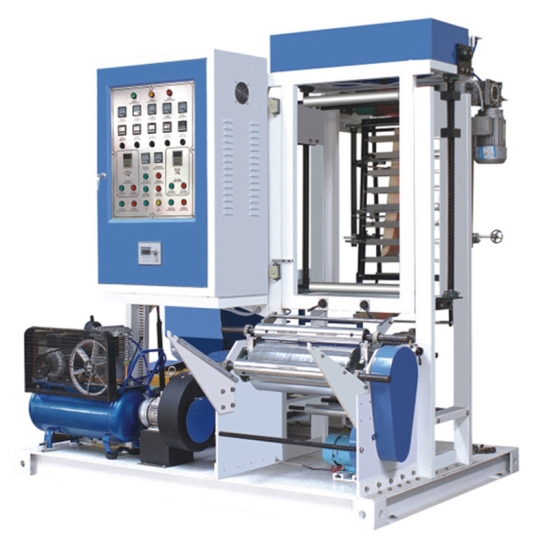

RELATED PRODUCTS
