High Speed ABA Plastic Blown Film Making Machine

  • Lead Time:

    1-3 days
  • Model Number:

    OLT-BF600
  • Minimum Order Quantity:

    1
  • Mixing method:

    LCD
  • Product Details

It is used for blowing various plastic film of low density polyethylene (LDPE),high density polyethylene (HDPE)and linear low density polyethylene(LLDPE)etc., Which are Widely used for food, textiles, and daily necessities such as the packing industry and export packing and industrial packing. And after formula it can produce pearly luster membrane and degradable film.

Parameter

Model
OLT-BF600
OLT-BF800
OLT-BF1000
Dia. of Screw
Φ40mm*2
Φ45mm*2
Φ50mm*2
Ratio of Screw
30:1
30:1
30:1
Speed of Screw
10-140rmp
10-140rmp
10-140rmp
Max. Output
70-80Kgs/h
80-100Kgs/h
90-110Kgs/h
Power of Main Motor
11Kw*2
15Kw*2
18.5kw*2
Die Model
Φ50mm
Φ80mm
Φ220mm
Thickness of Film
0.008-0.12mm
0.008-0.12mm
0.008-0.12mm
Max. Folding Width of Film
200-600mm
200-800mm
500-1000mm
Machine Weight
3.0T
4.0T
6.0T
Machine Dimension
5800*2400*4800mm
5800*2600*5200mm
6000*2800*5200mm

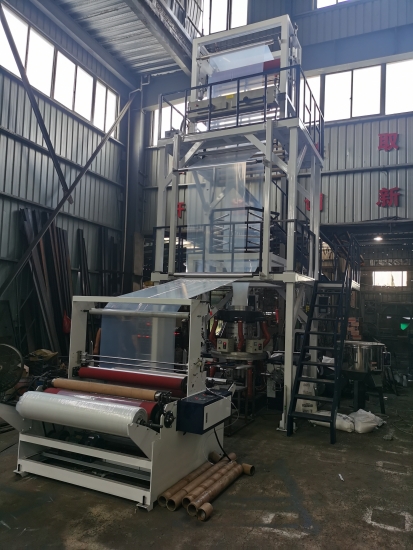

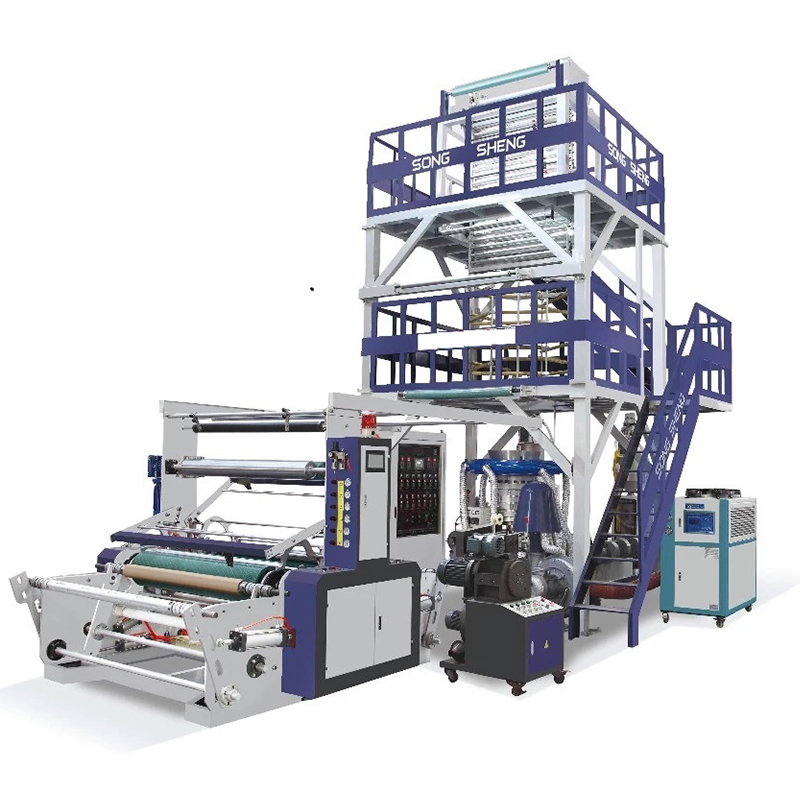

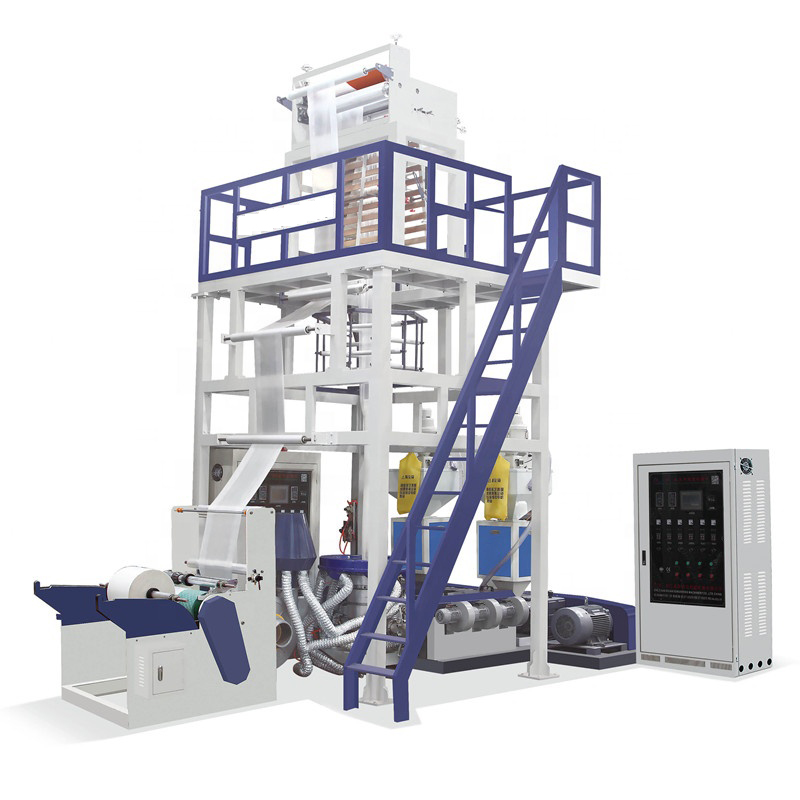

Main Machine Picture

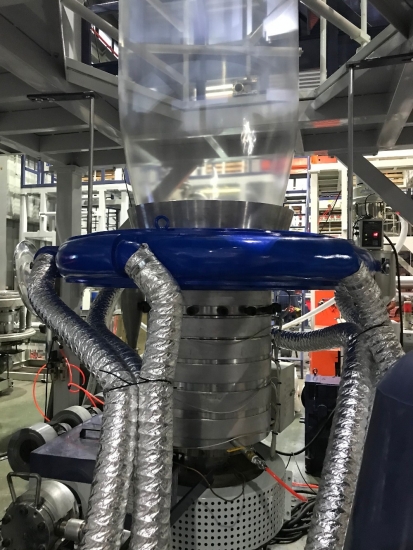

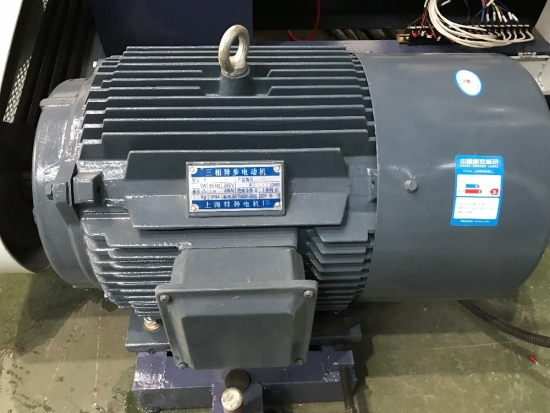

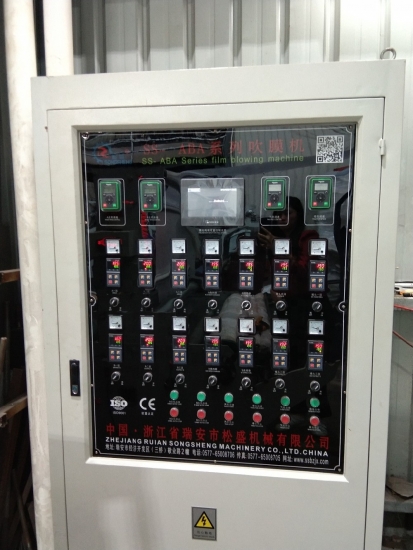

Detailed Image

Packing & Shipping
