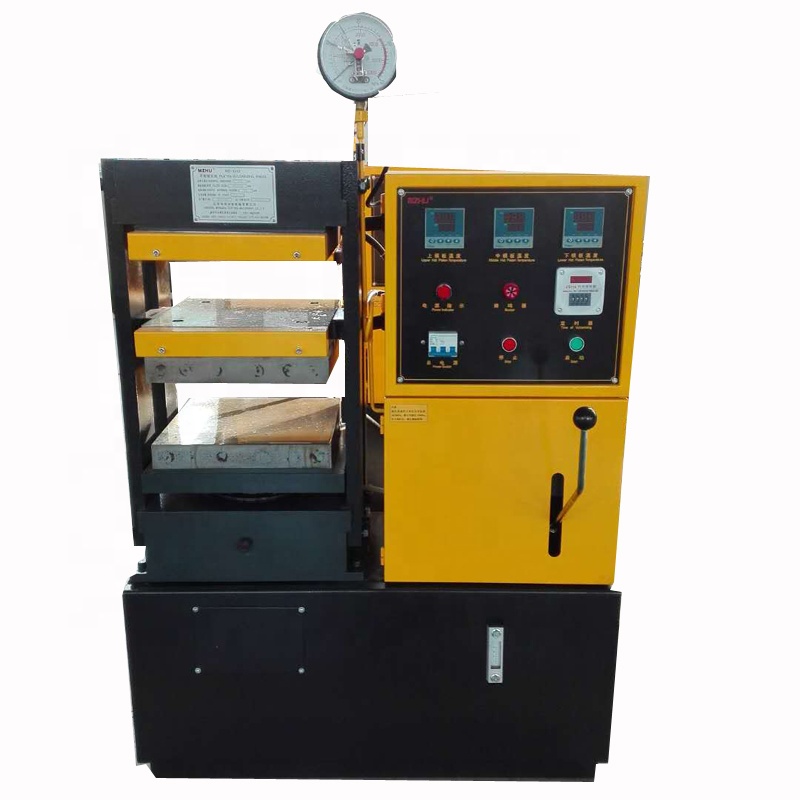

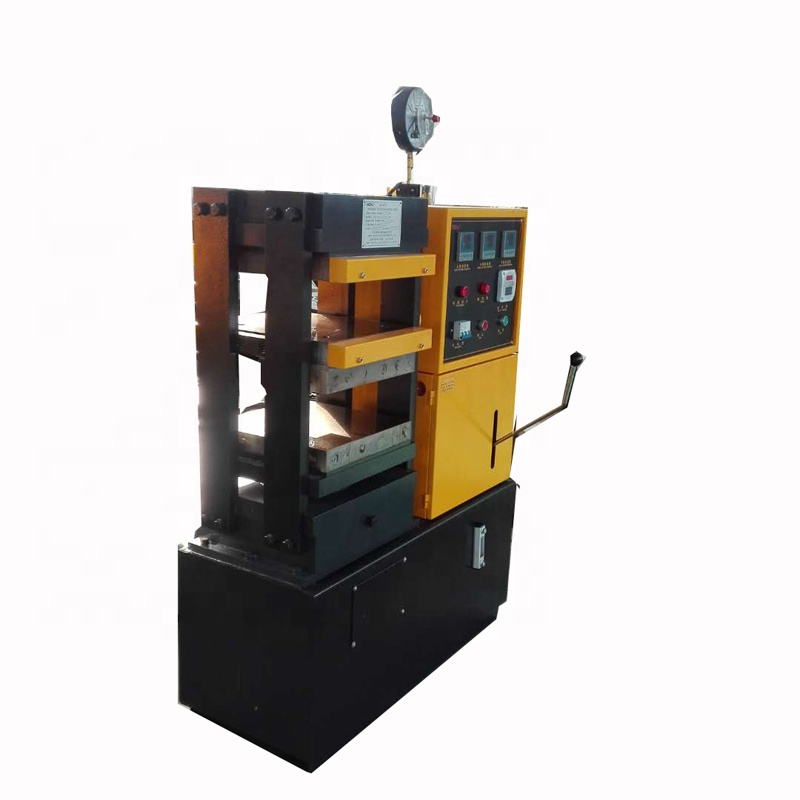

Belt Curing Press For Rubber And Plastic Hot Plate Vulcanizing

  • Model Number:

    OLT-406
  • Minimum Order Quantity:

    1
  • Operation method:

    Touch Screen
  • Warranty:

    1 year
  • Product Details

The material is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature,make the material shaping,testing and serving as the basis for the ingredient of mass production.


Parameter

Model OLT-406A OLT-406B
OLT-406C
OLT-407
Control mode Manual Type Electric Type PLC Control Vacuum
Pressure (T) 10/20/30/50/75/100 tons or customized
Temperature range  Room temperature -300 ℃
Size of Working board (mm) 300*300mm or customized
Volume (mm) 750*400*800mm 1000*600*1600mm 1000*600*1600mm 1100*600*1700mm
Weight (kg) 210 750 750 800
Power supply 3∮,AC380
Special models can be designed according to customers' requirements

Main Features

1) Equipped with a high performance hydraulic system with automatic pressure compensation function;

2) High precision and high wear-resistant guide posts to support strong load force and stable lifting;

3) Electric heating and PID temperature control to fast heat and precisely control the temperature;

4) Adjustable molding time;

5) Automatically increase and release the pressure when reaching the set time.

6) PLC Control system

Operation method

Put the raw material into cast die and clamp the die between the electric heating plates of the machine,then apply heat and compress it in order to mold the raw materials to get the specimens for testing inlaboratory.
