Automatic Rubber Vulcanizing Press Machine

  • Lead Time:

    1-3 days
  • Model Number:

    OLT-50T
  • Minimum Order Quantity:

    1
  • Operation method:

    Button
  • Warranty:

    1 year
  • Product Details

This machine consists of heating plate , beam and plate form , cylinder , base , hydraulic station , electrical system , etc . It is used to heat , vulcanize and solidfy various kinds of small size rubber molded products . It is also widely used for small lab use.

Parameter

Model
25 Ton
25 ton
50 ton
mold closing/clamping force
25 ton
25 ton
50 ton
stroke
150/200mm
150/200mm
150/200mm
working plate
300*300mm
350*350mm
400*400mm
cylinder diameter
152mm
152mm
200mm
motor power
22.2 kw
2.2 kw
2.2 kw
heater power
KW
25 KW
31 KW
plate clearance
150/200mm
150/200mm
150/200mm
type of mold opening
automatic mold closing , semi automatic mold opening
system pressure
16 Mpa
16 Mpa
16 Mpa
machine weight
about 700kg
about 800 kg
about 1100 kg
Remark: We can also design the non standard machine according to your need

Model
80Ton
100 Ton
120 Ton
mold clamping force
80 ton
100 ton
120 ton
stroke
300mm
300mm
300mm
working plate
500*500mm
600*600mm
700*700mm
cylinder
250 mm
300mm
320mm
motor Power
2.2 kw
2.2 kw
2.2 kw
Heater Power
34 KW
44 KW
57 KW
plate clearance
300mm
300mm
300mm
Type of mold opening
automatic motorized mold closing , semi-automatic mold opening
system pressure
16 Mpa
16 Mpa
16Mpa
Remark: we can also customize the non standard machine according to your need

Main Features

1.The machine adopts the semi-automatic control . The working program can be set in the cabinet and machine will work according to this program
2.Most spare parts for hydraulic system are imported from Taiwan
3.Machine body casting is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation
4.The machine pillars/ columns are made of medium carbon steel , and its hardness can reach HRC55-58
5.The cartridge heater adopts three stages winding, nichrome wire , non-rusty
6.Oil seal are from Japanese NOK and Sakagmi Brand , it is wear-resisitant ,durable and oil tight
7.Main electrical elements are from Schneider France ,which can stabilize machine performance

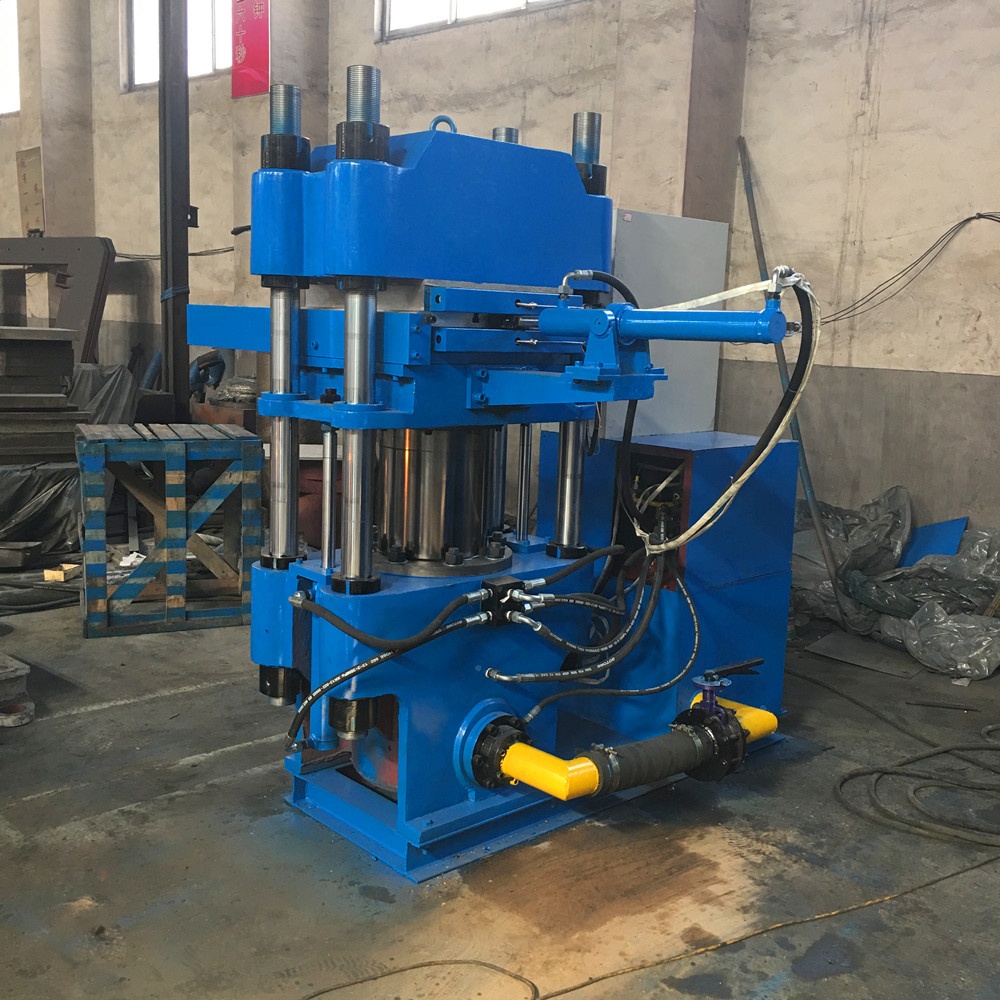

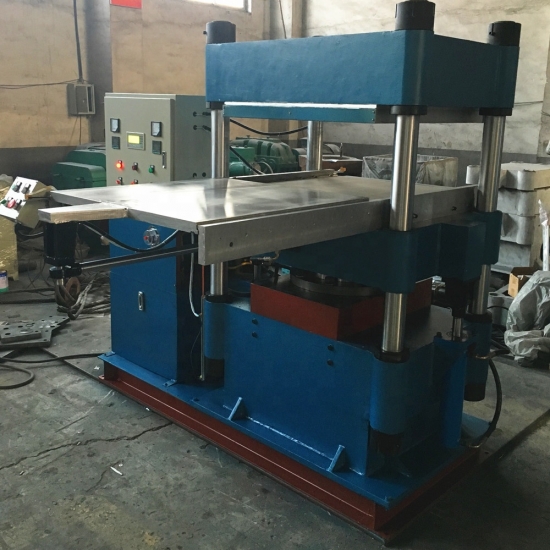

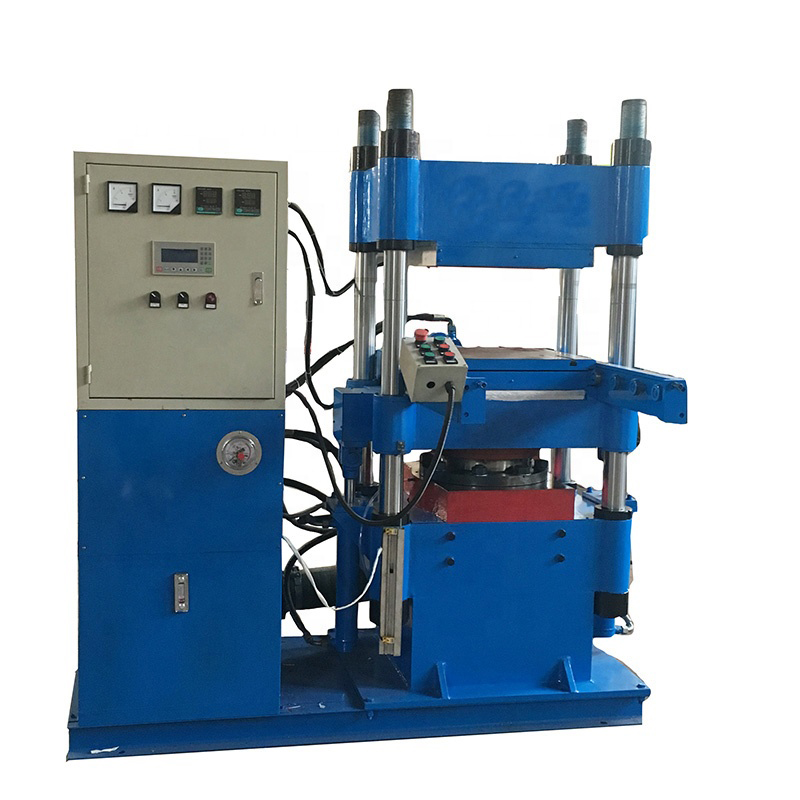

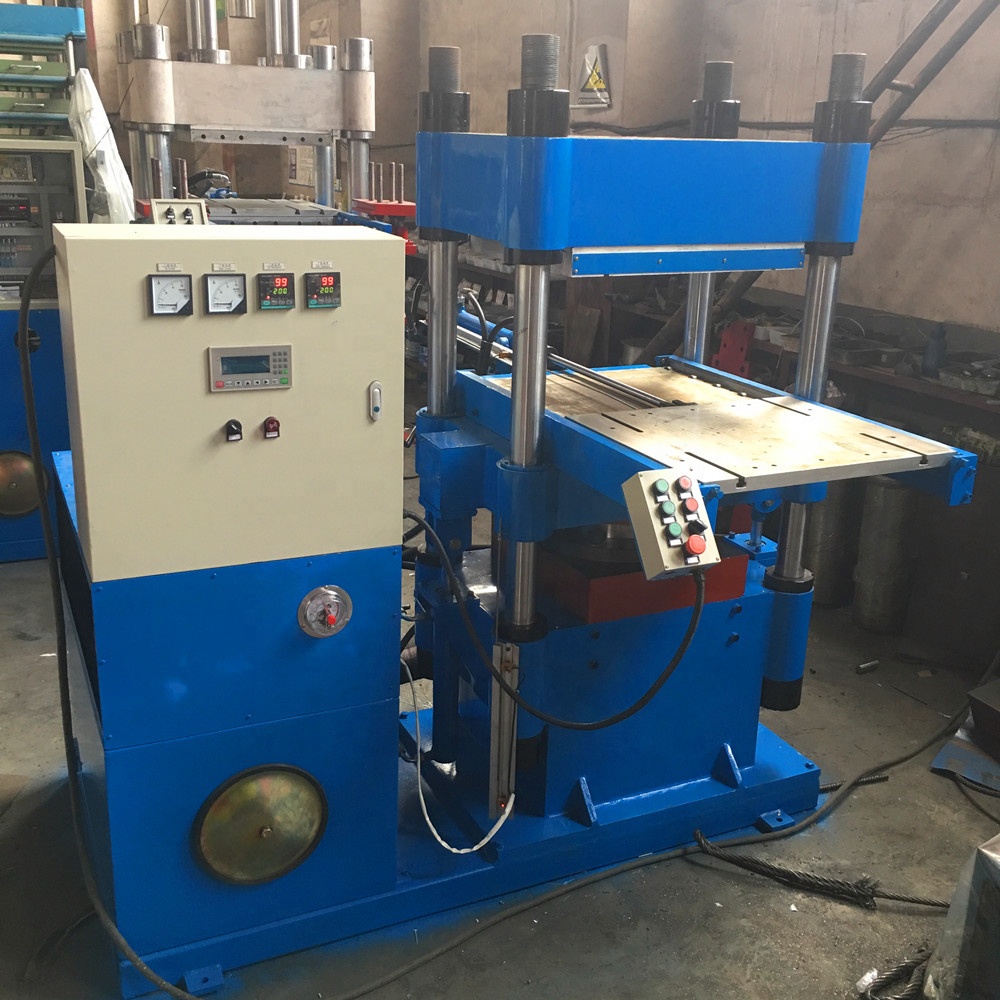

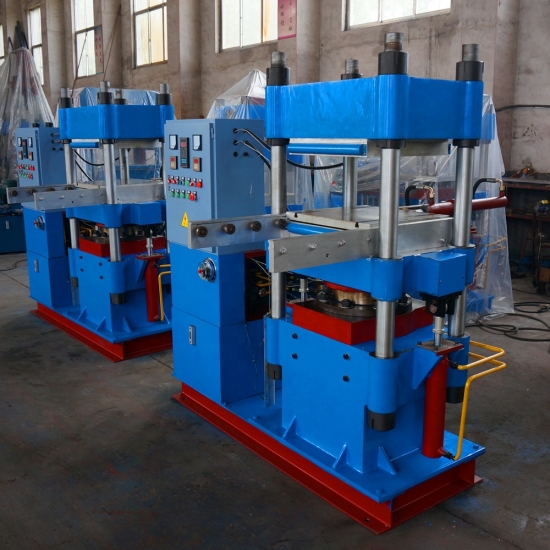

Product Images
