High quality 1.5L scale lab spray dryer equipment
Lab scale spray dryer is suitable for the production of in universities, research institutes and food and pharmaceutical chemical enterprises.
Xiamen Ollital Shines at the 2025 Biological Fermentation Exhibition, with cutting-edge fermentation tanks attracting attention At the just concluded
In microbial testing, food safety analysis, pharmaceutical research and development, and environmental monitoring, the quality of sample pretreatment
In pharmaceuticals, scientific research, biotechnology, food testing and medical experiments, sterilization is the first checkpoint to ensure reliable
In many high-precision fields such as experiments, materials, pharmaceuticals, nanotechnology and environmental protection, ultrasonic technology prov
Lead Time:
1-3 daysModel Number:
OLT-406Compliance:
CE CertifiedMinimum Order Quantity:
1Mixing method:
LCDWarranty:
1 year
Technical parameter
| Model | OLT-406A |
OLT-406B |
OLT-406C |
OLT-407 |
| Control mode | Manual Type | Electric Type | PLC Control | Vacuum |
| Pressure (T) | 10/20/30/50/75/100 tons or customized | |||
| Temperature range | Room temperature -300 ℃ | |||
| Size of Working board (mm) | 300*300mm or customized | |||
| Volume (mm) | 750*400*800mm | 1000*600*1600mm | 1000*600*1600mm | 1100*600*1700mm |
| Weight (kg) | 210 | 750 | 750 | 800 |
| Power supply | 3∮,AC380 | |||
|
Special models can be designed according to customers' requirements |
||||
Main Features
1. Controlled by PC or manual, performance reliable, high degree of automation. Can automatically identify the wrong command,so avoid the accidence which caused by wrong operation.
2. The preprogrammed process can be locked, the operator can not change without authorization, so that guarantee the quality of pressed product.
3. With the function of timing open mold, automatically exhaust and reinforcing pressure,etc.
4. Optional: Manual operating or Automatic operating mode
5. Electrical heating pressing machine apply digital display (or pointed type) to control temperature, and control and display the heating plate temperature.
Application
It mainly used in producing vulcanizing parallel adhesive type, such as conveyor belt,driving belt, and pressing rubber products, foamed plastic,thermosetting plastic(bakelite) and other plastic products. It also suitable for O ring,the key products such as cell phone, keyboard,remote-control,sealing washer such as pressure cooker, electric cooker, mechanical accessories for household, food, health and medical treatment. At the same time,this machine alsocan be used in complex silicone and rubber fittings production and process, such as nipple,medical supplies, health product, artware, toy seal, electroconductive rubber, automotive rubber parts, industrial rubber parts,medical silicone product, sport equipment, all kinds of vessels, multilayer product and so on.

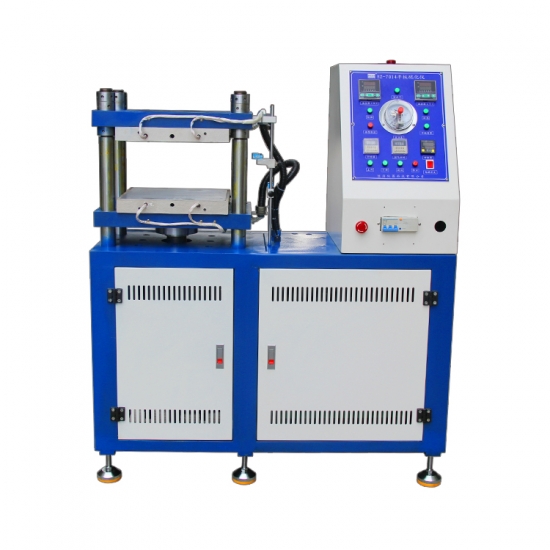

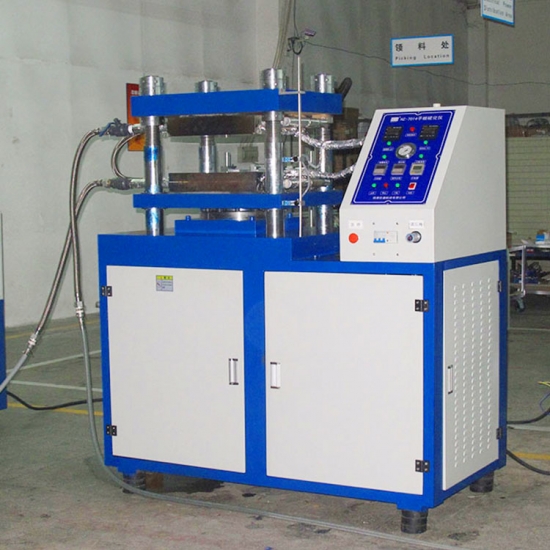

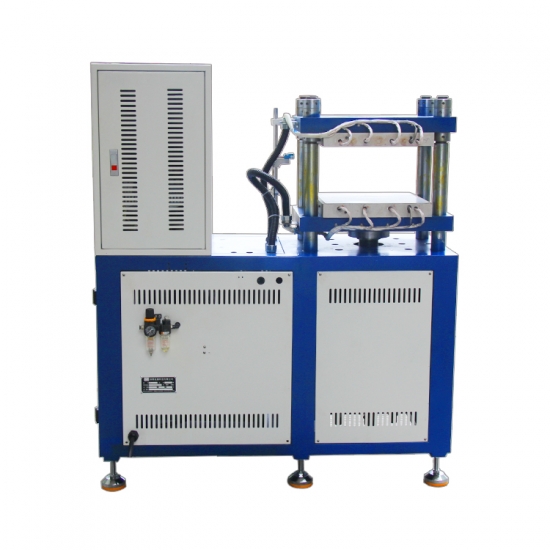

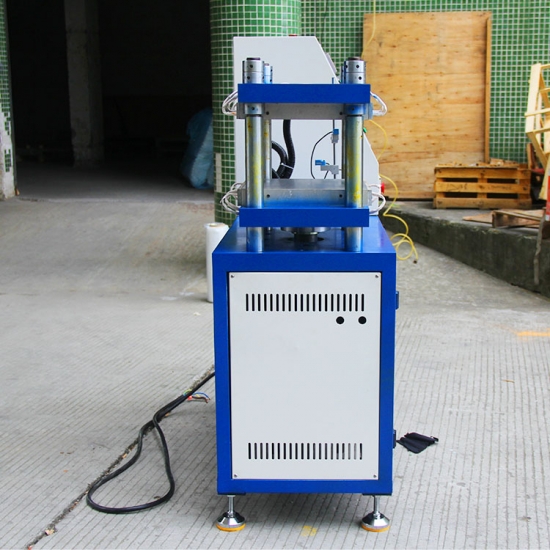

Detail Image

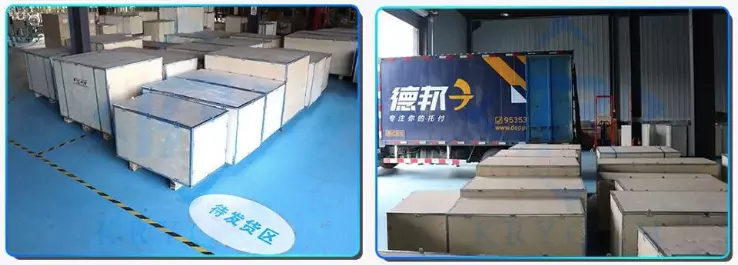

Packing & Shipping
