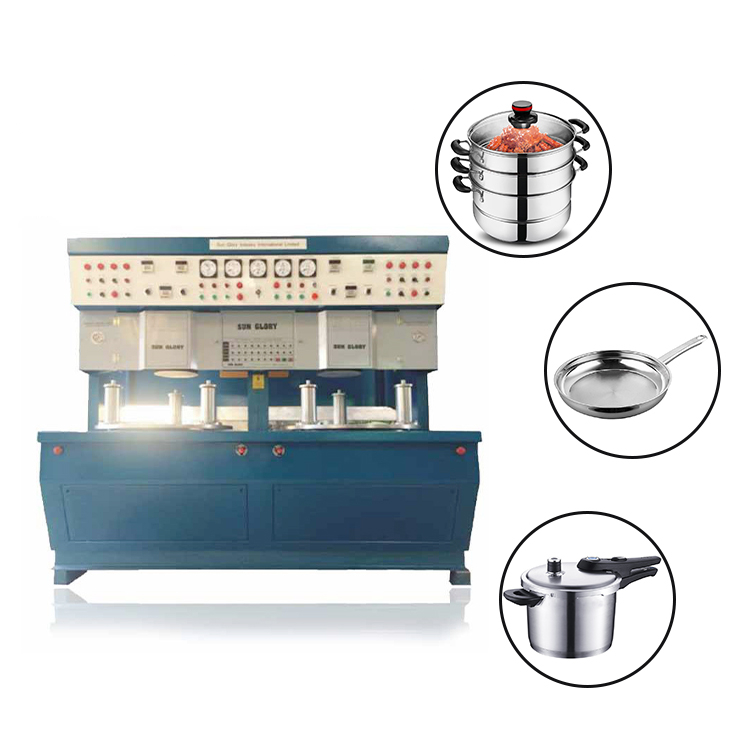

Cookware Compound Bottom Induction Brazing Welding Machine

Advantages:

1. Electron tube mode, high voltage resistance ability

a. Heat evenly and stably.

b. Not easy to spark, high resistance ability for high voltage ignition during brazing.

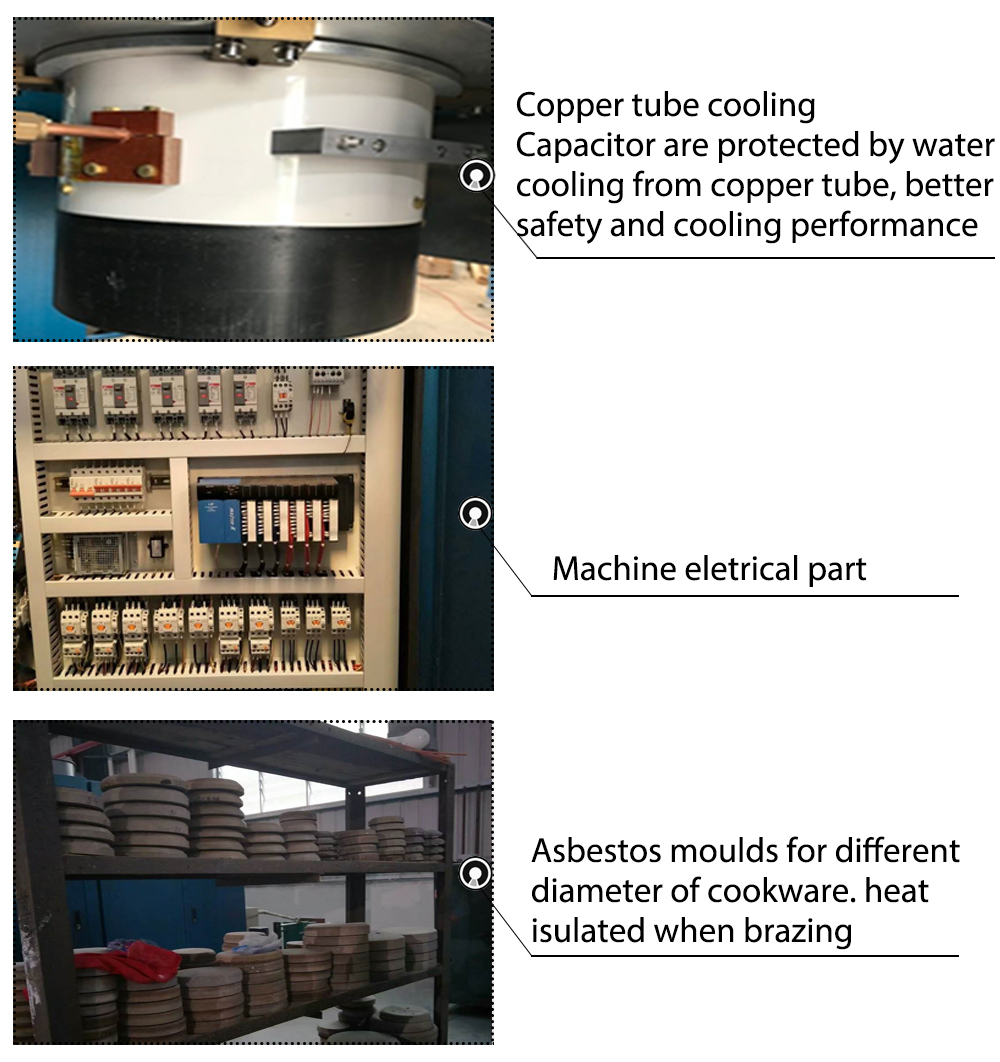

2. Copper tube cooling

Capacitors are protected by water cooling from copper tube, better safety and cooling performance .

3. Separate water cooling for internal part and external part

To protect the important components from impurities and keep longer life, important components

of machine internal part are cooled by distilled water, we call that internal recycling. Distilled water

and other machine parts are cooled by normal water, it called external recycling.

4. Safety protection

a. There are sensors on the cabinet door of oscillation section and inner electric cabinet

power of the whole machine will be cut off and machine will stop running if machine door is

opened during machine working. It can protect the worker from getting injured because of the

wrong operation. Also prevent the machine from being damaged because of special situation.

b. Inner water cooling performance will be affected if water pressure is not enough and water

level of outer connection is too low. Water temperature will become too high, then high voltage

can not work. There is an indicator light on the machine panel will flash and remind the operators.

5. Components brand

Machine components are of reliable quality and superior performance to extend the machine life,

ensure the stable working and improve finished products quality. We use brands from Japan,

Germany, South Korea.
