Lead Time:
3-5 daysModel Number:
OLT-SD-10LCompliance:
CE CertifiedMinimum Order Quantity:
1Operation method:
PLC controlMixing method:
Touch ScreenCapacity:
10L/hWarranty:

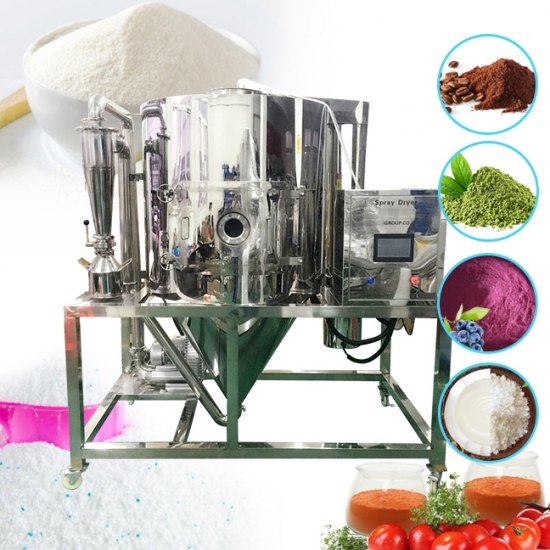

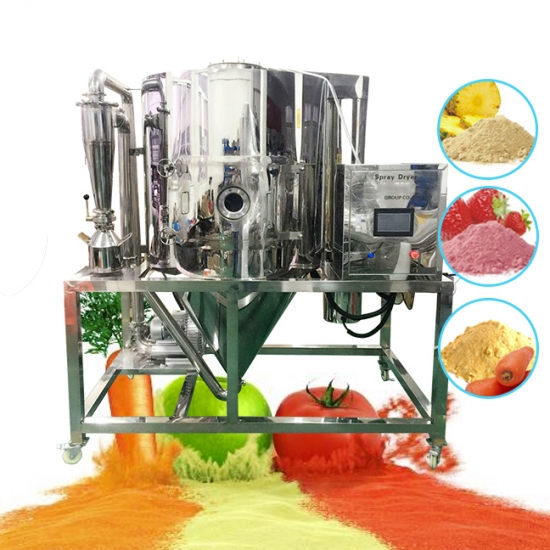

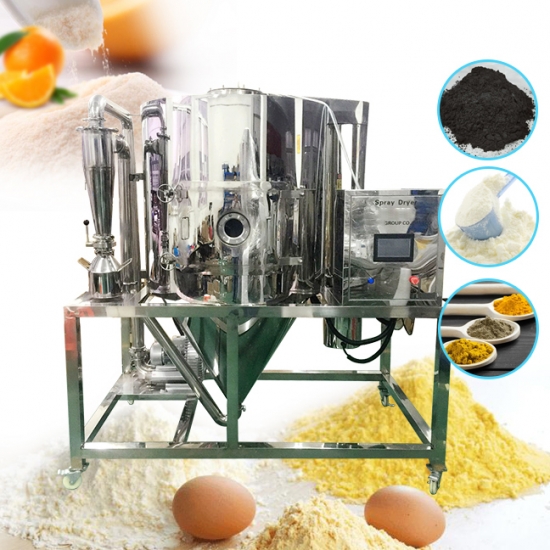

1 yearspray dryer is a kind of continuous atmospheric dryer.Use pneumatic or electric atomization device to make liquid high-speed centrifugal spray as fog droplet, make these fog droplet contact with the hot air in the drying chamber and instantaneous drying.
Parameters
|
Name |
OLT-SD10L |
|
Inlet air temperature control |
≤30-300 °C. |
|
Outlet air temperature control |
<30 ~ 150 °C. |
|
Maximum evaporation of water |
200-10L/h. |
|
Centrifugal spray head transmission form |
Electric. |
|
Speed |
40,000 rpm |
|
Spray disc diameter |
80mm |
|
Heat source |
Electricity |
|
Electric heating maximum power |
18kw |
|
Total power |
22kw |
|
Dimensions L*W*H(mm) |
2500*1600*2800 |
|
Dry powder recovery |
≥98% |
Configuration List
| S.N. | Name | Specification | Material | Quantity |
| 1 | OLT-SD10L spray dryer | 2500*1600*2800 | Stainless steel | 1 |
| 2 | Tower body | Φ1400*2600 | Stainless steel | 1 |
| 3 | Centrifugal nozzle atomizer | Φ80 10kg per hour | Stainless steel | 1 |
| 4 | Air compressor / vibrating air hammer | Matching | Stainless steel | 2 |
| 5 | Cyclone separator | Φ300 | Stainless steel | 1 |
| 6 | Peristaltic pump | 30-100L/h-0.55kw | Stainless steel | 1 |
| 7 | Induced draft fan | 4kw | Q235A steel | 1 |
| 8 | Electric heaters | 18kw | Stainless steel | 1 |
| 9 | air filter | Matching | Sainless steel | 1 |
| 10 | Electrical control box | PLC | Stainless steel | 1 |
| 11 | Inlet and out wind temperature detector | Matching | Stainless steel | 2 |
| 12 | Air duct | Matching | Stainless steel | 1 |
| 13 | Receiving cylinder | 10L | stainless steel | 1 |
| 14 | Cylinder insulation | 50mm | Insulation cotton | |
| 15 | support | 60*60mm | Stainless steel | 1 |
Air through filtering and heating, enter the hot air distributor which is at the top of spray dryer, hot air spiraling evenly into the drying chamber. Liquid through the high-speed centrifugal automizer which is at the top of drying chamber, (rotating) centrifugal spray into tiny fog droplet, then contact with the hot air flow, drying finish product in a very short time and whereabouts. Finished product output continuously between the drying tower bottom and cyclone separator, exhaust through dust catcher emptying by induced draft fan.
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
Stainless steel spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying
