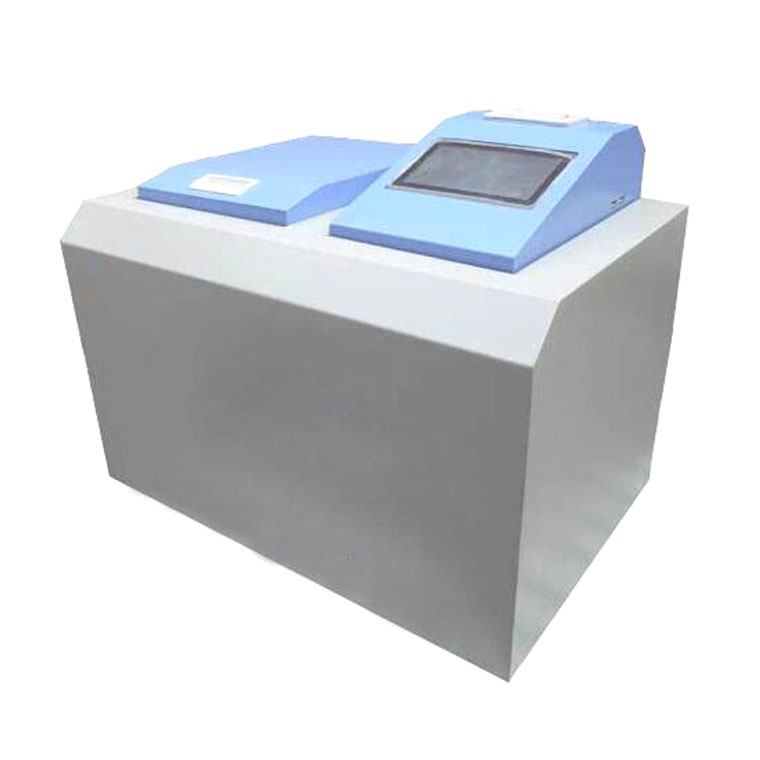

Lab Coal Calorific Value Testing Equipment Automatic Oxygen Bomb Calorimeter

  • Item NO.:

    ZDHW-HN5000C
  • Lead Time:

    7days
  • Shipping Port:

    XiaMen
  • Product Details

Lab Portable Digital Isothermal Oxygen Cement Charcoal Bomb Calorimeter Price


Lab Coal Calorific Value Testing Equipment Automatic Oxygen Bomb Calorimeter

Model
ZDHW-HN5000C
Heat capacity
about 10600J/K
External water tank capacity
about 40L
Inner water tank capacity
about 2.1L
Temperature range
0-45 ° C
Temperature resolution
0.0001K
Precision
0.1%
Power
100W
Dimensions(mm)
600*700*600
Machine weight
55KG
Power supply voltage
AC108V-240V
Single calorie measurement time
about 20 minutes

Automatic Oxygen Bomb Calorimeter Factory Price

In the calorimetric system of the calorimeter, in addition to the heat absorbed by the water, the oxygen bomb, the inner cylinder, the thermometer and the agitator absorb heat, and the absorption conditions are different. Various factors are complicated, and it is impossible to rely on simple mathematics. Calculated, only the reference value of known calorific value, such as benzoic acid, can be used to actually calibrate the heat absorbed by the calorimeter system for every 1 °C increase, that is, the heat capacity of the calorimeter.

Lab Coal Calorific Value Testing Equipment Automatic Oxygen Bomb Calorimeter

1. Three test modes: fast, normal and accurate.

2. Large storage capacity: 1000 experimental results can be stored in the data processing.

3, a variety of independent and flexible operation methods: support touch operation, button operation and mouse operation.

4. Curve tracking function: The whole process curve of the experimental process tracks the temperature rise record.

5, real-time cooling correction, the environment temperature requirements are relaxed.

6, a variety of printing methods: can be set to prohibit printing, simple printing, standard printing and detailed printing.

7. The embedded ARM is the main control chip, equipped with 7-inch true color touch LCD screen and mouse device. The experiment is simpler and more flexible. The direct human-computer interaction mode is more convenient to use.

8, with the computer's powerful data processing capabilities and strong scalability, historical data query, printing is simple and easy.

9. The experimental process of water injection, drainage, stirring, ignition, temperature measurement, calculation, calibration and printing is fully automatic.

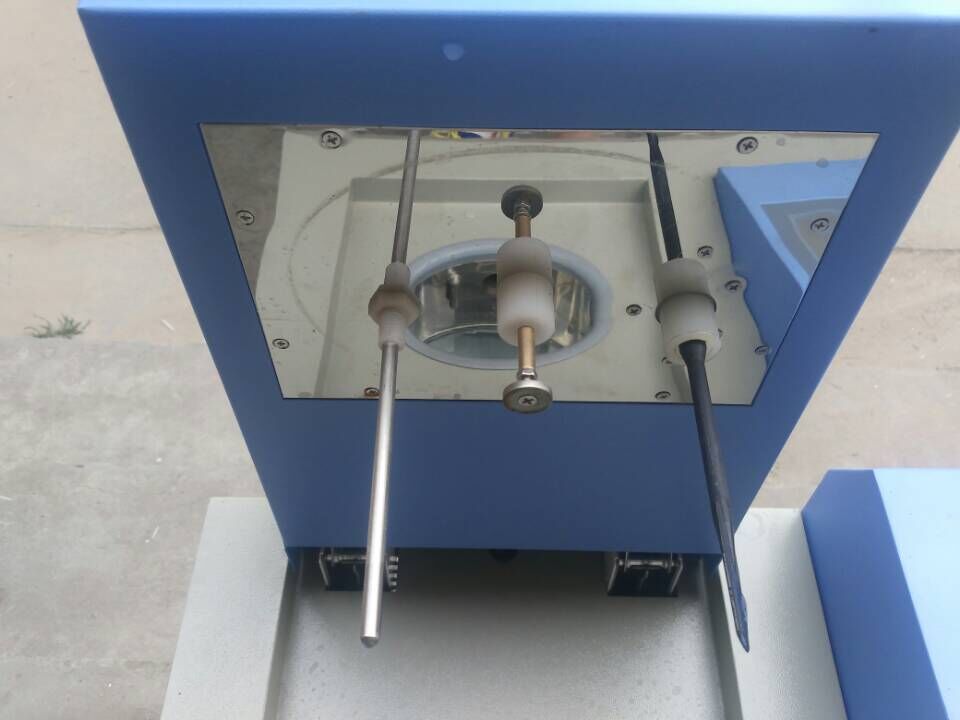

  Imported motor stirring

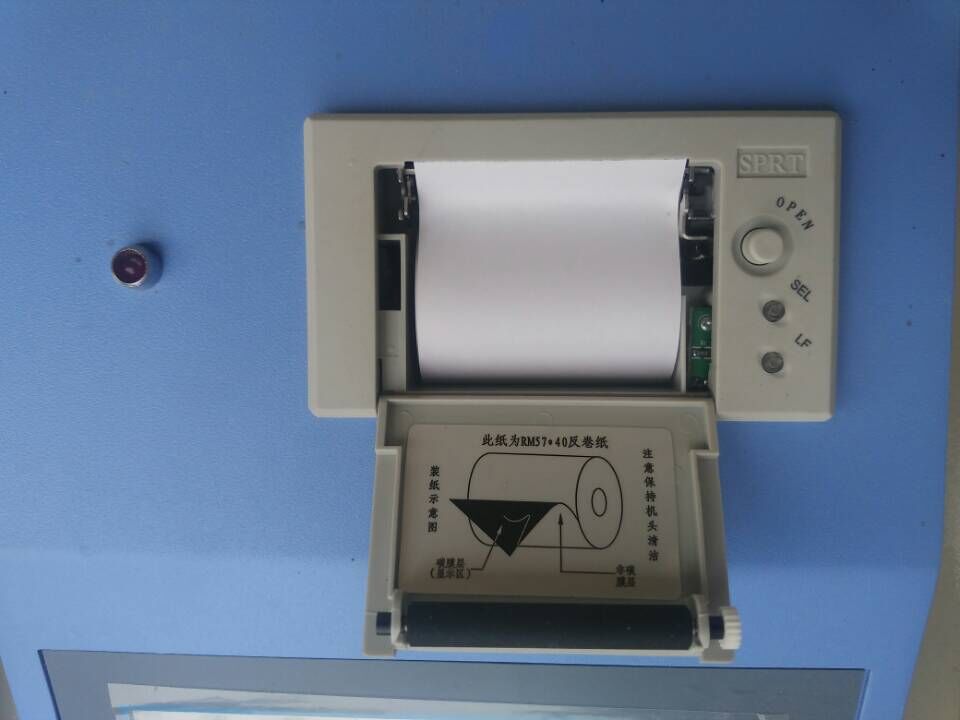

Test result printing

Lab Coal Calorific Value Testing Equipment Automatic Oxygen Bomb Calorimeter

The automatic calorimeter is mainly used for the determination of calorific value of combustibles in thermal detection institutions and coal standard analysis, and is widely used in various industries such as coal detection, petroleum, chemical, wood, scientific research, food and so on.

Lab Coal Calorific Value Testing Equipment Automatic Oxygen Bomb Calorimeter

Packing and Shipping

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
